Flexible Screen Series
Flexible LED display module, the clever invention and design comes from the concept of soft light strips combined with high
construction efficiency; flexible LED display module can be spliced with curved screens, cylindrical, curved surfaces and other display screens
as needed, which is a technological improvement with outstanding characteristics and display progress.
Bending angle≥140°
The flexible screen is easy to bend, and can realize a variety of installation methods. It is less restricted by the installation area,
and can realize the customization of various exquisite ideas.
Deep U-shaped silicone bottom shell design
Make the unit board softer and support large-angle display
SELECT CELL BOARD
Each unit board is selected from raw material to product formation
Haveundegonecountlessesstoensurethateachldisplayisaqualiplay
Ultra Thin & Extremely Light
Our flexible led module is only 90g for one component. The ultra-slim body makes the whole screen beautiful and attractive.
Cost-saving design for installation & shipping with our unique flexible led screen wall
Optional cabinet solution. Available for hanging installation
Easy Installation & Maintenance
Fast & easy installation with our unique seamless splicing technology.
Front maintenance is available with 12-18 magnetics per flexible led display panel.
Tailored Design & Solution
Module with small unit and flexbie design to do more complicated shapes for the video show.

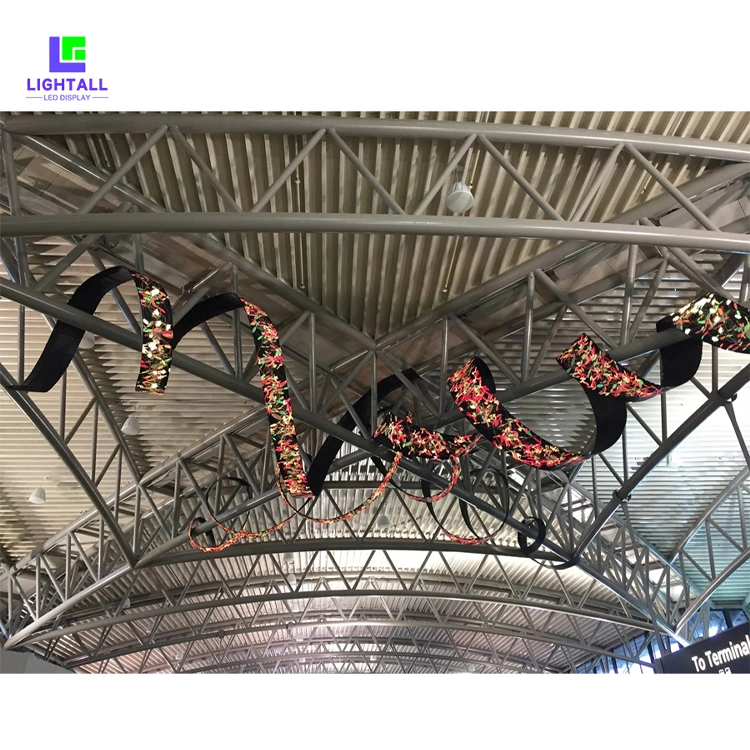

Creative design & solution for cylinder-shape, S-shape, wave-shape, sphere shape etc.
This soft led display can be based on customer needs, design scrolling, bend, and swing a variety of effects. No cabinet metal frame, drastically deducting the screen weight
parameter
| Model |
P2 |
P2.5 |
P3 |
P4 |
| Pixel Pitch |
2mm |
2.5mm |
3mm |
4mm |
| LED Type |
SMD1010 |
SMD1010 |
SMD2020 |
SMD2020 |
| Module Size |
240×120mm |
240×120mm |
240×120mm |
256×128mm |
| Module Resolution |
128x64 Pixel |
96x48 Pixel |
80x40 Pixel |
64x32 Pixel |
| Pixel Density |
250,000 |
160,000 |
111,111 |
62,500 |
| Scan |
1/30 Scan |
1/24 Scan |
1/20 Scan |
1/16 Scan |
| Pixel Type |
1R1G1B |
| Brightness |
1500nit |
| View Angle |
120° (H)/120°(V) |
| Refresh Rate |
≥1920Hz |
| Input Voltage |
AC100-240V |
| Grey Level |
16 Bit |
| MTBF |
≥ 10,000 hs |
| Operating Temperature |
-30 ²℃~+70°℃ |
| Operationg humidity |
10%~75% |
APPLICATION
