LIGHTALL has developed to be a professional manufacturer and reliable supplier of high-quality products. Throughout the whole production process, we strictly implement the ISO quality management system control. Since established, we always adhere to independent innovation, scientific management, and continuous improvement, and provide high-quality services to meet and even exceed customers' requirements. We guarantee our new product outdoor led display board price will bring you a lot of benefits. We are always standby to receive your inquiry. outdoor led display board price Today, LIGHTALL ranks the top as a professional and experienced supplier in the industry. We can design, develop, manufacture, and sell different series of products on our own combining the efforts and wisdom of all our staff. Also, we are responsible for offering a wide range of services for customers including technical support and prompt Q&A services. You may discover more about our new product outdoor led display board price and our company by directly contacting us.For most people, this product is easy to install and operate. It can fit the device flexibly by adjusting its installing position.

Product Detail

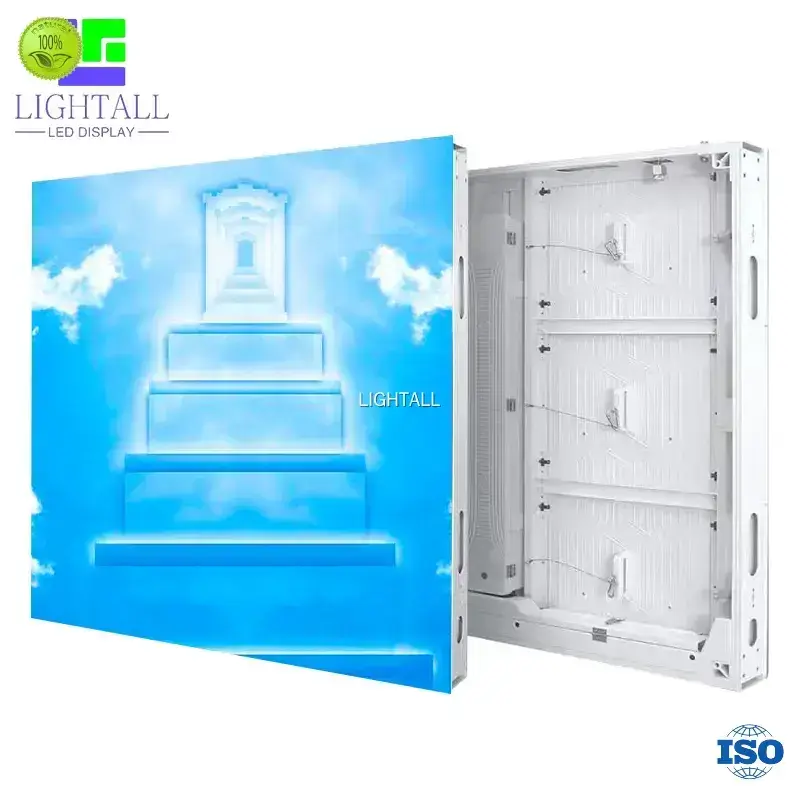

LTHG Series

Outdoor Full Color LED Display (960x960mm) Specification

Common cathode partial voltage power supply, low power consumption, low attenuation temperature riselower 20C, more than 50% energy saving, more than 3 years warranty, brightness 8000-10000cd.

Ultra-Lightweight and Thinness

A standard cabinet is comprised of 6 modules, material is aluminum profile cabinet,itsweight is just 26KG. To compare with lron cabinet (35KG) and die-casting aluminum cabinet (28.5KG), the G series of LED display has superior structural design, to make thewhole of display be more light and thinness.

lt is ultra-low temperature rise, low decay, it can work normally under the temperatureof 80 degree at most, and work normally under minus 40 degree at least, moreover, it can work on seaside normally in the long run, which has strong ability for salt sprayresistance.

Waterproof IP68

Both cabinet and module are waterproof. Protect led display from rain, snow anddust in all weather.

Area chart

Big Visual Angle, High Contrast Ratio

lt is to adopt 3535LED chip, primary color is Red, Green and Blue, nice conformity, contrastratio can be up to 5000:1, visual angle can be up to above 140°, high reliability, long lifespan.

Appearance Structure

New added vent valve

For the G series of LED display, a vent valve has added in the bottomof power box, it can adjust inner gas pressure, recoil temperature riseand balance inner environment.

Structural Hard Link, Wireless Design

The product structure is to adopt hard link, wireless design,its appearance is tidy andbeautiful.

Aluminum Profile Cabinet, Lightweight, Safety and Reliability,No Distortion

LED display is to adopt aluminum profile cabinet, the weight of singlecabineis just 26KG, display module is die-casting aluminum material, it is fire

resistance, nodistortion even it is under the high environmental temperature

Parameters

Parameters

LED	LED type
Red(R)	SMD 2727
Green ( G)
Blue (B)
lteme	Parameter	Parameter	Parameter
Parameter:	8mm	6.67mm	10mm
Pixe1 Configuration	1R1G1B	1R1G1B	1R1G1B
LED Lamp	Full color	Full color	Full color
Densitye	15625 Dot/sqm	22477 Dot/sqm	10000 Dot/sqm
Module Sizee	320*320mm	320*320mm	320*320mm
Module Pixel	32*32-2304 Pixel	48*48-2304 Pixel	32*32-2304 Pixel
Module Thicknesse	17mm	17mm	17mm
Module Weight	1550g	1550g	1550g
Module Power	≤70.98w	≤70.98w	≤70.98w
Drive Voltagee	DC4.2V	DC4.2V	DC4.2V
Drive Current	16.9A	16.9A	16.9A
Module Porte	HUB-75	HUB-75	HUB-75
Screen Parameter
Item	Parameter
Standard Cabinet	960x960mm
Brightness/Adjustment	7500cd/m2 adjustable, Level 16-Automatic / Leve1 100-Manua1operation
View Angle	≥140°( Horizonta1), ≥120° ( vertica1)
Best View Distance	10-100 M
Grey Scale	Within 65536 Step
Color Temperature	11944K
Frame Frequency	≥60Hz
Refresh Frequency	≥780Hz
Input SignalContro1 Method	Video, VGA/Computer control, Synchronous Video, Rea1-timedisplaye
Scan Mode	1/6 Scan
Drive IC	SUM2028
Module Qty/sqm	9.7
Display Color	16777216 colors
Continuous Working Time	>24 《 Hrs )
Screen Lifespan	>100.000 ( Hrs)
MTBF	>5000 ( Hrs )
Max. power consumption	690w/m2
Ave. power consumption	230w/m2
Out of control pixel rate	<3/10,000(discrete distribution)
Control Distance	100M(Ethernet)500M( Multi-fiber )10KM( Sigle-fiber )
Flatness	Screen Surface<0.5mm,Pixe1 Pitch≤0.3mm
Operation Temperature	-10C~-+50C
Operation Humidity	10%~98%RH
Storage Temperature	-40°C+85°C
Software Connection	Standard Computer Connection,Compatiable With Windows、Unix、Novell
Protection System	Over-temperature/Over-1oad/power/Image compensation/Nonlinearcorrection
Working Voltage	200~-240 v
Dielectric Strength	50HZ/1500v《AC RMS)/1min
Temperature Rise	Metal≤40K, Insulation≤65K,After Heat Balance
IP Degree	IP67
Computer display mode	1024*768
Media Player	LED Professiona1 Media Player

---
