LIGHTALL- Focus On LED Screen Field For More Than 10 Years.
Custom outdoor led screen rental inquire now Manufacturer | LIGHTALL
Guided by scientific and technological innovation, LIGHTALL always keeps outward-oriented and sticks to the positive development on the basis of technological innovation. outdoor led screen rental LIGHTALL have a group of service professionals who are responsible for answering questions raised by customers through the Internet or phone, tracking the logistics status, and helping customers solve any problem. Whether you'd like to get more info on what, why and how we do, try our new product - newly outdoor led screen rental inquire now, or would like to partner up, we'd love to hear from you.The product has excellent heat dissipation effect. The surface area is maximized to contact with the cooling medium surrounding it, such as the air and the cooling liquid.
Give you better and more effective publicity effect.
Thin structure\ Good heat dissipation\ easy installation\ High gray level
Treat the customer base
Keep improving to make products
High precision die casting aluminum alloy housing
7.3/11Kgs per panel
Indoor: P1.9/P2.6/P2.9/P3.9/P4.8
Outdoor: P2.6/P2.9/P3.9/P4.8
Safety protection design
high rlibility and Long life
Box glued handle color: ■ ■ or customized
Protect the led lamp not to be damaged.
Easy for operation.
Both cabinet and module are waterproof.
Protect led display from rain, snow and
dust in all weather
Innovative lock system with + 10 to -10 curve degrees options,
to do the creative screen design.

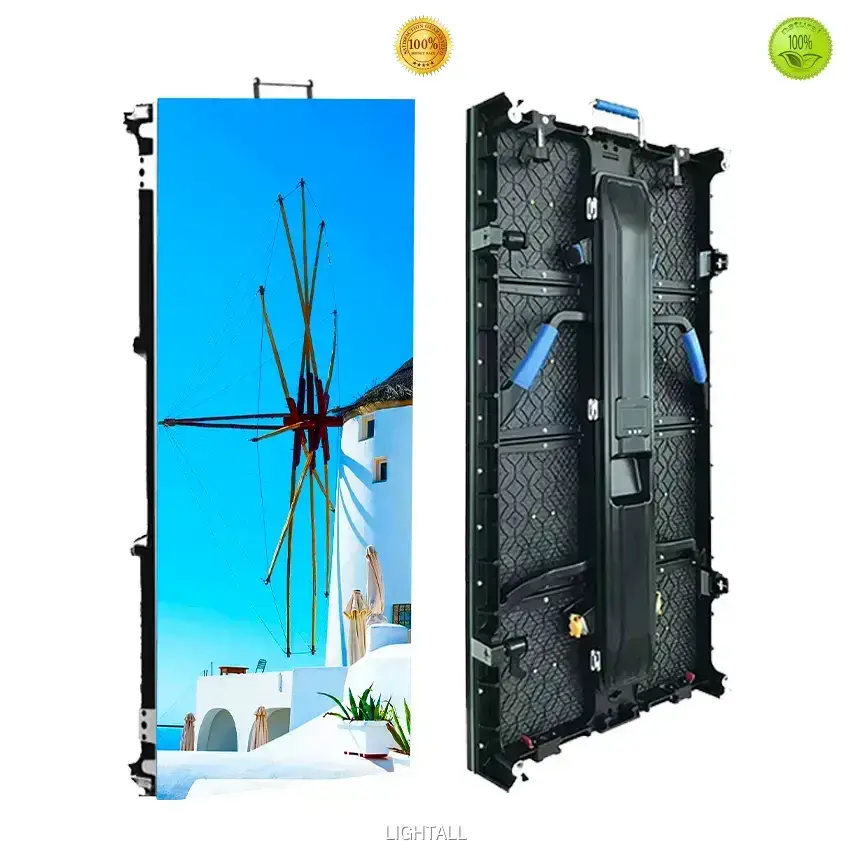

Product detail
Front Maintenance Design
*Vacuum tool is recommend for maintenance.
500x500mm and 500x 1000mm cabinets can be easily
spliced up and down, greatly satisfying different needs
of assembling.
PERFECT DISPLAY PERFORMANCE
High brightness, high refresh rate,high gray scale
STACKING AND HANGING
SYSTEM OPTIONAL
APPLICATION
Parameters
| Item | P1.953 | P2.604 | P2.976 | P3.91 | P4.81 |
| Pixel pitch | 1.953mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Cabinet size(mm) | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 |
| Cabinet resolution(dots) | 256*256/256*512 | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 104*104/104*208 |
| Best view distance | ≥1.5m | ≥2m | ≥2.5m | ≥3m | ≥4m |
| Pixel Density | 262144dots/㎡ | 147456dots/㎡ | 112896dots/㎡ | 65410dots/㎡ | 43264dots/㎡ |
| Brightness | Indoor ≥1200cd, Outdoor ≥5500cd | ||||
| Waterproof level | IP65 | ||||
| Refresh Rate | 3840Hz | ||||
| Warranty | 3 Years | ||||
| Life Span | ≧100000hours | ||||
| Working Voltage | 100-240V, 60Hz | ||||
| Humidity-operating | 10%～90% | ||||
| Operating temperature | -30ºC~65ºC | ||||
Established in 2013, Shenzhen Lightall Optoelectronic Technology Co. Ltd. Is a Professional LED Display Manufacturer, Who Is Integrated in R&d, Manufacture, Marketing and After-Sale Service.
