LIGHTALL- Focus On LED Screen Field For More Than 10 Years.

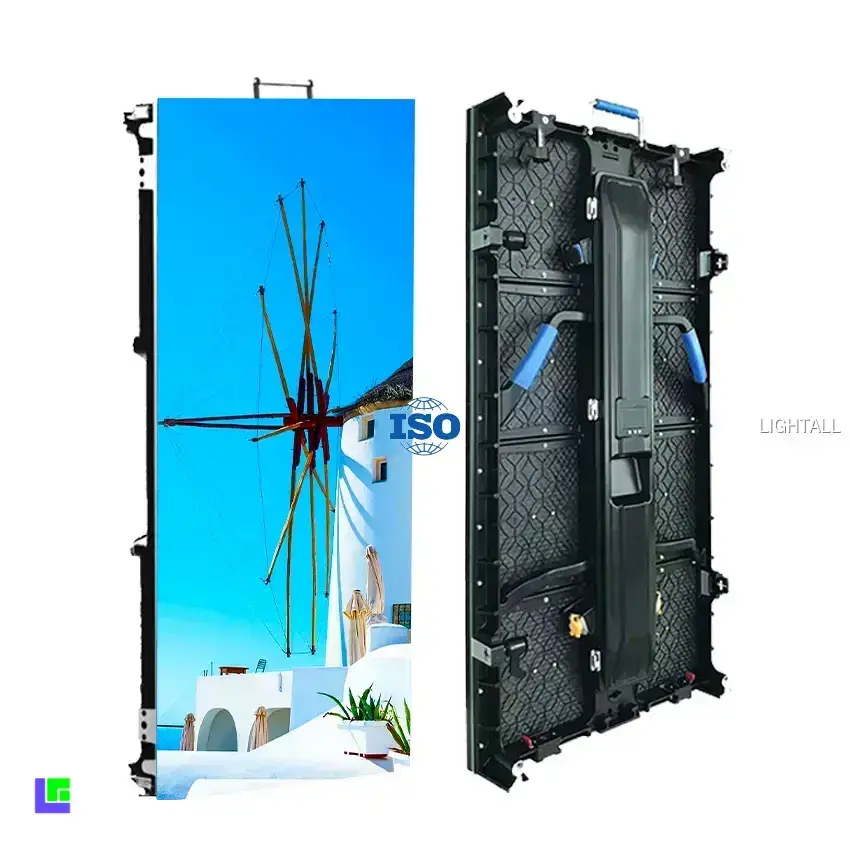

industry-leading p5 outdoor rental led display factory | LIGHTALL
Always striving toward excellence, LIGHTALL has developed to be a market-driven and customer-oriented enterprise. We focus on strengthening the capabilities of scientific research and completing service businesses. We have set up a customer service department to better provide customers with prompt services including order tracking notice. p5 outdoor rental led display Today, LIGHTALL ranks the top as a professional and experienced supplier in the industry. We can design, develop, manufacture, and sell different series of products on our own combining the efforts and wisdom of all our staff. Also, we are responsible for offering a wide range of services for customers including technical support and prompt Q&A services. You may discover more about our new product p5 outdoor rental led display and our company by directly contacting us.The design of LIGHTALL is the outcome of a professional thermal solution. Influencing factors such as air velocity, choice of dissipation materials, and finish are taken into consideration by the designers.
Give you better and more effective publicity effect.
Thin structure\ Good heat dissipation\ easy installation\ High gray level
Treat the customer base
Keep improving to make products
High precision die casting aluminum alloy housing
7.3/11Kgs per panel
Indoor: P1.9/P2.6/P2.9/P3.9/P4.8
Outdoor: P2.6/P2.9/P3.9/P4.8
Safety protection design
high rlibility and Long life
Box glued handle color: ■ ■ or customized
Protect the led lamp not to be damaged.
Easy for operation.
Both cabinet and module are waterproof.
Protect led display from rain, snow and
dust in all weather
Innovative lock system with + 10 to -10 curve degrees options,
to do the creative screen design.
Product detail
Front Maintenance Design
*Vacuum tool is recommend for maintenance.
500x500mm and 500x 1000mm cabinets can be easily
spliced up and down, greatly satisfying different needs
of assembling.
PERFECT DISPLAY PERFORMANCE
High brightness, high refresh rate,high gray scale
STACKING AND HANGING
SYSTEM OPTIONAL
APPLICATION
Parameters
| Item | P1.953 | P2.604 | P2.976 | P3.91 | P4.81 |
| Pixel pitch | 1.953mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Cabinet size(mm) | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 |
| Cabinet resolution(dots) | 256*256/256*512 | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 104*104/104*208 |
| Best view distance | ≥1.5m | ≥2m | ≥2.5m | ≥3m | ≥4m |
| Pixel Density | 262144dots/㎡ | 147456dots/㎡ | 112896dots/㎡ | 65410dots/㎡ | 43264dots/㎡ |
| Brightness | Indoor ≥1200cd, Outdoor ≥5500cd | ||||
| Waterproof level | IP65 | ||||
| Refresh Rate | 3840Hz | ||||
| Warranty | 3 Years | ||||
| Life Span | ≧100000hours | ||||
| Working Voltage | 100-240V, 60Hz | ||||
| Humidity-operating | 10%～90% | ||||
| Operating temperature | -30ºC~65ºC | ||||
Established in 2013, Shenzhen Lightall Optoelectronic Technology Co. Ltd. Is a Professional LED Display Manufacturer, Who Is Integrated in R&d, Manufacture, Marketing and After-Sale Service.
