leading curved led video wall supplier | LIGHTALL

Relying on advanced technology, excellent production capabilities, and perfect service, LIGHTALL takes the lead in the industry now and spreads our LIGHTALL all over the world. Together with our products, our services are also supplied to be the highest-level. curved led video wall We promise that we provide every customer with high-quality products including curved led video wall and comprehensive services. If you want to know more details, we are glad to tell you.The product is characterized by its excellent heat dispersion capacity. Its material has many desirable properties for thermally efficient and durable heat exchangers.

Product Detail

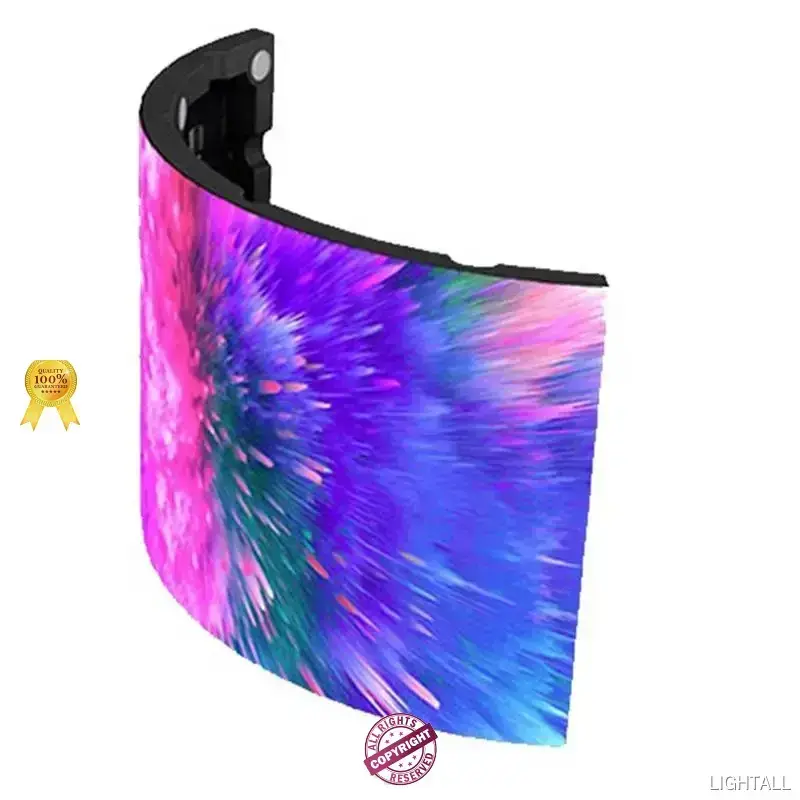

1. Lightall Curved LED Display

New design, add silicone frame and mask, Embedded magnet, reduce stitching gap. Soft, thin,strong magnets column,patent flexible led module.

2.Ultra Thin And Light

Super light slim: Thickness only 8mm, easy for installation,save labor costs and shipping costs.
Easy Installation: Greatly saves the handling space and cost.
Extremely flexible:Could be made as any creative shapes for any installation site.
Stable: Using high quality raw materials only,showing the superior visual effect.

3.High Flexibility

silicone frame with embedded magent design, easy to assemble and disassemble for front service maintenance

4.Install

The module is directly spliced, easy to operate, magnetic assembly design, quick installation or replacement.
Can be realized according to needs, with or without box design, greatly reducing the weight of the screen.
Strong magnets are attracted and fixed to the surface of any shape of iron structure.

5.High Flexibility

Flexible led screen can be any designed forrolled, bend and swing

6.Customized LED Screen

Curved led screen has range of sizes to meet your display needs,such as Christmas tree led display,cylindrical led screen, wavy led wall,etc

Parameters

Products series	P2	P2.5	P3	P4	P5
Pixel pitch	2mm	2.5mm	3mm	4mm	5mm
Module size	256*128mm	240*120mm	240*120mm	256*128mm	320*160mm
Module resolution	128*64dots	96*48dots	80*40dots	64*32dots	64*32dots
Brightness	≧700CD	≧1000CD	≧1000CD	≧1000CD	≧1000CD
Best view distance	≧2m	≧2m	≧3m	≧4m	≧5m
Pixel Density	250000dots/㎡	160000dots/㎡	111111dots/㎡	62500dots/㎡	40000dots/㎡
Operating Temperature	-20℃~+60℃
Operating Humidity	10~90%RH
Warranty	3 years
Life Span	≧100000hours

---
