LIGHTALL- Focus On LED Screen Field For More Than 10 Years.
leading solutions led screen hire one stop solution | LIGHTALL
After years of solid and rapid development, LIGHTALL has grown into one of the most professional and influential enterprises in China. led screen hire We promise that we provide every customer with high-quality products including led screen hire and comprehensive services. If you want to know more details, we are glad to tell you.It will not prone to deform under high temperature. Its metal structure is strong enough and the materials used have excellent creeping strength.

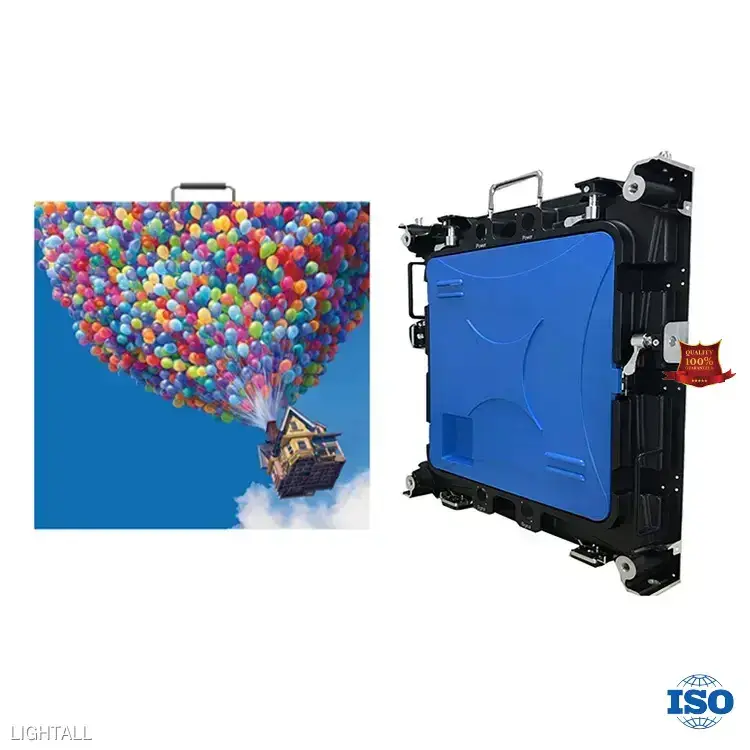

Panel measure: 512mm(W)*512mm(H)*85(T)mm
Panel thickness: Die casting aluminum cabinet, high strength, high tenacity,high precision, not easy to deform, thickness only for 85mm.
Weight: 8.5kg/cabinet,one person can carry,saving time and effort.
Flat: flatness error ≦0.2mm, effectively eliminate mosaic phenomenon.
Fast Installation: cabinet use fast lock, two seconds locked adjacent cabinets, air plug wiring connect more fast.
Easy maintenance: magnetic modular design, any position breakdown can easy to front service and install ation.
Compatibility design: indoor and outdoor use, allow various pixel pitch.
High gray, high refresh, gray 13 bit, refresh rate 3840Hz.
Perfect LED Display
Perfor mance
Corner Protection For LED Panel
There are four protectionequipments for LEDcabinet corners,
protectthe LED from damageduring transportationand installation
LED Cabinet Size
Haning & Stacking lnstallation
Oudoor Application
Indoor Application
Parameters
| Products series | P2 | P4 | P8 |
| Pixel pitch | 2mm | 4mm | 8mm |
| Cabinet size | 512x512x85mm | 512x512x85mm | 512x512x85mm |
| Cabinet resolution | 256x256dots | 128x128dots | 64x64dots |
| Best view distance | ≧2m | ≧4m | ≧8m |
| Pixel Density | 250000dots/㎡ | 62500dots/㎡ | 15625dots/㎡ |
| Best view distance | ≧2m | ≧4m | ≧8m |
| Brightness | Indoor≧1200CD,Outdoor≧5500CD | ||
| Cabinet Weight | 8.5kg | ||
| Waterproof level | Indoor IP43/Outdoor IP65 | ||
| Refresh Rate | 3840Hz | ||
| Warranty | 3 Years | ||
| Life Span | ≧100000hours | ||
Established in 2013, Shenzhen Lightall Optoelectronic Technology Co. Ltd. Is a Professional LED Display Manufacturer, Who Is Integrated in R&d, Manufacture, Marketing and After-Sale Service.
