Wise Choice, Big Stage

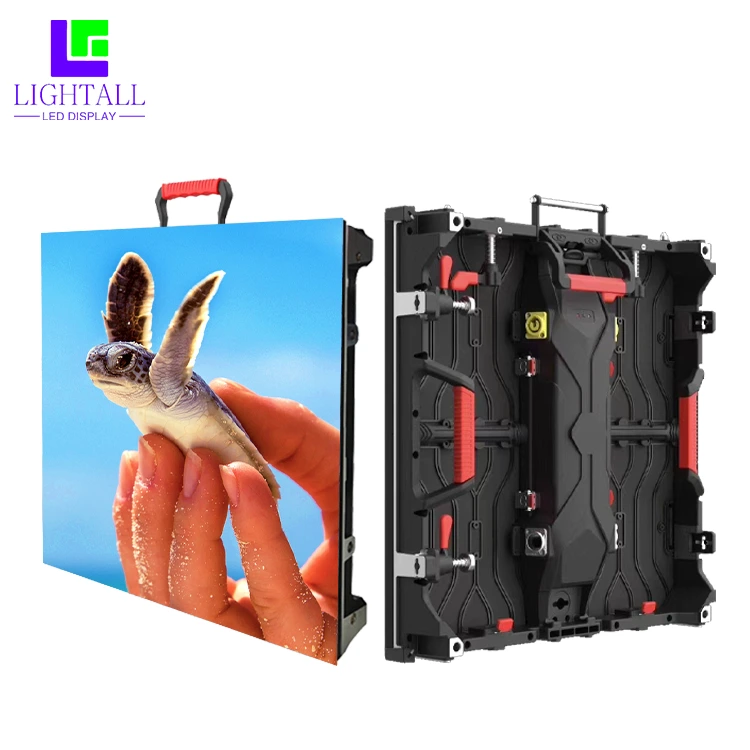

The C series was born to create a big stage. The 500*500mm panel is flexible and convenient. The 500*1000mm large size panel can help customers to quickly build a large screen in a short time. With a lightweight design, the C series enables one-man installation.
•   Pixel pitch of indoor products: P1.9mm,2.6mm,2.9mm,3.9mm,4.8mm
•   Pixel pitch of outdoor products: P2.6mm,2.9mm,3.9mm,4.8mm
•   Panel dimension: 500(W)*500(H)*75(D)mm, 500(W)*1000(H)*75(D)mm

Amazing Visual Experience

Superior visual performance with high brightness and high refresh rate, ready to create stunning event moments at any time.
•   Brightness of indoor: 1000nits
•   Brightness of outdoor : 5500nits
•   Refresh rate : 3840Hz

Excellent Curving Capabilities

Featuring a durable curve locking system, the C series supports concave and convex connection to create various shapes and build a more creative stage.

Considered Anti-Collision Design

Adopts anti-collision design to avoid direct collision between LEDs and the ground, thereby effectively protecting the LEDs on the edge.

High-Quality Cable Connectors

The C series incorporates high-quality cable connectors for power and data transmission to achieve stable power and data signal transmission, and are equipped with high-quality cables to further reduce the failure rate.

Multiple Installation Methods

Hanging and stacking installation solutions are both available to easily cope with the diverse requirements of the site environment. Moreover, holes have been reserved for tying nylon ties to support the installation of square tube trusses, saving more labor and material costs.

Modular Design for Easy Maintenance

C series supports front and rear maintenance of modules and power box.

Optional Floor Display Solution

The C series can be customized as a floor display, which adds to the effect of the stage for an immersive viewing experience. This floor display solution is only suitable for 500*500mm panels.

Parameters

Item

P1.953

P2.604

P2.976

P3.91

P4.81

Pixel pitch

1.953mm

2.604mm

2.976mm

3.91mm

4.81mm

Cabinet size(mm)

500x500/500x1000

500x500/500x1000

500x500/500x1000

500x500/500x1000

500x500/500x1000

Cabinet resolution(dots)

256*256/256*512

192*192/192*384

168*168/168*336

128*128/128*256

104*104/104*208

Best view distance

≥1.5m

≥2m

≥2.5m

≥3m

≥4m

Pixel Density

262144dots/m2

147456dots/m2

112896dots/m2

65410dots/m2

43264dots/m2

Brightness

Indoor ≥1200cd, Outdoor ≥5500cd

Cabinet Weight

500x500mm panel 7.5kg / 500x1000mm panel 11kg

Waterproof level

IP65

Refresh Rate

3840Hz

Warranty

3 Years

Life Span

≧100000hours

Working Voltage100-240V, 60Hz
Humidity-operating10%~90%
Operating temperature-30ºC~65ºC
