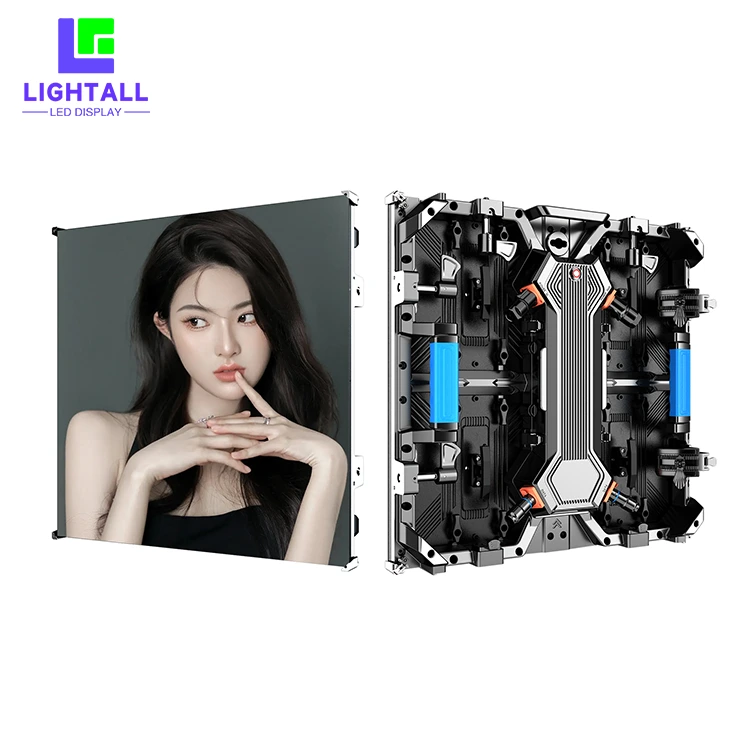

K Series Lightall Rental LED Display 500*500mm Panel compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.LIGHTALL summarizes the defects of past products, and continuously improves them. The specifications of K Series Lightall Rental LED Display 500*500mm Panel can be customized according to your needs.
Short Description:2024 New Arrival Rental LED Display Series
Multiple pixel pitch for options
P2.604/P2.976/P3.91/P4.81
Ultra-thin Ultra-light
Die-casting aluminum cabinet, high precision with seamless splicing.
Highly effective quick for transportation and screen assembling.
High brightness and be adjustable, meets the need of the changing requirements of customer in environment.
Indoor/Outdoor full-color screen
Give you better and more effective publicity effect.
Thin structure\ Good heat dissipation\ easy installation\ High gray level
Treat the customer base
Keep improving to make products
High precision die casting aluminum alloy housing
7.3/11Kgs per panel
Indoor: P1.9/P2.6/P2.9/P3.9/P4.8
Outdoor: P2.6/P2.9/P3.9/P4.8
Safety protection design
high rlibility and Long life
Box glued handle color: ■ ■ or customized
Protect the led lamp not to be damaged.
Easy for operation.
Waterproof IP65
Both cabinet and module are waterproof.
Protect led display from rain, snow and
dust in all weather
Innovative lock system with + 10 to -10 curve degrees options,
to do the creative screen design.
Front Maintenance Design
*Vacuum tool is recommend for maintenance.
500x500mm and 500x 1000mm cabinets can be easily
spliced up and down, greatly satisfying different needs
of assembling.
PERFECT DISPLAY PERFORMANCE
High brightness, high refresh rate,high gray scale
STACKING AND HANGING
SYSTEM OPTIONAL
APPLICATION
Parameters
| Item | P1.953 | P2.604 | P2.976 | P3.91 | P4.81 |
| Pixel pitch | 1.953mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Cabinet size(mm) | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 |
| Cabinet resolution(dots) | 256*256/256*512 | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 104*104/104*208 |
| Best view distance | ≥1.5m | ≥2m | ≥2.5m | ≥3m | ≥4m |
| Pixel Density | 262144dots/㎡ | 147456dots/㎡ | 112896dots/㎡ | 65410dots/㎡ | 43264dots/㎡ |
| Brightness | Indoor ≥1200cd, Outdoor ≥5500cd | ||||
| Cabinet Weight | 500x500mm panel 7.5kg / 500x1000mm panel 11kg | ||||
| Waterproof level | IP65 | ||||
| Refresh Rate | 3840Hz | ||||
| Warranty | 3 Years | ||||
| Life Span | ≧100000hours | ||||
| Working Voltage | 100-240V, 60Hz | ||||
| Humidity-operating | 10%～90% | ||||
| Operating temperature | -30ºC~65ºC | ||||
