LT-EH-PRO COB SERIES-LIGHTALL

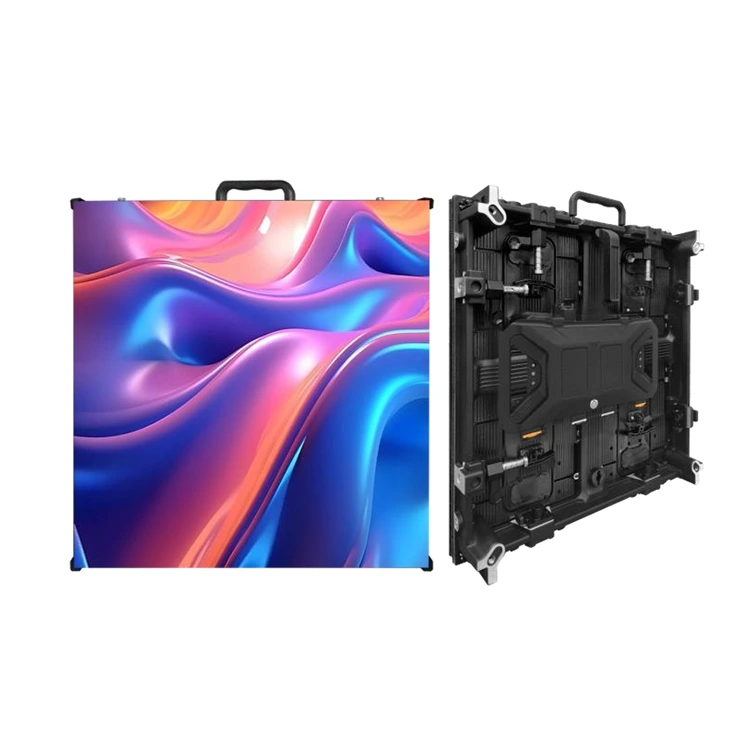

The product is LIGHTALL Optoelectronics EH-PRO COB series outdoor high brightness products, standard cabinet size 500mm * 500mm, standard with the northern set of driver IC, up to 3840Hz refresh frequency,
can realize the arc splicing effect. This cabinet structure is stable, not easy to deform, and the box surface adopts anodic antioxidant treatment, resistant to collision and friction, adapted to the leasing process of multiple installation and dismantling.
Short Description:
⚫ Standardized 500mm*500mm die-casting aluminum cabinet, module adopts
die-casting aluminum bottom shell, higher screen splicing flatness;
⚫ Optional pitch： P1.5625, P1.953;
⚫ Flip chip COB technology , low consumption, and good stability, high
luminous rate, dustproof anti-static and anti-knock;
⚫ Hard-wired power box, no wiring, more beautiful;
⚫ The up and down connect with the big magnetic screw,within automatic
suction function;
⚫ Optional fixed right-angle splicing, optional ±7.5° arc splicing to satisfy a
variety of rental scenarios;
⚫ Big high-quality chip, pure gold bonding wires , and pads are immersed gold
technology, which is more reliable ;
⚫ Flip Chip COB with common cathode solution , excellent heat dissipation
and low light decay
transport and install, saving a good amount of money on your labor costs.
Hanging and stacking installation solutions are both available to easily cope with the diverse requirements of the site environment.
Moreover, holes have been reserved for tying nylon ties to support the installation of square tube trusses, saving more labor and material costs.
| Item | Specification | EH1.56-PRO | EH1.95-PRO |
|---|---|---|---|
|
Module Parameter
|
Pixel Pitch (mm) | 1.5625 | 1.953 |
| Pixel Structure | COB 1RG1B | COB 1RG1B | |
| Pixel Density(dot/m²) | 409,600 | 262,144 | |
| Module Size(W*H)(mm) | 250*250 | 250*250 | |
| Backshell Material | Die Casting Aluminum | Die Casting Aluminum | |
| Module Resolution(W*H)(dot) | 160*160 | 128*128 | |
| Maximum Current(A） | 3.5/4.5 | 3.5/4.5 | |
| Supply Voltage(V) | 3.2/4.2 | 3.2/4.2 | |
| Scanning Method | 1/20 | 1/16 | |
| Refresh Frequency(Hz) | ≥3840 | ≥3840 | |
| Illumination(cd/m²) | 3000 | 3000 | |
| Driver IC | Constant Current Drive | Constant Current Drive | |
| Contrast Ratio | ≥10000:1 | ≥10000:1 | |
|
Cabinet Parameter
|
Cabinet Size(W*H*D)(mm) | 500*500*90 | |
| Cabinet Material | Die Casting Aluminum | ||
| Cabinet Weight(kg) | 9.5 | ||
| Enclosure Connection Method | Quick Lock | ||
| Installation/Maintenance Methods | Front or Back Installation/Front or Back Maintenance | ||
| Color Temperature / Luminance Uniformity | 3000-12000KAdjustable，≥98% | ||
| Chromatic Uniformity | ±0.003Cx，Cy | ||
| Horizontal/Vertical View | ≤140° | ||
| Single-point Color Correction | Yes | ||
| Single Point Brightness Correction | Yes | ||
| Standard Receiver Card | A8S-N | ||
| Frame Rate(Hz) | 50/60 | ||
| Protection Level | IP65 | ||
| Signal Interface Mode | RJ45 | ||
| Power Interface Method | Connectors | ||
| Input Voltage Range AC(V) | 100-240 | ||
| Peak Power Consumption(W/m²) | ≤680 | ||
| Average Power Consumption(W//m²) | ≤260 | ||
| Working Temperature and Humidity Range | 20～+50℃,10%～95%RH | ||
| Storage Temperature and Humidity Range | -40～+70℃,10%～95%RH | ||
| Service Life(H) | ≥100000 | ||
| Mean Time Between Failure(H) | ≥10000 | ||
