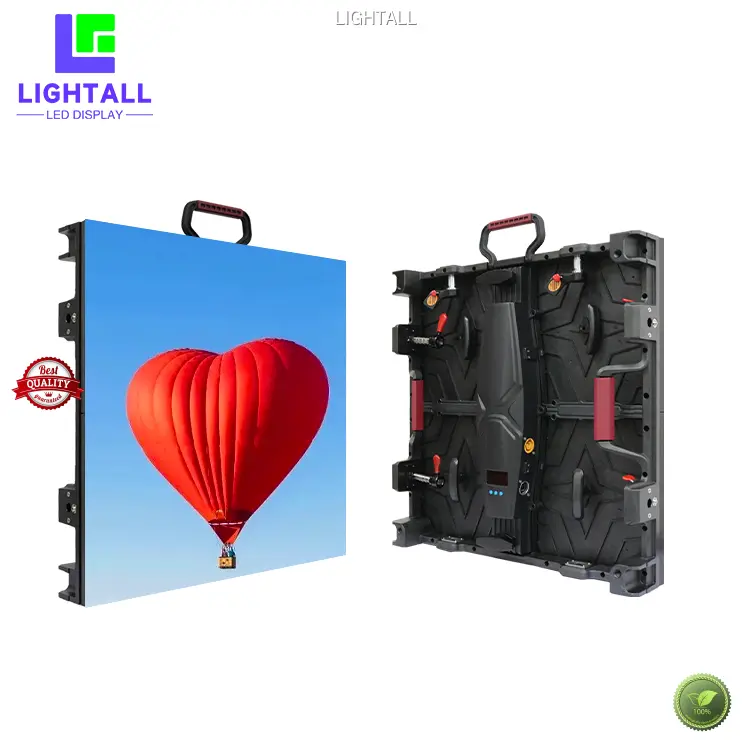

3D LED Display Board XR Series | Immersive Stage Display
Product advantages
The 3D LED Display Board XR Series offers a cutting-edge immersive stage display experience, perfectly blending visual and audio effects for a truly captivating performance. With advanced technology and high-resolution LED screens, this product delivers stunning visual effects and ensures optimal viewing experiences for audiences. Its sleek design and customizable features make it a versatile tool for creating unforgettable events and enhancing brand presence.
Company profile
With a dedication to innovation and cutting-edge technology, our company prides itself on offering high-quality 3D LED display boards to enhance your visual experiences. Our XR Series Immersive Stage Display is designed to captivate audiences and create a truly unforgettable viewing experience. We strive to provide solutions that exceed expectations and set industry standards. Our commitment to customer satisfaction drives us to continuously improve and push boundaries in the world of LED technology. Trust in our expertise and experience to elevate your events and presentations with our state-of-the-art LED display boards.
Why choose us
Our company is a leading manufacturer of high-quality 3D LED display boards, with our XR Series being the pinnacle of immersive stage display technology. With a dedication to innovation and superior performance, we offer our customers a cutting-edge solution for creating stunning visual experiences. Our team of experts is committed to delivering reliable, top-of-the-line products that exceed expectations and elevate any event or presentation. Trust in our brand for exceptional quality, advanced technology, and unparalleled customer service. Enhance your stage presence and captivate your audience with our 3D LED Display Board XR Series.
CURVED | QUICK | SOLID
Adivancedl gluing technology,with a certain thickness and strength, anti-scratch,anti-skidding
WE ARE MORE PROFESSIONAL
Not only for indoor and outdoor event use, pitch 2.6mm LED panel is 1/16 scan with 7680Hz high refresh rate, high contrast ratio and wide color gamut, suitable for XR stage and vitual production studio. The LED panel can be spliced to 90° to meet the needs of different application.
Support Cuved lnstallation
Product Usage
Adjustable brigtness for indoor and ouldoor use Such as movie production, aviation show, experience paviion,exhibition of linearts,muscum of art, science museum
Front Maintenance Design
*Vacuum tool is recommend for maintenance.
*LED Modules are pasted by strong magnet. It is complete front service.
*Magnets module support front service. The panel back cover can be
opened from the back side for rear service purpose as well
PERFECT DISPLAY PERFORMANCE
High brightness, high refresh rate,high gray scale
STACKING AND HANGING
SYSTEM OPTIONAL
parameter
| Pixel Pitch | P1.95 | P2.315 | P2.604 |
| LED Type | SMD1515 | SMD1515 | SMD1515 |
| Physical Density(dots/m2) | 262144 | 186624 | 147456 |
| Module Resolution | 128×128 | 108×108 | 96×96 |
| Module Size (WxH) | 250×250 | 250×250 | 250×250 |
| cabinet Size | 500×500×84.5 | 500×500×84.5 | 500×500×84.5 |
| Cabinet Resolution | 256×256 | 216×216 | 192×192 |
| Module QTY /Cabinet (WxH) | 2×2 | 2×2 | 2×2 |
| Cabinet Weight(kg) | 8 | 8 | 8 |
| Maintenance Mode | Front/Back maintenance | Front/Back maintenance | Front/Back maintenance |
| cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Brightness | ≥1500 | ≥1500 | ≥1500 |
| Viewing Angle(H/V) | 160°/160° | 160°/160° | 160°/160° |
| The best viewing distance | 2-50m | 3-50m | 3-50m |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 |
| Frame Frequency | 60/120 | 60/120 | 60/120 |
| Drive Mode | Static,1/8 Scan | Static,1/9 Scan | Static,1/8 Scan |
| Refresh Rate(Hz) | 7680 | 7680 | 7680 |
| Grey Level | 16 bit | 16 bit | 16 bit |
| lP Grade | IP 31 | IP 31 | IP 31 |
| Max Power Consumption(W/m2) | 920 | 920 | 920 |
| Average Power Consumption(W/m2) | 200-300 | 200-300 | 200-300 |
| lnput Power | AC90-264V,47-63Hz | ||
| Working Temperature/Humidity(°C/RH) | -20~60°C / 10%~85% | ||
| Storage Temperature/Humidity(C/RH) | -20~60°C / 10%~85% | ||
| Cert. | CCC / CE/ RoHS / FCC / CB /TUV / IEC | ||
Established in 2013, Shenzhen Lightall Optoelectronic Technology Co. Ltd. Is a Professional LED Display Manufacturer, Who Is Integrated in R&d, Manufacture, Marketing and After-Sale Service.
