At LIGHTALL, technology improvement and innovation are our core advantages. Since established, we have been focusing on developing new products, improving product quality, and serving customers. led screen van on rent LIGHTALL is a comprehensive manufacturer and supplier of high-quality products and one-stop service. We will, as always, actively provide prompt services such. For more details about our led screen van on rent and other products, just let us know.The product is excellent in heat dissipation. Usually constructed from copper or aluminum which has a very high thermal conductivity, the product also features a high rate of heat transfer.

Indoor/Outdoor full-color screen

Give you better and more effective publicity effect.

Thin structure\ Good heat dissipation\ easy installation\ High gray level

Treat the customer base

Keep improving to make products

Extremely light weight

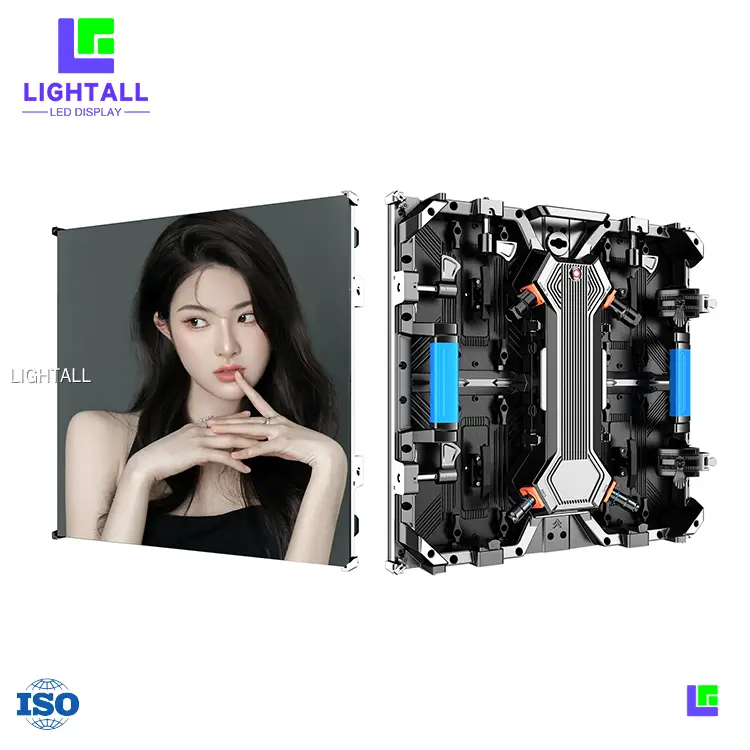

High precision die casting aluminum alloy housing

7.3/11Kgs per panel

Indoor: P1.9/P2.6/P2.9/P3.9/P4.8

Outdoor: P2.6/P2.9/P3.9/P4.8

Safety protection design

high rlibility and Long life

Box glued handle color: ■ ■    or customized

Led lamps Protection

Protect the led lamp not to be damaged.

Easy for operation.

Waterproof IP65

Both cabinet and module are waterproof.

Protect led display from rain, snow and

dust in all weather

Curved Design

Innovative lock system with + 10 to -10 curve degrees options,

to do the creative screen design.

Product detail

Front Maintenance Design

*Vacuum tool is recommend for maintenance.

MIXED SPLICING

500x500mm and 500x 1000mm cabinets can be easily

spliced up and down, greatly satisfying different needs

of assembling.

PERFECT DISPLAY PERFORMANCE

High brightness, high refresh rate,high gray scale

STACKING AND HANGING

SYSTEM OPTIONAL

APPLICATION

Parameters

Item	P1.953	P2.604	P2.976	P3.91	P4.81
Pixel pitch	1.953mm	2.604mm	2.976mm	3.91mm	4.81mm
Cabinet size(mm)	500x500/500x1000	500x500/500x1000	500x500/500x1000	500x500/500x1000	500x500/500x1000
Cabinet resolution(dots)	256*256/256*512	192*192/192*384	168*168/168*336	128*128/128*256	104*104/104*208
Best view distance	≥1.5m	≥2m	≥2.5m	≥3m	≥4m
Pixel Density	262144dots/㎡	147456dots/㎡	112896dots/㎡	65410dots/㎡	43264dots/㎡
Brightness	Indoor ≥1200cd, Outdoor ≥5500cd
Cabinet Weight	500x500mm panel 7.5kg / 500x1000mm panel 11kg
Waterproof level	IP65
Refresh Rate	3840Hz
Warranty	3 Years
Life Span	≧100000hours
Working Voltage	100-240V, 60Hz
Humidity-operating	10%～90%
Operating temperature	-30ºC~65ºC
