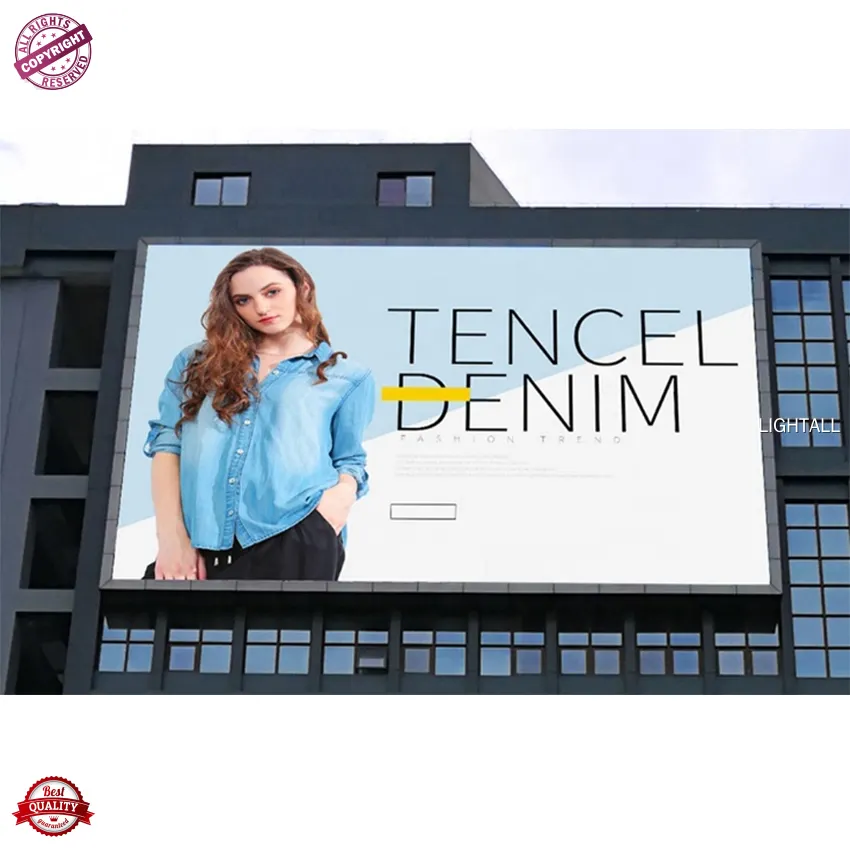

outdoor digital display board at Wholesale Prices | LIGHTALL 1
outdoor digital display board at Wholesale Prices | LIGHTALL 2
outdoor digital display board at Wholesale Prices | LIGHTALL 3
outdoor digital display board at Wholesale Prices | LIGHTALL 4
outdoor digital display board at Wholesale Prices | LIGHTALL 5
outdoor digital display board at Wholesale Prices | LIGHTALL 6
outdoor digital display board at Wholesale Prices | LIGHTALL 1
outdoor digital display board at Wholesale Prices | LIGHTALL 2
outdoor digital display board at Wholesale Prices | LIGHTALL 3
outdoor digital display board at Wholesale Prices | LIGHTALL 4
outdoor digital display board at Wholesale Prices | LIGHTALL 5
outdoor digital display board at Wholesale Prices | LIGHTALL 6

outdoor digital display board at Wholesale Prices | LIGHTALL

The product is significant to lower the running temperature of the device, reducing the hardware loss, therefore extending the service life of the device.
Inquiry

Always striving toward excellence, LIGHTALL has developed to be a market-driven and customer-oriented enterprise. We focus on strengthening the capabilities of scientific research and completing service businesses. We have set up a customer service department to better provide customers with prompt services including order tracking notice. outdoor digital display board We have professional employees who have years of experience in the industry. It is them that provides high-quality services for customers all over the world. If you have any questions about our new product outdoor digital display board or want to know more about our company, feel free to contact us. Our professionals would love to help you at any time.LIGHTALL is completed after a series of the production processes, namely, mold extrusion, turning, milling, drilling, lathing, grinding, and wire cutting.

Product detail

* Customized Led Display Panel (960*960mm/1024*1024mm/1152*1152mm...).

* Front/Rear Service module or panel for your option.
* Waterproof iron/aluminum/Die casting aluminum panel for your option. ( IP65 )

outdoor digital display board at Wholesale Prices | LIGHTALL 7

outdoor digital display board at Wholesale Prices | LIGHTALL 8

outdoor digital display board at Wholesale Prices | LIGHTALL 9

outdoor digital display board at Wholesale Prices | LIGHTALL 10

outdoor digital display board at Wholesale Prices | LIGHTALL 11

HIGH TEMPERATURE AND

LOW TEMPERATURE RESISTANCE

Working Temperature:-50°C-+80°C

outdoor digital display board at Wholesale Prices | LIGHTALL 12

LED Display Test

Each product tested more than 72 hours before shipment

outdoor digital display board at Wholesale Prices | LIGHTALL 13

outdoor digital display board at Wholesale Prices | LIGHTALL 14

Recommend For You

outdoor digital display board at Wholesale Prices | LIGHTALL 15

outdoor digital display board at Wholesale Prices | LIGHTALL 16

outdoor digital display board at Wholesale Prices | LIGHTALL 17

Technical Parameters


Item
P10
Chip
Epstar
Chip size
Red 9 mil, Green 12. Blue 12mil
Light type
SMD3535
Pixel Pitch
10mm
Module Size
960x960mm
Module Resolution
96*96pixel
Density of pixel
10000dots/m2
Pixel configuration
1R1G1B
Red wavelength
625±2nm
Green wavelength
525±2nm
Blue wavelength
470±2nm
Colors
16777216
Best viewing distance
≥2m
viewing angle
120°/90°
Maximum power consumption
13W
Brightness
≥6500CD
Gray scale
16bits per color
Color temperature
6500k
Control method
Synchronization or Asynchronization
Driving method
1/4 Scan
Frame frequency
60Hz
Refresh frequency
≥600Hz
Working Voltage
DC5V
IP grade
IP65
Warranty
3 years
Life Span
100,000hours
Certificate
CCC, FCC, ROHOS, CE

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
