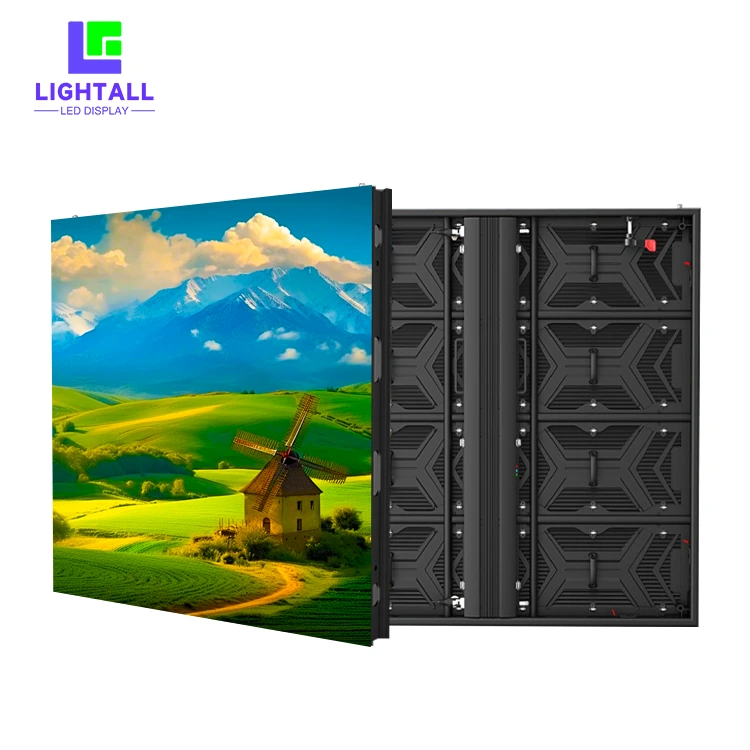

New Arrival Quality High Definition Full Color Outdoor Waterproof Ip65 LED Screen Manufacturer | LIGHTALL
High Definition Full Color Outdoor Waterproof Ip65 LED Screen compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.LIGHTALL summarizes the defects of past products, and continuously improves them. The specifications of High Definition Full Color Outdoor Waterproof Ip65 LED Screen can be customized according to your needs.
High-end energy-saving
LED dispiay
Intelligent control Visual enjoyment
Products Description
Back side
Aluminum profile cabinet is light weight,
which saves tranportation cost and installation cost
IP65 Waterproof for both
front and back side
Hard connection
supports full front access
Stainless fast lock High precision aluminum alloy
panelQuick assembly . Good flatness
Front side
Matte corrugation module mask
achieves ultra-high contrast
Suits for all outdoor applications
Seamless splicing
●Delicate structure
●Seamless splicing
●Perfect flatness
High brightness, high refresh rate,high gray scale
High grey scale
Parameters
|
Pitch |
P2.976 |
P3.91 |
P4.81 |
P6.25 |
P7.81 |
P10.42 |
|
SMD Type |
SMD1415 |
SMD1921 |
SMD1921 |
SMD2727 |
SMD2727 | SMD2727 |
| Physical Density(dots/㎡) |
112896 |
65536 |
43264 |
25600 |
16384 |
9216 |
| Module Resolution |
168X84 |
128X64 |
104x52 | 80x40 | 64x32 | 48x24 |
|
Panel Dimension (W xH/mm) |
500X250 |
500X250 |
500X250 | 500X250 | 500X250 | 500X250 |
| Module Size (mm) |
1000X1000X83 (Customizable for 1500 width and 500/750 height) |
1000X1000X83 |
1000X1000X83 | 1000X1000X83 | 1000X1000X83 | 1000X1000X83 |
| Panel Resolution |
336X336 |
256x256 | 208x208 | 160x160 | 128x128 | 96x96 |
| Module quantity(W xH) | 2X4 |
2x4 |
2x4 | 2x4 | 2x4 | 2x4 |
| Panel Weight(kg) |
22.5 |
22.5 |
22.5 | 22.5 | 22.5 | 22.5 |
| Maintenance Mode |
Front & Rear |
Front & Rear |
Front & Rear | Front & Rear | Front & Rear | Front & Rear |
| Cabinet material |
Aluminum |
Aluminum |
Aluminum | Aluminum | Aluminum | Aluminum |
|
Brightness(Nits) |
≥4500 |
6000 |
6000 | 6000 | 6000 | 6000 |
| Color temperature(K) |
1000-18500Adjustable |
1000-18500Adjustable |
1000-18500Adjustable | 1000-18500Adjustable | 1000-18500Adjustable | 1000-18500Adjustable |
| Viewing Angle(H/V) |
140°/160° |
140°/160° |
140°/160° | 140°/160° | 140°/160° | 140°/160° |
| Best viewing distrance |
3-100m |
4-100m |
4-100m |
6-150m |
8-150m |
10-200m |
| Contrast Ratio |
5000 : 1 |
10000 : 1 |
10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 |
|
Frame -changing Frequency(Hz) |
50/60 |
50/60 |
50/60 | 50/60 | 50/60 | 50/60 |
| Drving Mode |
1/21 Scan |
1/16 Scan |
1/13 Scan |
1/8 Scan |
1/4 Scan |
1/2 Scan |
| Grey Level |
16bit |
16bit |
16bit | 16bit | 16bit | 16bit |
| Refresh Rate (Hz) |
3840 |
3840 |
3840 | 3840 | 3840 | 3840 |
|
Max power consumption(W/㎡) |
800 |
650 |
650 | 650 | 650 | 650 |
|
Avg power consumption(W/㎡) |
200-300 |
100-200 |
100-200 | 100-200 | 100-200 | 100-200 |
| Grude |
IP65 |
IP65 |
IP65 | IP65 | IP65 | IP65 |
|
Power supply requirements |
AC90-264V,47-63Hz |
|||||
|
Working Temp/Humidity(℃/RH) |
-20~60℃/10%~85% |
|||||
|
Storage Temp/Humidity(℃/RH) |
-20~60℃/10%~85% |
|||||
|
Cert |
CCC/CE/RoHS/FCC/CB/TUV/IEC |
|||||
