LIGHTALL- Focus On LED Screen Field For More Than 10 Years.
Lease transparent screen 500x500mm
✔ 500*500* thickness80mm LED Display Cabinet
✔ Lightweight and Thin
✔ Perfect Structure
✔ Support Right Angle Installation (Optional)
✔ Detachable Back Cover
✔ Front & Rear Maintenance
✔ IP65 Waterproof
✔ Curved Installation (Optional)
✔ Lightweight and Thin
✔ Perfect Structure
✔ Support Right Angle Installation (Optional)
✔ Detachable Back Cover
✔ Front & Rear Maintenance
✔ IP65 Waterproof
✔ Curved Installation (Optional)
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

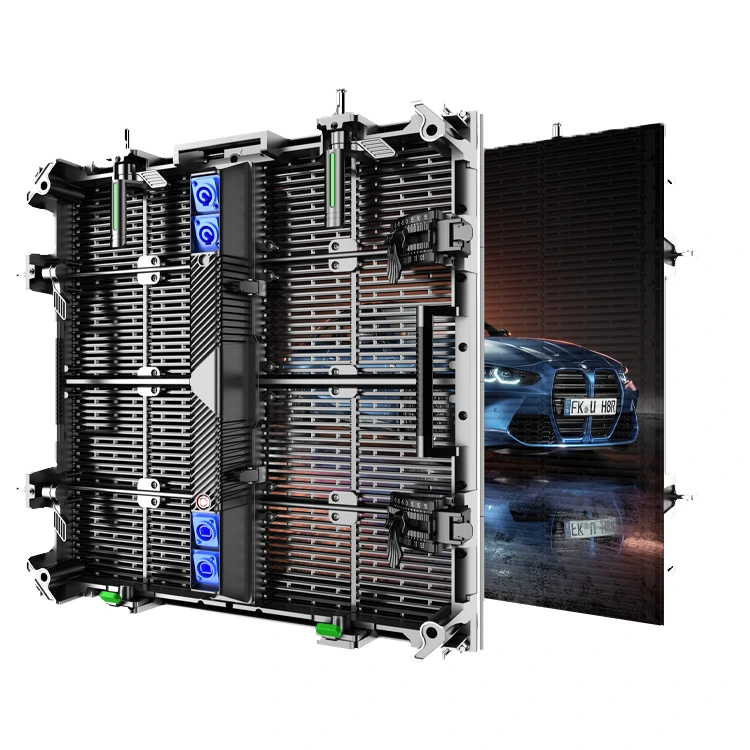

Rental transparent LED screen
The rental transparent LED screen is a highly portable and easy-to-assemble stage display product, specially designed for rental scenarios.
Description of product details
* Maintenance is convenient, with modules removable from the rear of the cabinet for easy plug-and-play access, allowing for quick servicing.
*lightweight and transparent, transparency rate 35%, no framework, multi-purpose.
*Modular installation is convenient with quick-lock system, lightweight design, stability, aesthetics.
*Saving on operating costs: More than 30% energy saving compared with other products, saving operation cost.
*Easy to install and maintain, low cost for supporting structure.
IP65 Waterproof Design
The cabinet features a waterproof design with an IP65 protection rating, making it suitable for use in various harsh weather conditions.
Concave and Convex Curve Lock
The -15° to +15° curve locks allow compatibility with straight, concave, and convex configurations, making them suitable for various application scenarios.
Seamless Splicing
Standard straight cabinet 500×500mm and 500×1000mm. The screen sizes can be freely combined and used together vertically, saving operational costs and installation time.
Parameters
| Item | P3.91 | ||||||
|---|---|---|---|---|---|---|---|
| Pixel pitch | 3.91x7.81mm | ||||||
| Pixel package | SMD1921 | ||||||
| Cabinet size(mm) | 500x500/500x1000 | ||||||
| Cabinet resolution(dots) | 128*64/128*128 | ||||||
| Best view distance | ≥3m | ||||||
| Pixel Density | 32768dots/㎡ | ||||||
| Brightness | Indoor ≥1000cd, Outdoor ≥4500cd | ||||||
| Cabinet Weight | 500x500mm panel 3.75kg / 500x1000mm panel 7.5kg | ||||||
| Waterproof level | Indoor IP30 Outdoor IP65 | ||||||
| Refresh Rate | 3840-7680Hz | ||||||
| Warranty | 3 Years | ||||||
| Life Span | ≧100000hours | ||||||
| Working Voltage | 100-240V, 60Hz | ||||||
| Humidity-operating | -10%～90% | ||||||
| Operating temperature | -40ºC~45ºC | ||||||
APPLICATION
