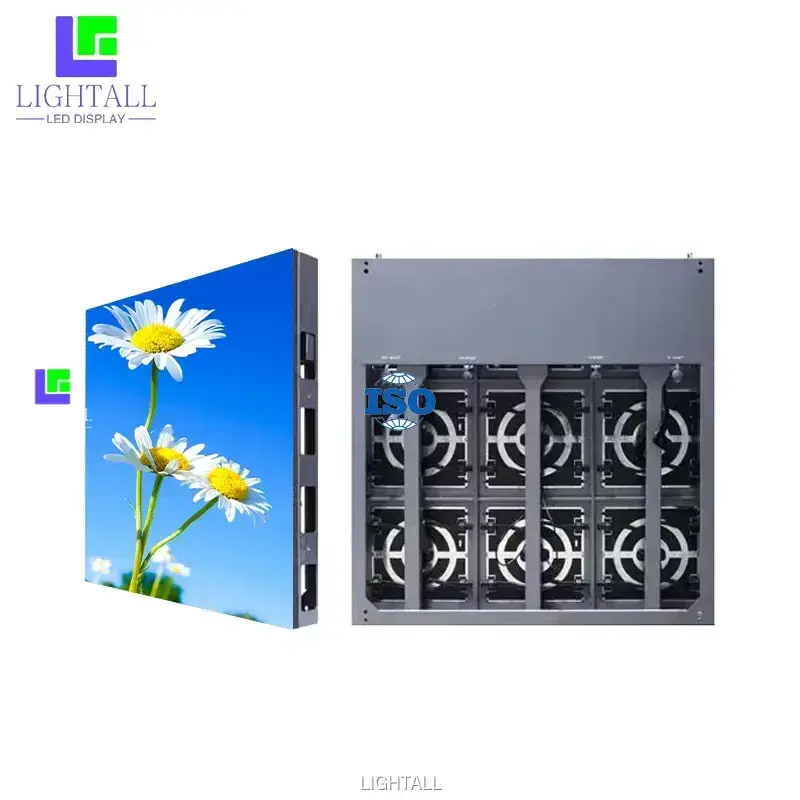

The Energy Saving Outdoor LED Screen - LTH-E Series combines cutting-edge technology with innovative design to deliver superior performance while being environmentally friendly. With advanced energy-saving capabilities, this LED screen helps reduce electricity consumption, making it an ideal choice for outdoor installations. Its high brightness and excellent color rendering ensure clear and vibrant visuals even in bright sunlight, offering superb visibility and engaging viewing experience for audiences.
At LTH-E Series, we serve a commitment to energy-saving solutions with our outdoor LED screens. Our innovative technology not only delivers stunning visuals but also reduces energy consumption, making it a sustainable choice for businesses and organizations. With high brightness and excellent clarity, our screens ensure maximum visibility even in outdoor environments. Our team of experts is dedicated to providing top-notch customer service, helping you every step of the way from installation to maintenance. Choose LTH-E Series for a reliable and eco-friendly outdoor LED screen solution that serves both your visual and environmental needs.
At LTH-E Series, we serve our customers by offering energy saving outdoor LED screens that provide high-quality display with reduced power consumption. Our products are designed to enhance visibility and engagement for outdoor advertising, events, and digital signage, while also helping to save energy and reduce operating costs. With our commitment to reliability and innovation, we strive to provide exceptional customer service and support to ensure a seamless experience from purchase to installation. Trust LTH-E Series to elevate your outdoor display needs with energy efficient solutions that deliver outstanding performance and value. Let us serve you and light up your outdoor space with brilliance.
LTH-E Series Features
● Energy Saving with common cathode
● Flame Resistance
● IP68 Protection Level
● High refresh and high brightness(≥10,000NITS)
● All Aluminum Module Design
● Front and Rear Maintenance
● Working Temperature up to 70°C
● High Humidity Salt proof
LTH-E Series Advantages
Low Power Consumption
and Energy Saving
IP68 Protection Level
Fully closed die-casting aluminum back shell, protect the components one by one, make the screen bodyresistant tohigh temperature, low temperature, corrosion, strong environmental adaptability, outdoor all-weather work, ultra stableand high protection.
The aluminum back shell adopts the fully closed design, equipped with a three in one waterproof plug,and the lamp footadopts the double liquid glue flling technology, with full waterproof IP68.
Various Sizes Available
Use aluminum. It's lighter, more
environmentally and more stable
Rear maintenance
LED | LED type | Wavelength (nm) | Brightness (mcd) | Test Condition | |
Red(R) | SMD2727 | 620-625nm | 440-572mcd | 25°C,20mA | |
Green ( G) | 521.5-524.5nm | 1050-1365mcd | 25°C,20mA | ||
Blue (B) | 465.5-468.5nm | 252-327mcd | 25℃,20mA | ||
lteme | Parameter | Parameter | Parameter | ||
Parameter: | 8mm | 6.67mm | 10mm | ||
Pixe1 Configuration | 1R1G1B | 1R1G1B | 1R1G1B | ||
LED Lamp | Full color | Full color | Full color | ||
Densitye | 15625 Dot/sqm | 22477 Dot/sqm | 10000 Dot/sqm | ||
Module Sizee | 320*320mm | 320*320mm | 320*320mm | ||
Module Pixel | 32*32-2304 Pixel | 48*48-2304 Pixel | 32*32-2304 Pixel | ||
Module Thicknesse | 17mm | 17mm | 17mm | ||
Module Weight | 1550g | 1550g | 1550g | ||
Module Power | ≤70.98w | ≤70.98w | ≤70.98w | ||
Drive Voltagee | DC4.2V | DC4.2V | DC4.2V | ||
Drive Current | 16.9A | 16.9A | 16.9A | ||
Module Porte | HUB-75 | HUB-75 | HUB-75 | ||
Screen Parameter | |||||
Item | Parameter | ||||
Standard Cabinet | 960x960mm | ||||
Brightness/Adjustment | 5500cd/m2 adjustable, Level 16-Automatic / Leve1 100-Manua1operation | ||||
View Angle | ≥140°( Horizonta1), ≥120° ( vertica1) | ||||
Best View Distance | 10-100 M | ||||
Grey Scale | Within 65536 Step | ||||
Color Temperature | 11944K | ||||
Frame Frequency | ≥60Hz | ||||
Refresh Frequency | ≥780Hz | ||||
Input SignalContro1 Method | Video, VGA/Computer control, Synchronous Video, Rea1-timedisplaye | ||||
Scan Mode | 1/6 Scan | ||||
Drive IC | SUM2028 | ||||
Module Qty/sqm | 9.7 | ||||
Display Color | 16777216 colors | ||||
Continuous Working Time | >24 《 Hrs ) | ||||
Screen Lifespan | >100.000 ( Hrs) | ||||
MTBF | >5000 ( Hrs ) | ||||
Max. power consumption | 690w/m2 | ||||
Ave. power consumption | 230w/m2 | ||||
Out of control pixel rate | <3/10,000(discrete distribution) | ||||
Control Distance | 100M(Ethernet)500M( Multi-fiber )10KM( Sigle-fiber ) | ||||
Flatness | Screen Surface<0.5mm,Pixe1 Pitch≤0.3mm | ||||
Operation Temperature | -10C~-+50C | ||||
Operation Humidity | 10%~98%RH | ||||
Storage Temperature | -40°C+85°C | ||||
Software Connection | Standard Computer Connection,Compatiable With Windows、Unix、Novell | ||||
Protection System | Over-temperature/Over-1oad/power/Image compensation/Nonlinearcorrection | ||||
Working Voltage | 200~-240 v | ||||
Dielectric Strength | 50HZ/1500v《AC RMS)/1min | ||||
Temperature Rise | Metal≤40K, Insulation≤65K,After Heat Balance | ||||
IP Degree | IP67 | ||||
Computer display mode | 1024*768 | ||||
Media Player | LED Professiona1 Media Player |
