UH-T SERIES Display Specification
UH-T SERIES Display Specification

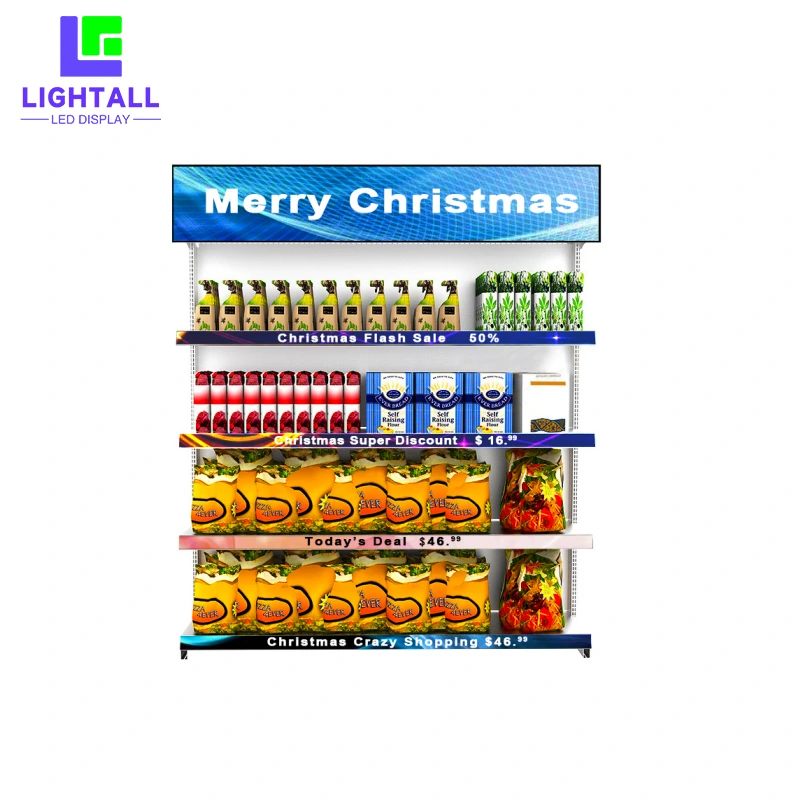

An intelligent dynamic solution for indoor advertising
Product Name: LED Shelf LED Display Screen
Product Model: U-SHELF-S1501
Pixel Pitch: 1.2 mm
LED Spec: GOB
Scanning Mode: 1/32
Display Size: W 300 mm * H60 mm
Version Number: V1.0
Working Mode:asynchronous control system
Safety:Cluster management though cloud platform, remote real-time control
Energy saving:Automatically adjust brightness, timing switch
Effect:Colorful pictures with high refresh rate and brightness can meet the needs of high speed camera
Brightness:Automatically adjust brightness,not affect traffic
Simultaneously:GPS simultaneous broadcasting
Inter-cut real-time urgent notice
ommunication Ports:Ethernet/U-disk(3G/4G,wifi optional)
Main technical specifications (T=25℃)
LED parameter(For reference, according to the different parameters of different batches of shipment.)
 |
Product Model | Color | IF(mA) | Rd(nm) | Iv(mcd) | Vf(V) | View Angle |
| TEST | Typ | Typ | Typ | (deg.) | |||
| =E22 | Red | 8 | 622 | 48 | 2.0 | 110 | |
| Green | 5 | 526 | 155 | 2.8 | 110 | ||
| Blue | 3 | 470 | 20 | 2.8 | 110 |
Module Parameters
| Pixel Pitch(mm) | 1.2 mm | 1.5 mm | 1.875 mm |
| Pixel Density(dots/m) | width | 125 high 50 | width | 100 high 40 | width | 80 high 32 |
| Module Size(mm) | width| 150 high 60 | width| 150 high 60 | width| 150 high 60 |
| Module Thickness(mm) | about 10 | about 10 | about 10 |
| Greatest Billiancy | ≥800 cd/㎡ | ≥800 cd/㎡ | ≥800 cd/㎡ |
| View Angle | ≥140° | ≥140° | ≥140° |
| Driver IC | 16bit Constant current drive(①) | 16bit Constant current drive(①) | 16bit Constant current drive(①) |
| Row Driven IC | 7258(②) | 7258(②) | 7258(②) |
| Scanning Mode | 1/32 | 1/32 | 1/32 |
| Working Voltage | DC5V+10% | DC5V+10% | DC5V+10% |
| Maximum Current(A) | 3.9 (Typ)③ | 2.5 (Typ)③ | 1.6 (Typ)③ |
| Maximum Power(W) | 19.5 (Typ)④ | 12.5 (Typ)④ | 8.0 (Typ)④ |
| Signal Interface | HUB20D(IDC20-1.0mm) | HUB20D(IDC20-1.0mm) | HUB20D(IDC20-1.0mm) |
| Power Interface | Same to Signal | Same to Signal | Same to Signal |
| Module Weight(kg) | about 0.10 | about 0.10 | about 0.10 |
The above pictures are for reference only.
Cabinet Parameters(recommend)
| Display Size(mm) | width 300 high 60 | width 1200 high 60 | width 1200 high 60 |
| Display Resolution(dots) | width 250 high 50 | width 800 high 40 | width 640 high 32 |
| Display Area(㎡) | 0.02 | 0.07 | 0.07 |
| Cabinet Size(mm) | width 303 high 63 | width 1203 high 63 | width 1203 high 63 |
| Cabinet Thickness(mm) | about 22 | about 22 | about 22 |
| Cabinet Area(㎡) | 0.02 | 0.08 | 0.08 |
| Cabinet Type | Profile box | Profile box | Profile box |
| Cabinet Material | Aluminium profile steel plate | Aluminium profile steel plate | Aluminium profile steel plate |
| Module Number(pcs) | width 2 high 1 total 2 | width 8 high 1 total 8 | width 8 high 1 total 8 |
| Cabinet Weight(Kg) | about 0.35 ⑤ | about 0.35 ⑤ | about 0.35 ⑤ |
| Working Voltage | DC5V±10% | DC5V±10% | DC5V±10% |
| Maximum Power(W/pcs) | about 39.1 | about 100.0 | about 64.0 |
| Reference Average Power(W) | about 13.7 | about 35.0 | about 22.4 |
The above pictures are for reference only.
Working Parameter
| Continuous Operating Time | ≥72 hours |
| Working Life | ≥50,000 hours |
| Operating Temperature | Indoor Type:-10 C- 40 C;Indoor Type:-20 C- 50 C |
| Operating Humidity | 10%-80%RH (No condensation) |
| Storage Temperature | -30C - 80°C |
System Parameters
| Working Mode | Asynchronous control system |
| Storage Space | 1G, TF card and U-disk expansion |
| Audio Player | support(according to the system) |
| Grey Scale | ≥16bits |
| Refresh Frequency(Hz) | ≥3840 |
| Brightness Adjustment | Automatically(Dependent function card) |
| Temperature Detection | support(Dependent function card) |
| Humidity Detection | support(Dependent function card) |
| Remote Power Control | support(Dependent function card) |
Remarks:①,②Customizable according to customer requirements;③,④Representative value;⑤Estimated value;according to the different parameters of different batches of shipment.
The above pictures are for reference only.
