Set up years ago, LIGHTALL is a professional manufacturer and also a supplier with strong capabilities in production, design, and R&D. outdoor led sign modules We have been investing a lot in the product R&D, which turns out to be effective that we have developed outdoor led sign modules. Relying on our innovative and hard-working staff, we guarantee that we offer customers the best products, the most favorable prices, and the most comprehensive services as well. Welcome to contact us if you have any questions.The design of LIGHTALL is the outcome of a professional thermal solution. Influencing factors such as air velocity, choice of dissipation materials, and finish are taken into consideration by the designers.

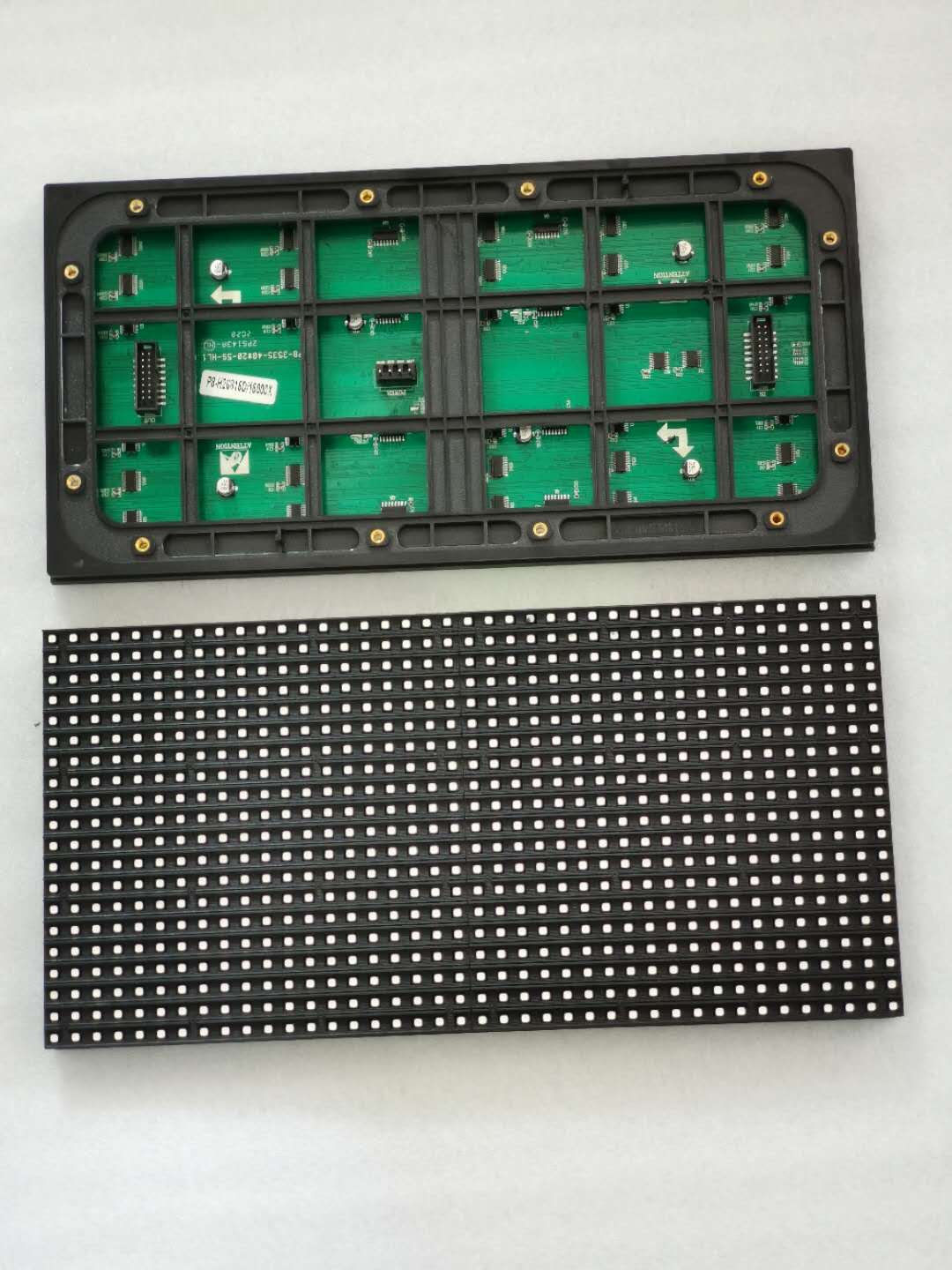

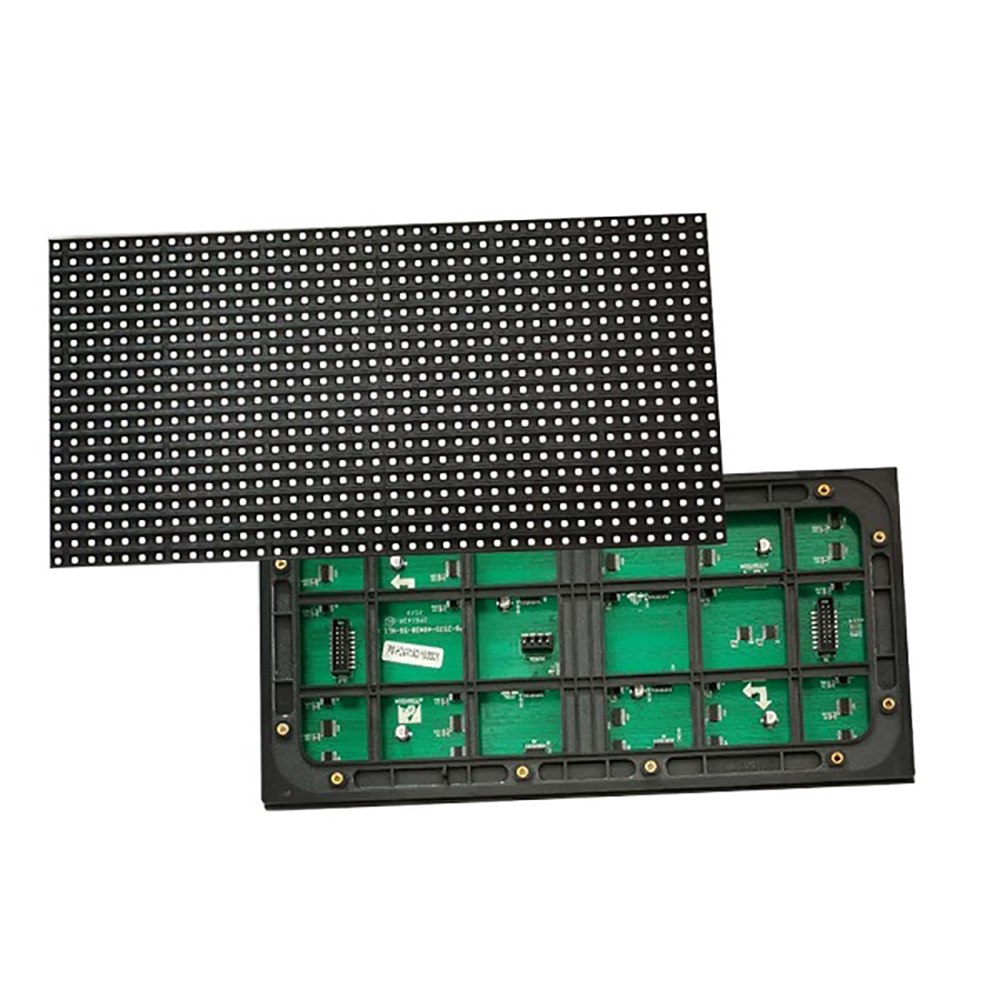

Module Size: 320*160mm
Module Resolution: 40*20pixel
Technical Parameters
Outdoor P8 Full Color 40*20pixel LED Display Panel Matrix Module SMD LED Screen | |||
| Item | P8mm | Chip | Epistar |
| LED Type | SMD3535 | Pixel Pitch | 8mm |
| Pixel Configuration | 1R1G1B | Interface | HUB75 |
| Module Size | 320mm*160mm | Module Resolution | 40pixel * 20pixel |
| Pixel Density | 15625dots/m2 | Best view distance | ≧8m |
| Driving Method | 1/4 Scan | Brightness | ≧5500 |
| Viewing Angle | H:160° V: 140° | Working Voltage | DC5V |
| Warranty | 3 Years | Life Span | ≧100000hours |

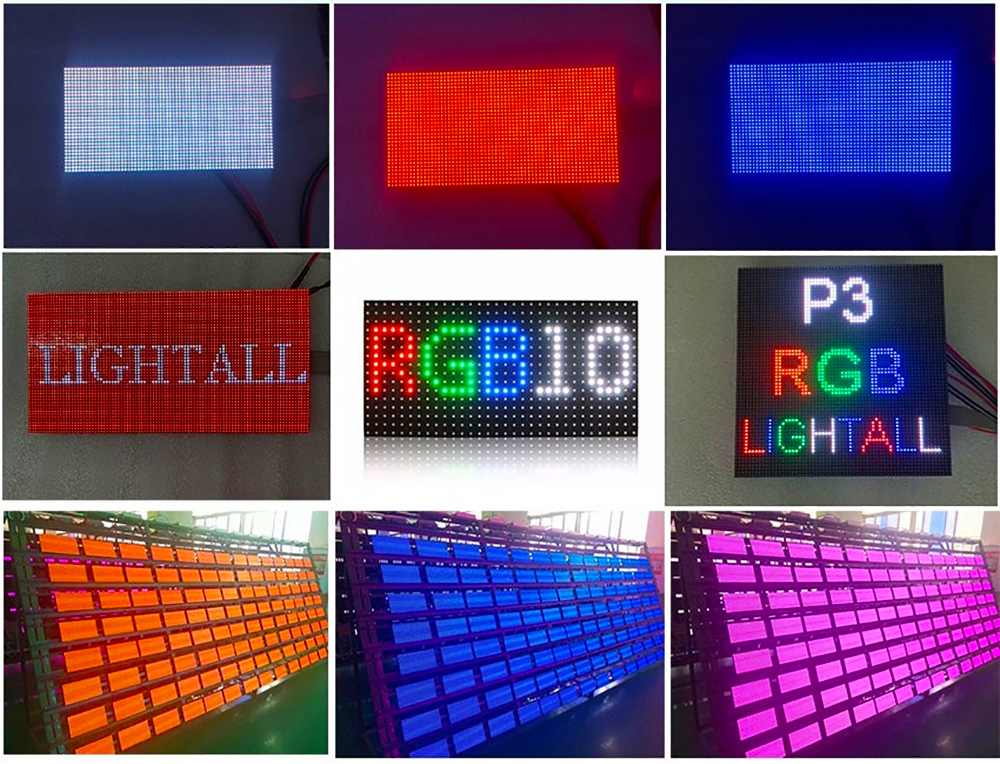

P8 outdoor led module Screen Module Test
Each module was tested more than 72 hours before shipment.

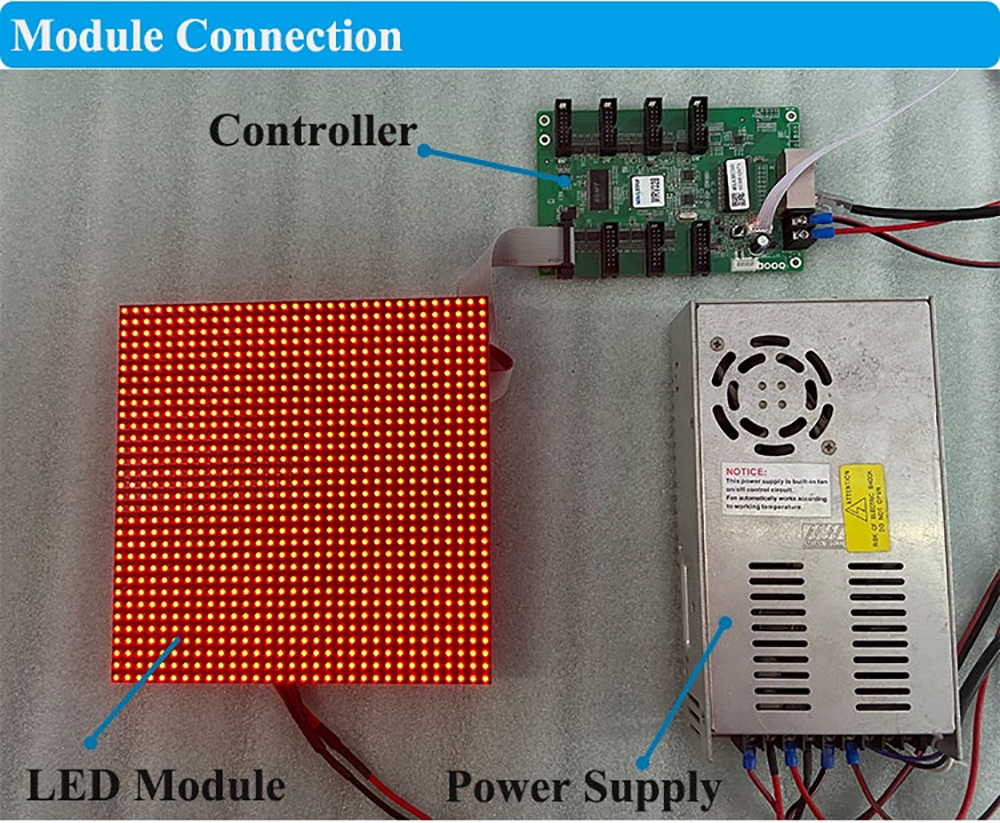

LED Module Connection
The module need power supply and controller to driving.

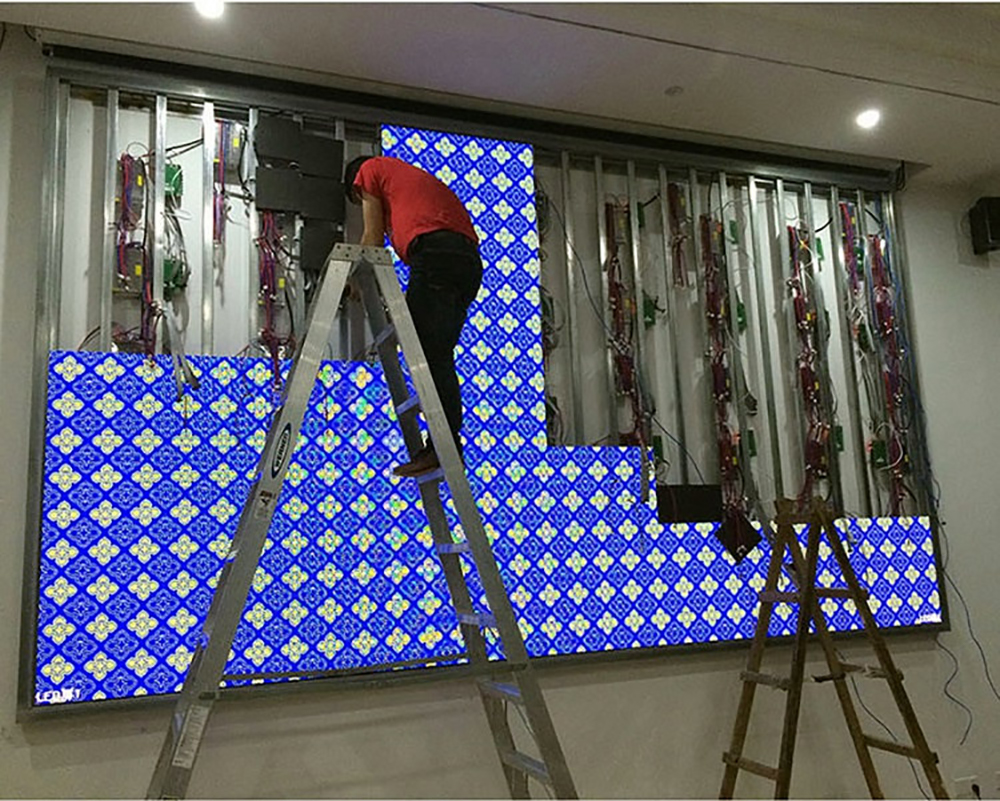

P8 outdoor led module can be assembled according to your needs of any size of led screen you need.

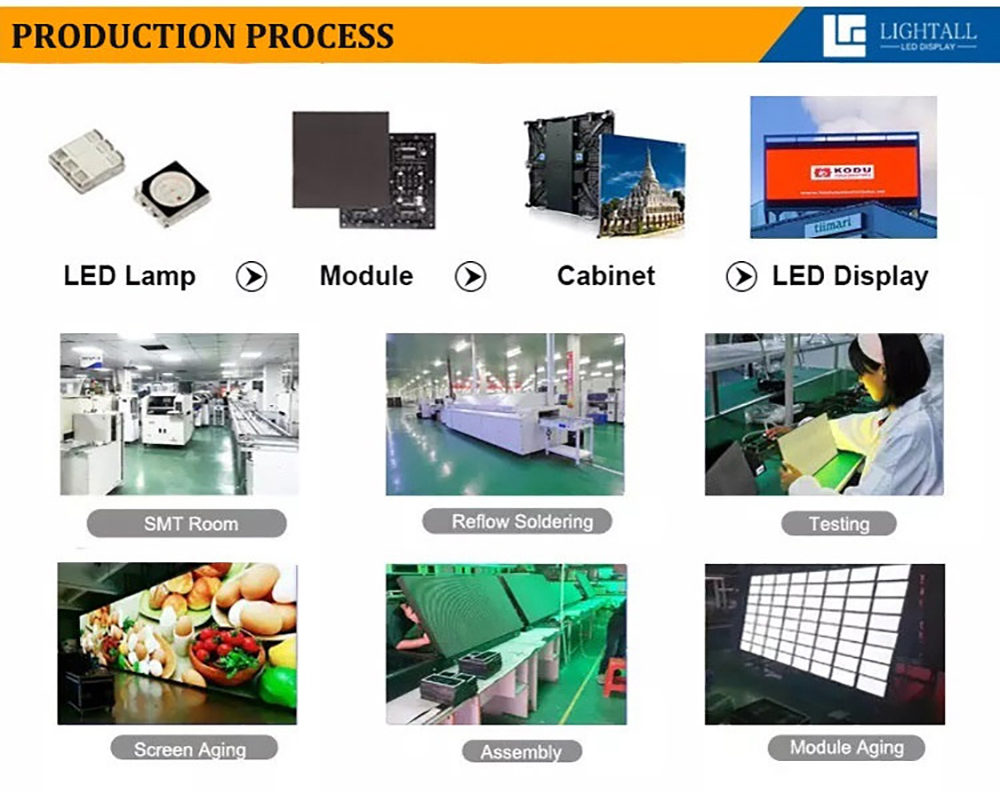

Production Process

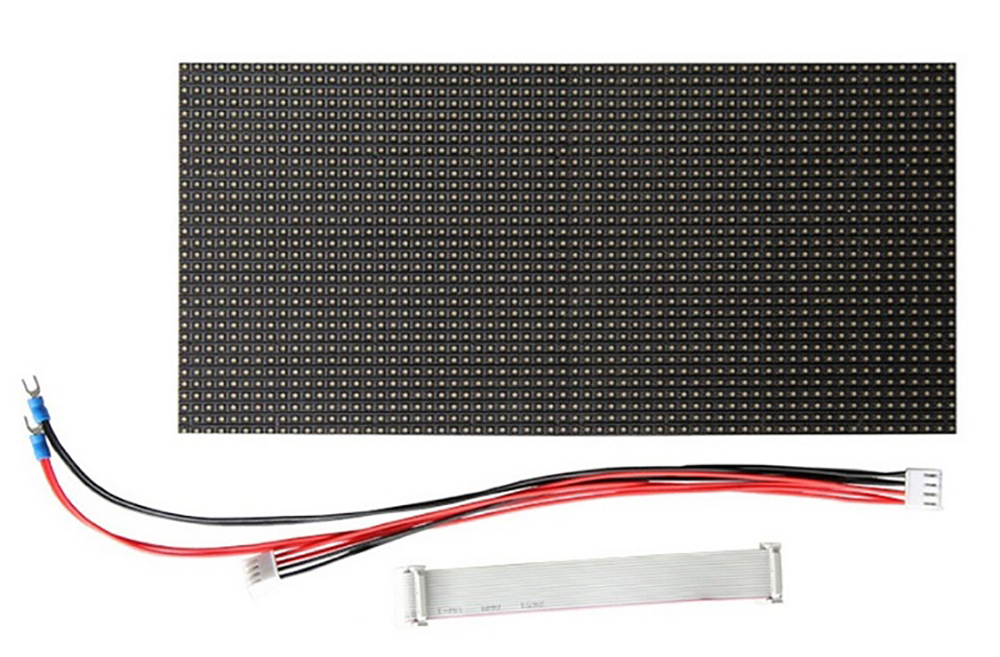

Packing List
* 1 pcs full color led module ( P8 Outdoor 320*160mm )
* 1 pcs data cable
* 1 pcs power cable ( If you buy N pcs, we will supply N/2 pcs power cable, because 1 pcs power cable support 2 modules )
In essence, a long-standing outdoor led sign modules organization runs on rational and scientific management techniques that were developed by smart and exceptional leaders. The leadership and organizational structures both guarantee that the business will offer competent and high-quality customer service.
To draw in more users and consumers, industry innovators are continually developing its qualities for a larger range of application scenarios. Additionally, it can be customized for clients and has a reasonable design, all of which help grow the customer base and loyalty.
The application of the QC process is crucial for the quality of the final product, and every organization needs a strong QC department. outdoor led sign modules QC department is committed to continual quality improvement and focuses on ISO Standards and quality assurance procedures. In these circumstances, the procedure may go more easily, effectively, and precisely. Our excellent certification ratio is a result of their dedication.
Shenzhen Lightall Optoelectronics Co., Ltd. always considers communicating through phone calls or video chat the most time-saving yet convenient way, so we welcome your call for asking for the detailed factory address. Or we've displayed our e-mail address on the website, you are free to write an E-mail to us about the factory address.
In China, ordinary working time is 40 hours for employees who work full time. In Shenzhen Lightall Optoelectronics Co., Ltd., most employees work abiding by this kind of rule. During their duty time, each of them devotes their full concentration to their work so as to provide customers with the highest-quality Indoor led display and an unforgettable experience of partnering with us.
Regarding the attributes and functionality of the outdoor led sign modules, it is a kind of product that will always be in vogue and offer consumers limitless benefits. It can be a long-lasting friend for people because it is constructed from high-quality raw materials and has a lengthy lifespan.
Established in 2013, Shenzhen Lighthall Optoelectronic Technology Co. LTD . is a professional led display manufacturer, who is integrated in R&D, manufacture, marketing and after-sale service.
