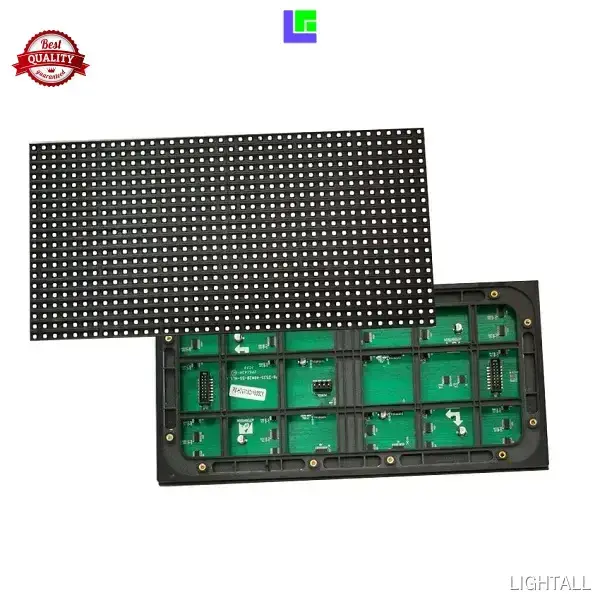

P8 outdoor led module 320x160mmr256x128mm Panel Led Display Full Color Company - LIGHTALL
Experience high-quality visuals that captivate your audience with our Outdoor P8 LED Module. Each module undergoes rigorous testing for over 72 hours before shipment, ensuring reliable performance upon installation. With the ability to customize your display size, this module is designed to meet all your LED screen requirements. Powered by a dedicated controller and power supply, trust in our confident solution to deliver stunning full-color displays that leave a lasting impression.
P8mm LED Screen Module 40*20pixel 320*160mm LED Matrix Panel Outdoor LED Display
Module Size: 320*160mm
Module Resolution: 40*20pixel
Technical Parameters
Outdoor P8 Full Color 40*20pixel LED Display Panel Matrix Module SMD LED Screen | |||
| Item | P8mm | Chip | Epistar |
| LED Type | SMD3535 | Pixel Pitch | 8mm |
| Pixel Configuration | 1R1G1B | Interface | HUB75 |
| Module Size | 320mm*160mm | Module Resolution | 40pixel * 20pixel |
| Pixel Density | 15625dots/m2 | Best view distance | ≧8m |
| Driving Method | 1/4 Scan | Brightness | ≧5500 |
| Viewing Angle | H:160° V: 140° | Working Voltage | DC5V |
| Warranty | 3 Years | Life Span | ≧100000hours |
P8 outdoor led module Screen Module Test
Each module was tested more than 72 hours before shipment.
LED Module Connection
The module need power supply and controller to driving.
P8 outdoor led module can be assembled according to your needs of any size of led screen you need.
Production Process
Packing List
* 1 pcs full color led module ( P8 Outdoor 320*160mm )
* 1 pcs data cable
* 1 pcs power cable ( If you buy N pcs, we will supply N/2 pcs power cable, because 1 pcs power cable support 2 modules )
