During the developing stage of LIGHTALL air velocity, choice of material, protrusion, and surface treatment have been seriously considered by the R&D department who strives to achieve optimized thermal dissipation effect.

Inquiry

At LIGHTALL, technology improvement and innovation are our core advantages. Since established, we have been focusing on developing new products, improving product quality, and serving customers. led module p10 We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product led module p10 or our company.Our customers say it is an ideal solution for device heat dissipation. It is thought to be the best thermal transducer to collect hot air and waste heat.

Product Detail

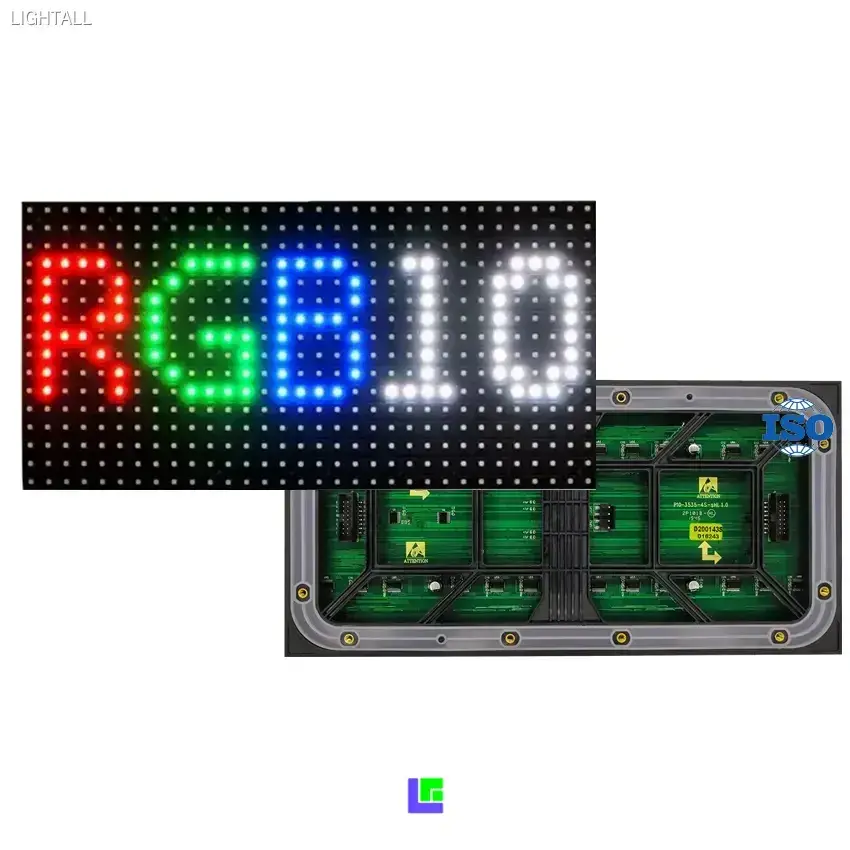

P10mm LED Display Module 32*16 Pixel 320*160mm LED Matrix Panel Outdoor LED Screen

Module Size: 320*160mm

Module Resolution: 32*16pixel

LIGHTALL | industry-leading led module p10 inquire now 7

Technical Parameters

Outdoor P10 Full Color 32*16pixel LED Display Panel Matrix Module SMD LED Screen
Item	P10mm	Chip	Epistar
LED Type	SMD3535	Pixel Pitch	10mm
Pixel Configuration	1R1G1B	Interface	HUB75
Module Size	320mm*160mm	Module Resolution	32pixel * 16pixel
Pixel Density	10000dots/m2	Best view distance	≧10m
Driving Method	1/4 Scan	Brightness	≧5500
Viewing Angle	H:160° V: 140°	Working Voltage	DC5V
Warranty	3 Years	Life Span	≧100000hours

P10 320*160mm LED Display Module Details

LIGHTALL | industry-leading led module p10 inquire now 8

LIGHTALL | industry-leading led module p10 inquire now 9

LIGHTALL | industry-leading led module p10 inquire now 10

LED Display Screen Module Test

Each module was tested more than 72 hours before shipment.

LIGHTALL | industry-leading led module p10 inquire now 11

LED Module Connection

The module need power supply and controller to driving.

LIGHTALL | industry-leading led module p10 inquire now 12

It can be assembled according to your needs of any size of led screen you need.

LIGHTALL | industry-leading led module p10 inquire now 13

Production Process

LIGHTALL | industry-leading led module p10 inquire now 14

Packing List

* 1 pcs full color led module ( P10 Outdoor 320*160mm )
* 1 pcs data cable
* 1 pcs power cable ( If you buy N pcs, we will supply N/2 pcs power cable, because 1 pcs power cable support 2 modules )

LIGHTALL | industry-leading led module p10 inquire now 15

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
