LIGHTALL | leading solutions large led screen hire factory

Set up years ago, LIGHTALL is a professional manufacturer and also a supplier with strong capabilities in production, design, and R&D. large led screen hire We have been investing a lot in the product R&D, which turns out to be effective that we have developed large led screen hire. Relying on our innovative and hard-working staff, we guarantee that we offer customers the best products, the most favorable prices, and the most comprehensive services as well. Welcome to contact us if you have any questions.The product has a precise dimension and other parameters. Machined by CNC machine, it is cut and processed under the precise numerical control of every detail.

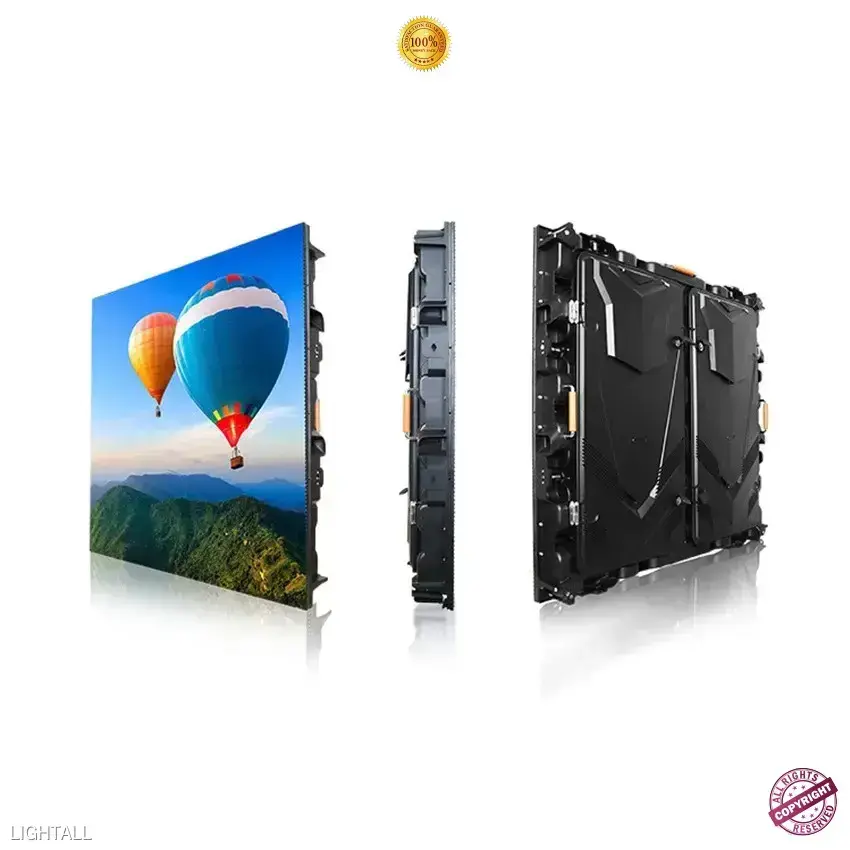

Panel Details

Panel measure: 960mm(W)*960mm(H)*85mm(T)

Panel thickness: Die casting aluminum cabinet, high strength,high tenacity,high precision, not easy to deform, thickness only for 85mm.

Weight: 25kg/cabinet.

Flat: flatness error ≦0.2mm, effectively eliminate mosaic phenomenon.

Fast Installation: cabinet use fast lock, two seconds locked adjacent cabinets, air plug wiring connect more fast.

Easy maintenance: magnetic modular design, any position breakdown can easy to front service and insta llation.

Compatibility design: indoor and outdoor use, allow various pixel pitch.

High gray, high refresh, gray 13 bit, refresh rate 3840Hz.

High Refresh Rental LED Screen With Front And Rear Maintenance

Indoor and outdoor led screen for option,module magnetic installation, front and rear maintenance,die casting aluminum cabinet,ultra-high flatness,

whole screen flatness error <=0.01mm.

The cabinets of different batches are of the same, solid and durable, not easy to deform, high protection, weather and salt spray corrosion resistance.

Seamless Splicing

Whole led screen flatness error <=0.01mm.

The cabinets of different batches are of the same size, solid and durable,not easy to deform.

Test

Each led screen was tested more than 72 hours before shipment.

Application

The led display screen can be used in many fields and occasions.

For example: events, sports, trade show, entertainment, concert, house of worship, wedding,exhibition, etc.

ONE-STOP SUPPLY

FQA

Parameters

Products series	P2.5	P3	P5	P6	P8	P10
Pixel pitch	2.5mm	3mm	5mm	6mm	8mm	10mm
Cabinet size	960(W)x960(H)x85(T)mm
Cabinet resolution(dots)	384x384	320x320	192x192	160x160	120x120	96x96
Best view distance	≧2m	≧3m	≧5m	≧6m	≧8m	≧10m
Pixel Density(dots/m2)	160000	111111	40000	27777	15625	10000
Brightness	Indoor≧1300CD, Outdoor≧5500CD
Cabinet Weight	25kg
Waterproof level	Indoor IP43/Outdoor IP65
Refresh Rate	3840Hz
Warranty	3 Years
Life Span	≧100000hours

---
