LIGHTALL- Focus On LED Screen Field For More Than 10 Years.
LIGHTALL | quality outdoor led screen hire manufacturer
After years of solid and rapid development, LIGHTALL has grown into one of the most professional and influential enterprises in China. outdoor led screen hire LIGHTALL is a comprehensive manufacturer and supplier of high-quality products and one-stop service. We will, as always, actively provide prompt services such. For more details about our outdoor led screen hire and other products, just let us know.The product has good heat dissipation. is created to increase the contact surface area between solid and fluid, hence increasing the effectiveness of heat transfer.

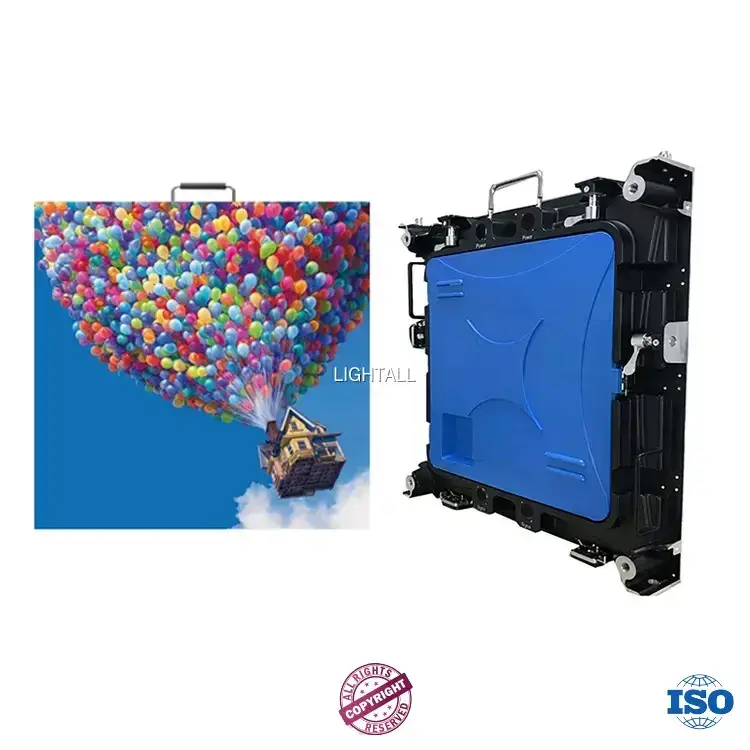

Panel measure: 512mm(W)*512mm(H)*85(T)mm
Panel thickness: Die casting aluminum cabinet, high strength, high tenacity,high precision, not easy to deform, thickness only for 85mm.
Weight: 8.5kg/cabinet,one person can carry,saving time and effort.
Flat: flatness error ≦0.2mm, effectively eliminate mosaic phenomenon.
Fast Installation: cabinet use fast lock, two seconds locked adjacent cabinets, air plug wiring connect more fast.
Easy maintenance: magnetic modular design, any position breakdown can easy to front service and install ation.
Compatibility design: indoor and outdoor use, allow various pixel pitch.
High gray, high refresh, gray 13 bit, refresh rate 3840Hz.
Perfect LED Display
Perfor mance
Corner Protection For LED Panel
There are four protectionequipments for LEDcabinet corners,
protectthe LED from damageduring transportationand installation
LED Cabinet Size
Haning & Stacking lnstallation
Oudoor Application
Indoor Application
Parameters
| Products series | P2 | P4 | P8 |
| Pixel pitch | 2mm | 4mm | 8mm |
| Cabinet size | 512x512x85mm | 512x512x85mm | 512x512x85mm |
| Cabinet resolution | 256x256dots | 128x128dots | 64x64dots |
| Best view distance | ≧2m | ≧4m | ≧8m |
| Pixel Density | 250000dots/㎡ | 62500dots/㎡ | 15625dots/㎡ |
| Best view distance | ≧2m | ≧4m | ≧8m |
| Brightness | Indoor≧1200CD,Outdoor≧5500CD | ||
| Cabinet Weight | 8.5kg | ||
| Waterproof level | Indoor IP43/Outdoor IP65 | ||
| Refresh Rate | 3840Hz | ||
| Warranty | 3 Years | ||
| Life Span | ≧100000hours | ||
Established in 2013, Shenzhen Lightall Optoelectronic Technology Co. Ltd. Is a Professional LED Display Manufacturer, Who Is Integrated in R&d, Manufacture, Marketing and After-Sale Service.
