At LIGHTALL, technology improvement and innovation are our core advantages. Since established, we have been focusing on developing new products, improving product quality, and serving customers. video wall rental near me We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product video wall rental near me or our company.Many of our customers appreciate that it is highly resistant to corrosion even it is applied in the humid environment.
Product Detail

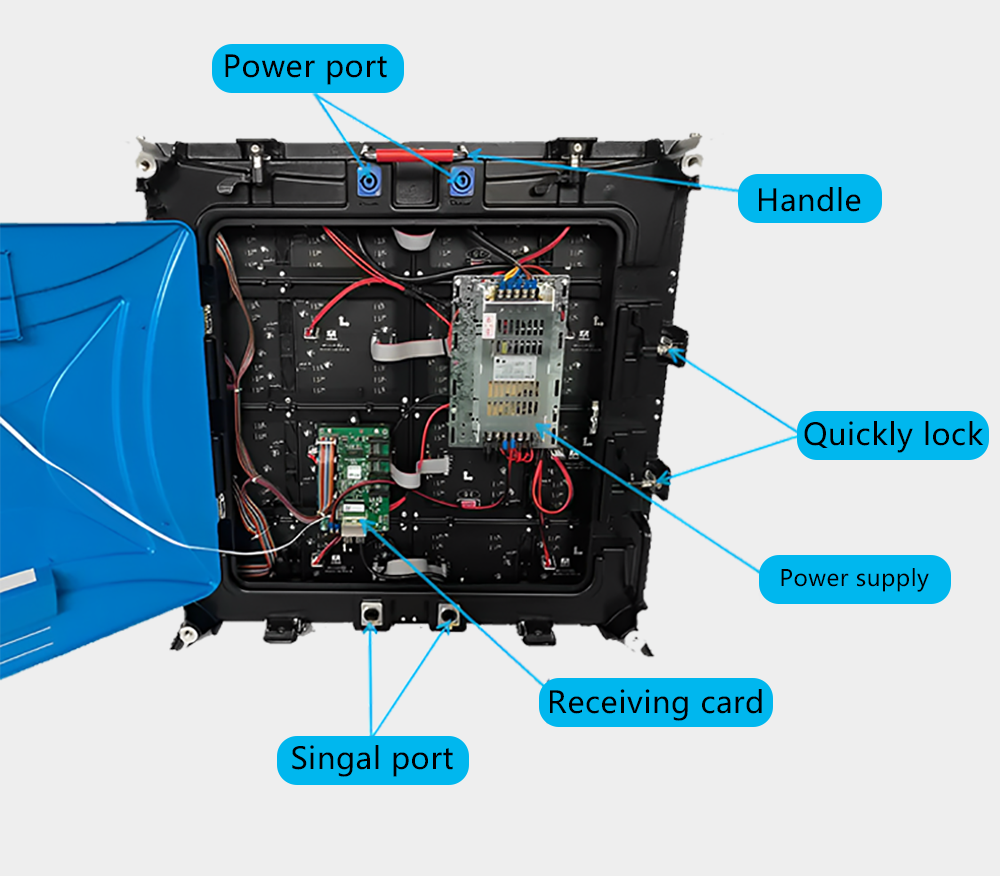

Panel Details
Panel measure: 640mm(W)*640mm(H)*85(T)mm
Panel thickness: Die casting aluminum cabinet, high strength,high tenacity,high precision, not easy to deform, thickness only for 85mm.
Weight: 8.5kg/cabinet,one person can carry,saving time and effort.
Flat: flatness error ≦0.2mm, effectively eliminate mosaic phenomenon.
Fast Installation: cabinet use fast lock, two seconds locked adjacent cabinets, air plug wiring connect more fast.
Easy maintenance: magnetic modular design, any position breakdown can easy to front service and installation.
Compatibility design: indoor and outdoor use, allow various pixel pitch.
High gray, high refresh, gray 13 bit, refresh rate 3840Hz.
Perfect LED Display
Perfor mance
Corner ProtectionFor LED Panel
There are four protectionequipments for LEDcabinet corners,
protectthe LED from damageduring transportationand installation

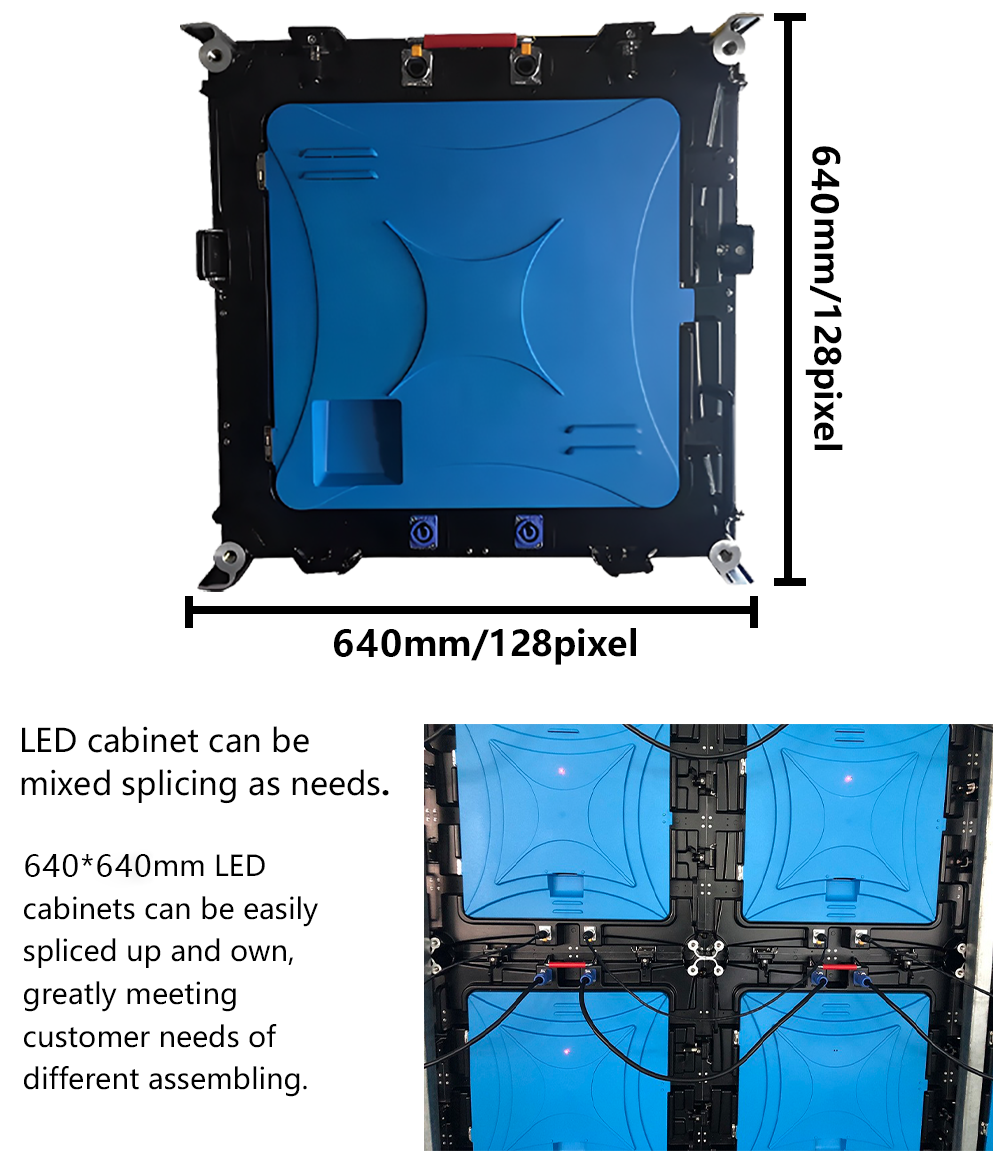

LED CabinetSize

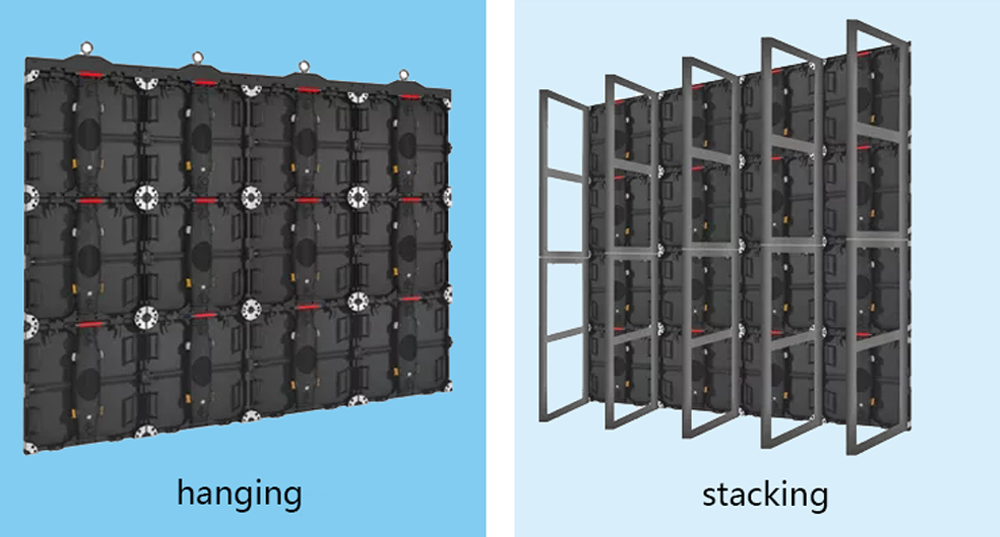

Haning & Stackinglnstallation
Oudoor Applicationt

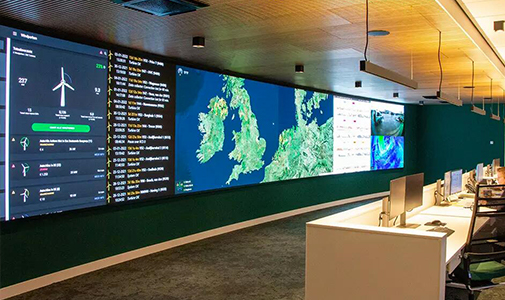

Indoor Application

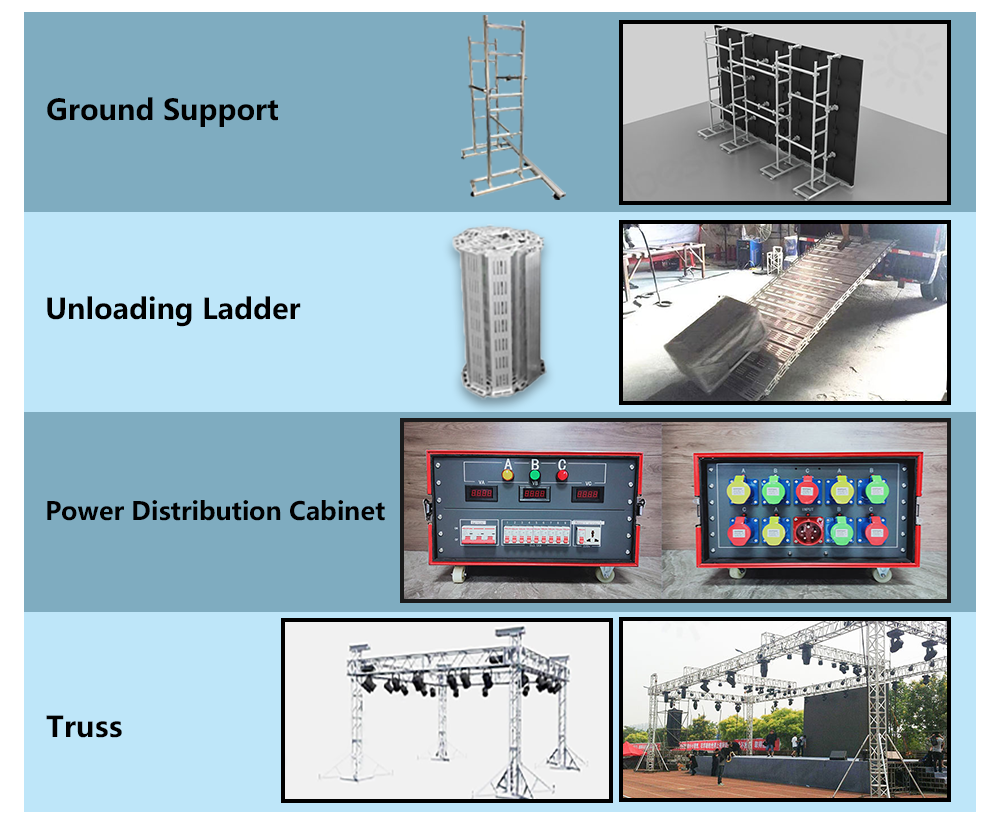

ONE-STOP SUPPLY
FAQ
| Products series | P2.5 | P5 | P10 |
| Pixel pitch | 2.5mm | 5mm | 10mm |
| Cabinet size | 640(W)x640(H)x85(T)mm | 640(W)x640(H)x85(T)mm | 640(W)x640(H)x85(T)mm |
| Cabinet resolution | 256x256dots | 128x128dots | 64x64dots |
| Best view distance | ≧2m | ≧5m | ≧10m |
| Pixel Density | 160000dots/㎡ | 40000dots/㎡ | 10000dots/㎡ |
| Best view distance | ≧2m | ≧5m | ≧10m |
| Brightness | Indoor≧1300CD, Outdoor≧5500CD | ||
| Cabinet Weight | 10.5kg | ||
| Waterproof level | Indoor IP43/Outdoor IP65 | ||
| Refresh Rate | 3840Hz | ||
| Warranty | 3 Years | ||
| Life Span | ≧100000hours | ||
Established in 2013, Shenzhen Lighthall Optoelectronic Technology Co. LTD . is a professional led display manufacturer, who is integrated in R&D, manufacture, marketing and after-sale service.
