Custom led wall rental factory Manufacturer | LIGHTALL

LIGHTALL has developed to be a professional manufacturer and reliable supplier of high-quality products. Throughout the whole production process, we strictly implement the ISO quality management system control. Since established, we always adhere to independent innovation, scientific management, and continuous improvement, and provide high-quality services to meet and even exceed customers' requirements. We guarantee our new product led wall rental will bring you a lot of benefits. We are always standby to receive your inquiry. led wall rental We have professional employees who have years of experience in the industry. It is them that provides high-quality services for customers all over the world. If you have any questions about our new product led wall rental or want to know more about our company, feel free to contact us. Our professionals would love to help you at any time.During the development of LIGHTALL led wall rental, the interface with the device issue is taken into consideration with the purpose of reducing the tiny air gaps between the component and the product.

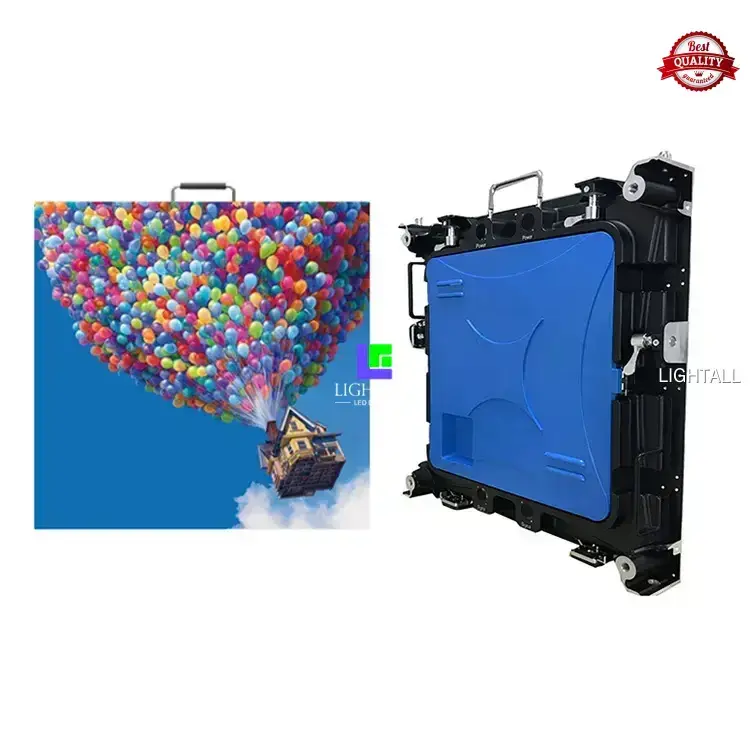

Panel Details

Panel measure: 512mm(W)*512mm(H)*85(T)mm

Panel thickness: Die casting aluminum cabinet, high strength, high tenacity,high precision, not easy to deform, thickness only for 85mm.

Weight: 8.5kg/cabinet,one person can carry,saving time and effort.

Flat: flatness error ≦0.2mm, effectively eliminate mosaic phenomenon.

Fast Installation: cabinet use fast lock, two seconds locked adjacent cabinets, air plug wiring connect more fast.

Easy maintenance: magnetic modular design, any position breakdown can easy to front service and install ation.

Compatibility design: indoor and outdoor use, allow various pixel pitch.

High gray, high refresh, gray 13 bit, refresh rate 3840Hz.

Perfect LED Display

Perfor mance

Corner Protection For LED Panel

There are four protectionequipments for LEDcabinet corners,

protectthe LED from damageduring transportationand installation

LED Cabinet Size

Haning & Stacking lnstallation

Oudoor Application

Indoor Application

Parameters

Products series	P2	P4	P8
Pixel pitch	2mm	4mm	8mm
Cabinet size	512x512x85mm	512x512x85mm	512x512x85mm
Cabinet resolution	256x256dots	128x128dots	64x64dots
Best view distance	≧2m	≧4m	≧8m
Pixel Density	250000dots/㎡	62500dots/㎡	15625dots/㎡
Best view distance	≧2m	≧4m	≧8m
Brightness	Indoor≧1200CD,Outdoor≧5500CD
Cabinet Weight	8.5kg
Waterproof level	Indoor IP43/Outdoor IP65
Refresh Rate	3840Hz
Warranty	3 Years
Life Span	≧100000hours

---
