High-Quality HD Large Outdoor Led Video Wall Panel - Wise Choice, Big Stage
Product features

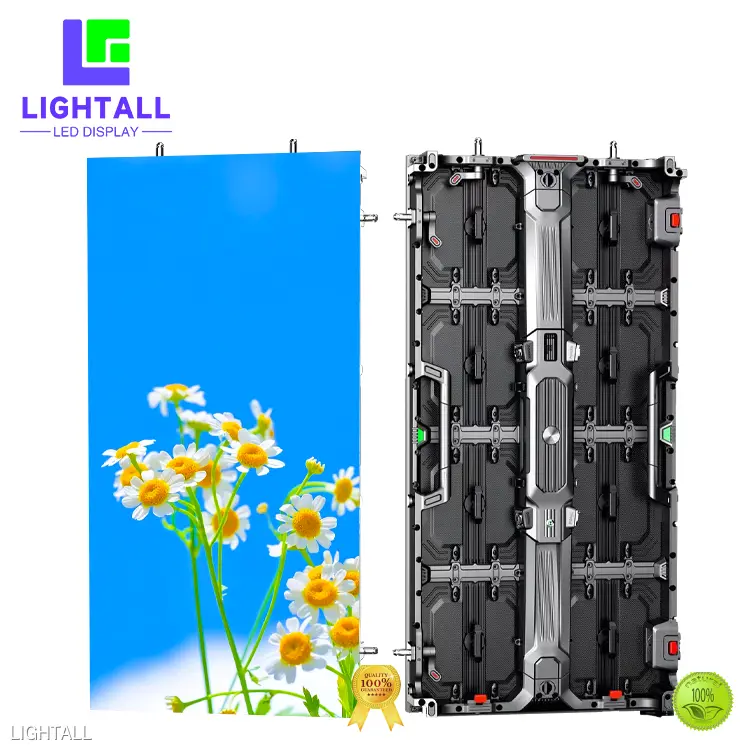

The high-quality HD large outdoor LED video wall panel of the D series is the perfect choice for creating a big stage with its flexible 500*500mm panel and quick assembly of the 500*1000mm large size panel. Offering stunning visual experiences with high brightness and refresh rate, this product is suitable for mobile LED screen hire for any event. Featuring excellent curving capabilities, anti-collision design, and high-quality cable connectors, the D series ensures stable power and data signal transmission, easy installation, and durability in various environments.
Team strength
The high-quality HD Large Outdoor Led Video Wall Panel is the ultimate choice for big stages. Its outstanding features and impeccable performance showcase the team strength behind its creation. With a dedicated team of experts in technology and design, this product has been meticulously crafted to exceed expectations. The seamless collaboration and combined expertise of our team have resulted in a superior product that delivers exceptional visual experiences. Trust in the strength of our team to bring you the best in LED technology for your outdoor events. Choose quality, choose teamwork, choose the best - choose our LED video wall panel.
Enterprise core strength
The High-Quality HD Large Outdoor Led Video Wall Panel is a testament to the strength of our team here at Wise Choice, Big Stage. Our team of experts have worked tirelessly to design and create a superior product that delivers unparalleled performance and reliability. With a focus on innovation and customer satisfaction, our team has brought together cutting-edge technology and high-quality materials to bring you a product that will exceed your expectations. Trust in our team's dedication and expertise to provide you with a truly exceptional outdoor LED video wall panel that will elevate your visual experience to new heights.
I SERIES
Never Black Screen Events LED Display
1. Energy-Saving and Low Power Consumption;
2. Even Current Backup for Power Supply, Never Black Screen;
3. Great Heat-Dssipation, Low Temperature Rise, Waterprof IP65;
4. Modularization Design, Easily Front and Rear Maintenance;
5. 3840Hz- 7680Hz High Refreshing Ratio Picture;
6. It can be instant to be Tile Floor Screen or Magic Cube Screen;
7. Our Private Mode, Excellent Quality and Service;
Size：1000*500*85mm, weight: 20kg.
Waterproof IP65
Both cabinet and module are waterproof.
Protect led display from rain, snow and
dust in all weather
Curved Design
Innovative lock system with +15 to -15 curve degrees options, to do the creative screen design.
MIXED SPLICING
500x500mm and 500x 1000mm cabinets can be easily spliced up and down, greatly satisfying different needs of assembling.
Multiple Installation Methods
Hanging and stacking installation solutions are both available to easily cope with the diverse requirements of the site environment.
Moreover, holes have been reserved for tying nylon ties to support the installation of square tube trusses, saving more labor and material costs.
APPLICATION
Parameters
| Item | P1.953 | P 2.5 | P2.604 | P2.976 | P3.91 | P4.81 |
| Pixel pitch | 1.953mm | 2.5mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Cabinet size(mm) | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 |
Cabinet resolution (dots) | 256*256/256*512 | 200*200/200*400 | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 104*104/104*208 |
| Best view distance | ≥1.5m | ≥2m | ≥2m | ≥2.5m | ≥3m | ≥4m |
| Pixel Density | 262144dots/㎡ | 160000dots/㎡ | 147456dots/㎡ | 112896dots/㎡ | 65410dots/㎡ | 43264dots/㎡ |
| Brightness | Indoor ≥1000cd, Outdoor ≥4500cd | |||||
| Cabinet Weight | 500x500mm panel 8.5kg / 500x1000mm panel 13kg | |||||
| Waterproof level | IP65 | |||||
| Refresh Rate | 3840-7680Hz | |||||
| Warranty | 3 Years | |||||
| Life Span | ≧100000hours | |||||
| Working Voltage | 100-240V, 60Hz | |||||
| Humidity-operating | 10%～90% | |||||
| Operating temperature | -30ºC~65ºC | |||||
