LIGHTALL- Focus On LED Screen Field For More Than 10 Years.
Set up years ago, LIGHTALL is a professional manufacturer and also a supplier with strong capabilities in production, design, and R&D. led display screen for rent Having devoted a lot to product development and service quality improvement, we have established a high reputation in the markets. We promise to provide every customer throughout the world with prompt and professional service covering the pre-sales, sales, and after-sales services. No matter where you are or what business you are engaged in, we'd love to help you deal with any issue. If you want to know more details about our new product led display screen for rent or our company, feel free to contact us.Efficient heat transfer is one of its biggest selling points. The materials' thermal conductivity is high and has relations to their heat dissipation efficiency.
I SERIES

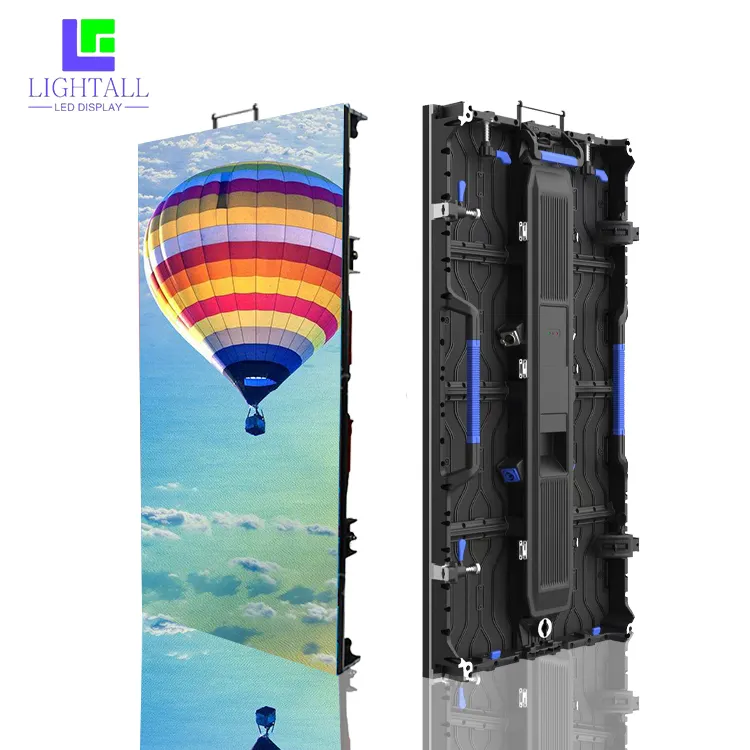

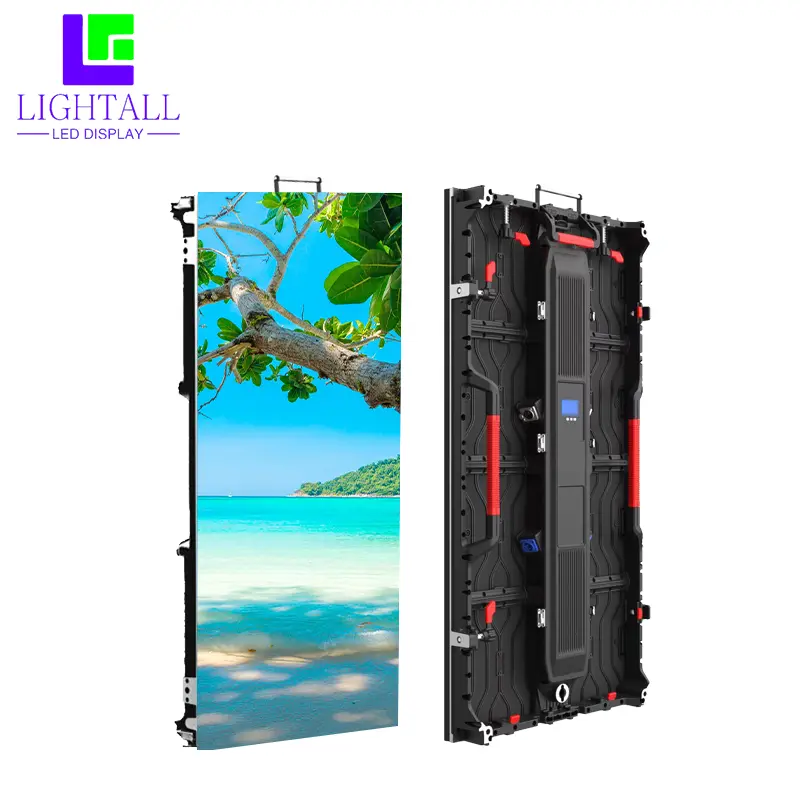

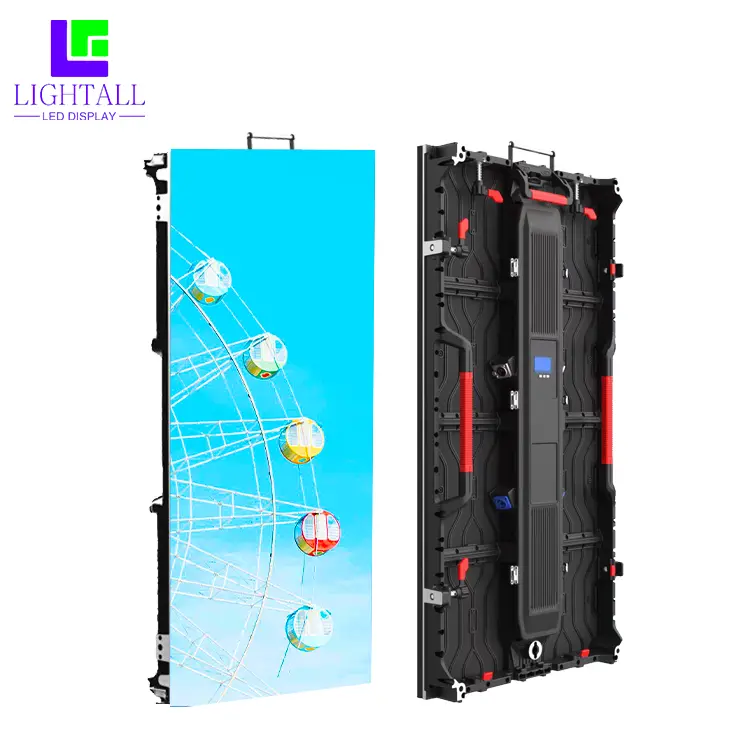

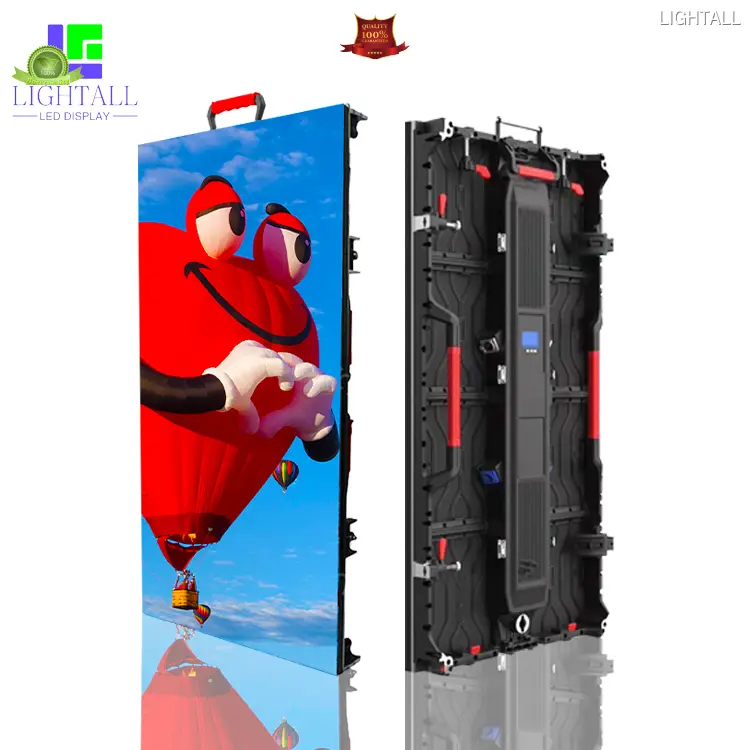

Never Black Screen Events LED Display
1. Energy-Saving and Low Power Consumption;
2. Even Current Backup for Power Supply, Never Black Screen;
3. Great Heat-Dssipation, Low Temperature Rise, Waterprof IP65;
4. Modularization Design, Easily Front and Rear Maintenance;
5. 3840Hz- 7680Hz High Refreshing Ratio Picture;
6. It can be instant to be Tile Floor Screen or Magic Cube Screen;
7. Our Private Mode, Excellent Quality and Service;
Size:1000*500*85mm, weight: 20kg.
Waterproof IP65
Both cabinet and module are waterproof.
Protect led display from rain, snow and
dust in all weather
Curved Design
Innovative lock system with +15 to -15 curve degrees options, to do the creative screen design.

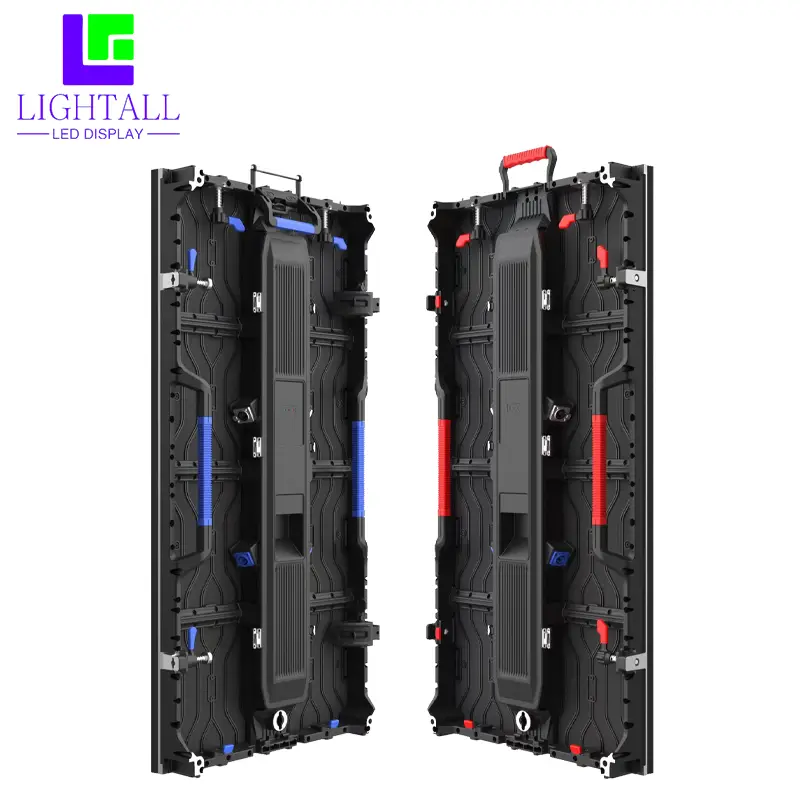

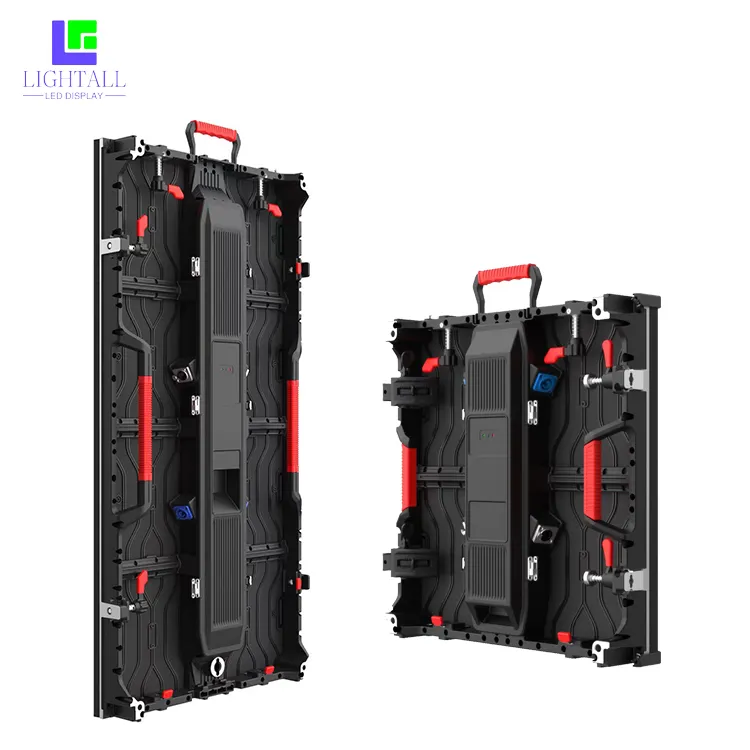

MIXED SPLICING
500x500mm and 500x 1000mm cabinets can be easily spliced up and down, greatly satisfying different needs of assembling.
Multiple Installation Methods
Hanging and stacking installation solutions are both available to easily cope with the diverse requirements of the site environment.
Moreover, holes have been reserved for tying nylon ties to support the installation of square tube trusses, saving more labor and material costs.
APPLICATION
Parameters
Item | P1.953 | P 2.5 | P2.604 | P2.976 | P3.91 | P4.81 |
Pixel pitch | 1.953mm | 2.5mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
Cabinet size(mm) | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 |
Cabinet resolution (dots) | 256*256/256*512 | 200*200/200*400 | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 104*104/104*208 |
Best view distance | ≥1.5m | ≥2m | ≥2m | ≥2.5m | ≥3m | ≥4m |
Pixel Density | 262144dots/㎡ | 160000dots/㎡ | 147456dots/㎡ | 112896dots/㎡ | 65410dots/㎡ | 43264dots/㎡ |
Brightness | Indoor ≥1000cd, Outdoor ≥4500cd | |||||
Cabinet Weight | 500x500mm panel 8.5kg / 500x1000mm panel 13kg | |||||
Waterproof level | IP65 | |||||
Refresh Rate | 3840-7680Hz | |||||
Warranty | 3 Years | |||||
Life Span | ≧100000hours | |||||
Working Voltage | 100-240V, 60Hz | |||||
Humidity-operating | 10%~90% | |||||
Operating temperature | -30ºC~65ºC |
