LIGHTALL- Focus On LED Screen Field For More Than 10 Years.
Guided by scientific and technological innovation, LIGHTALL always keeps outward-oriented and sticks to the positive development on the basis of technological innovation. led screen van on rent We have professional employees who have years of experience in the industry. It is them that provides high-quality services for customers all over the world. If you have any questions about our new product led screen van on rent or want to know more about our company, feel free to contact us. Our professionals would love to help you at any time.The product has excellent mechanical strength and loading capacity. It is treated with die-casting under high-temperature and high-pressure conditions, therefore its structure is firm and tough.
I SERIES

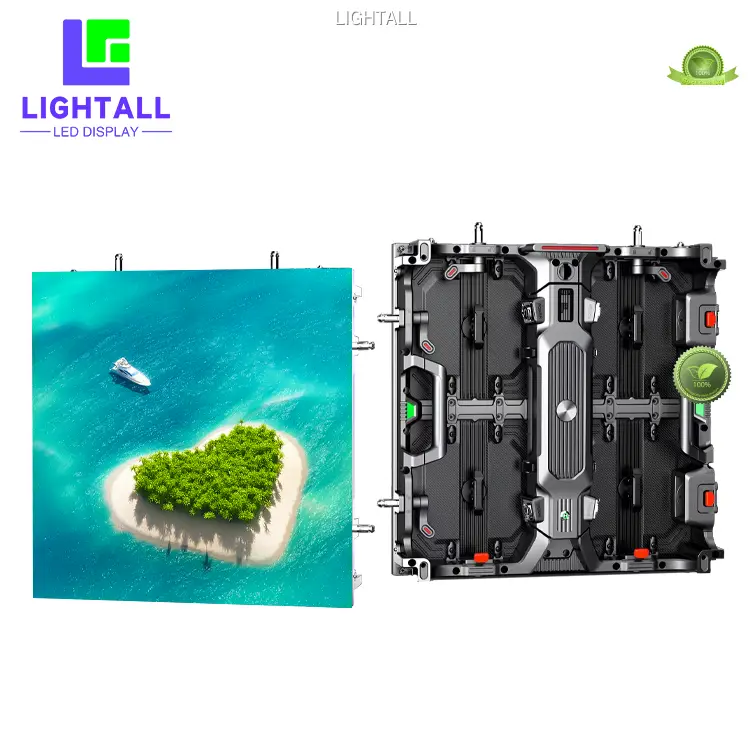

Never Black Screen Events LED Display
1. Energy-Saving and Low Power Consumption;
2. Even Current Backup for Power Supply, Never Black Screen;
3. Great Heat-Dssipation, Low Temperature Rise, Waterprof IP65;
4. Modularization Design, Easily Front and Rear Maintenance;
5. 3840Hz- 7680Hz High Refreshing Ratio Picture;
6. It can be instant to be Tile Floor Screen or Magic Cube Screen;
7. Our Private Mode, Excellent Quality and Service;
Size:500*500*85mm, weight: 8.5kg.
Waterproof IP65
Both cabinet and module are waterproof.
Protect led display from rain, snow and
dust in all weather
Curved Design
Innovative lock system with +15 to -15 curve degrees options, to do the creative screen design.
MIXED SPLICING
500x500mm and 500x 1000mm cabinets can be easily spliced up and down, greatly satisfying different needs of assembling.
Multiple Installation Methods
Hanging and stacking installation solutions are both available to easily cope with the diverse requirements of the site environment.
Moreover, holes have been reserved for tying nylon ties to support the installation of square tube trusses, saving more labor and material costs.
APPLICATION
Parameters
Item | P1.953 | P 2.5 | P2.604 | P2.976 | P3.91 | P4.81 |
Pixel pitch | 1.953mm | 2.5mm | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
Cabinet size(mm) | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 | 500x500/500x1000 |
Cabinet resolution (dots) | 256*256/256*512 | 200*200/200*400 | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 104*104/104*208 |
Best view distance | ≥1.5m | ≥2m | ≥2m | ≥2.5m | ≥3m | ≥4m |
Pixel Density | 262144dots/㎡ | 160000dots/㎡ | 147456dots/㎡ | 112896dots/㎡ | 65410dots/㎡ | 43264dots/㎡ |
Brightness | Indoor ≥1000cd, Outdoor ≥4500cd | |||||
Cabinet Weight | 500x500mm panel 8.5kg / 500x1000mm panel 13kg | |||||
Waterproof level | IP65 | |||||
Refresh Rate | 3840-7680Hz | |||||
Warranty | 3 Years | |||||
Life Span | ≧100000hours | |||||
Working Voltage | 100-240V, 60Hz | |||||
Humidity-operating | 10%~90% | |||||
Operating temperature | -30ºC~65ºC |
