Lightall Stadium LED Display
Large Stadium Sport Events Soccer Field Advertising Perimeter Led Screen
Three-high Design and Excellent Visual Effect for Live Video
High refresh rate up to 3840Hz, no scanning line and color patch by HD camera;
High grey scale up to 16 bit, making the image vivid and sharp;
High brightness up to 7000 nits, making the image clear enough even in the sun directly.
Quick installation maintenance,
Stronger more accurate cabinet frame.
High definition resolution.
Humanization Design
With special soft screen mask and cabinet cover, it can protect the players from being hurt during the match.
Angle Adjustable 75-90 degrees

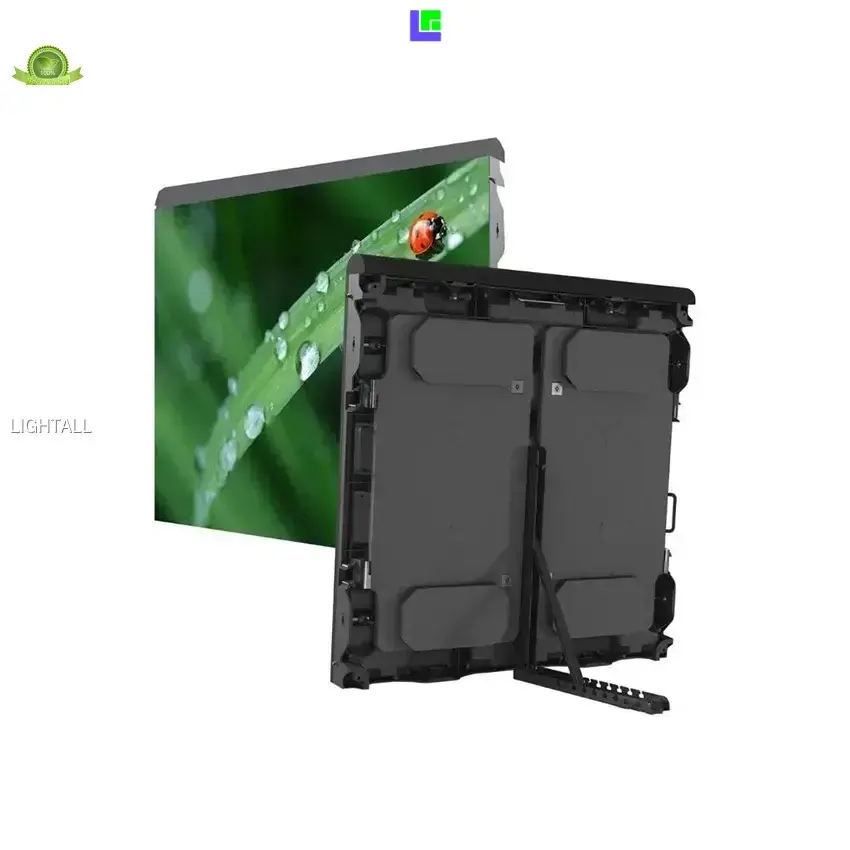

Independent Ground Support Structure, More Stable than You Think
The angle of the ground support structure can be adjusted as you need, to suit the best viewing angle for audience and cameras.
Hot Backup Data System
Adopt dual data line/controller backup design, when one data line/controller breaks down, the other data line/controller will start to work automatically, ensure the continuous work of the screen in live broadcast.
High IP Rating Suited for Outdoor Use
It can both be used indoors and outdoors, as it is equipped with the latest outdoor SMD technology. And thanks to its full IP65 rating - it is completely waterproof.
High Standard Aviation Connector
The professional aviation connectors enable multiple plug and unplug, and it’s full waterproof. It ensures the stable and reliable of the screen especially in some important occasions.
Application
The stadium led display are perfect for various sports stadium, such as rink, basketball court, football field, hockey field, rugby filed, and etc.
Parameters
| Products series | P6 | P8 | P10 |
| Pixel pitch | 6mm | 8mm | 10mm |
| Cabinet size | 960x960mm | 960x960mm | 960x960mm |
| Cabinet resolution | 160x160dots | 120x120dots | 96x96dots |
| Brightness | ≧6500CD | ≧6500CD | ≧6500CD |
| Best view distance | ≧6m | ≧8m | ≧10m |
| Pixel Density | 62500dots/㎡ | 40000dots/㎡ | 27777dots/㎡ |
| Best view distance | ≧4m | ≧5m | ≧6m |
| Cabinet Weight | 35kg | ||
| Waterproof level | IP65 | ||
| Refresh Rate | 3840Hz | ||
| Warranty | 3 years | ||
| Life Span | ≧1000000hours | ||
