LIGHTALL- Focus On LED Screen Field For More Than 10 Years.
Set up years ago, LIGHTALL is a professional manufacturer and also a supplier with strong capabilities in production, design, and R&D. stage rental led display We have been investing a lot in the product R&D, which turns out to be effective that we have developed stage rental led display. Relying on our innovative and hard-working staff, we guarantee that we offer customers the best products, the most favorable prices, and the most comprehensive services as well. Welcome to contact us if you have any questions.LIGHTALL is designed by the designing department who aims to enlarge the heat radiating area by designing it into a groove shape. In this way, the heat transfer area is largened.
Panel measure: 576mm(W)*576mm(H)*85(T)mm
Panel thickness: Die casting aluminum cabinet, high strength,high tenacity, high precision, not easy to deform, thickness only for 85mm.
Weight: 8.5kg/cabinet, one person can carry, saving time and effort.
Flat: flatness error ≦0.2mm, effectively eliminate mosaic phenomenon.
Fast Installation: cabinet use fast lock, two seconds locked adjacent cabinets, air plug wiring connect more fast.
Easy maintenance: magnetic modular design, any position breakdown can easy to front service and install ation.
Compatibility design: indoor and outdoor use, allow various pixel pitch.
High gray, high refresh, gray 13 bit, refresh rate 3840Hz.
Perfect LED Display
Perfor mance

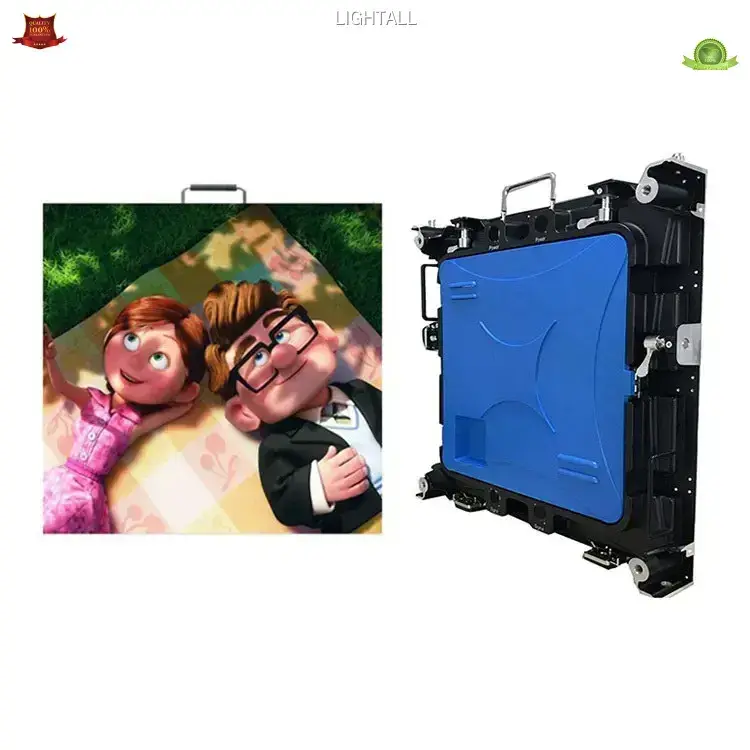

LED Cabinet Size
Haning & Stacking lnstallation
Oudoor Application
Parameters
Products series | P3 | P6 |
Pixel pitch | 3mm | 6mm |
Cabinet size | 576x576x85mm | 576x576x85mm |
Cabinet resolution | 256x256dots | 128x128dots |
Best view distance | ≧2m | ≧4m |
Pixel Density | 250000dots/㎡ | 62500dots/㎡ |
Best view distance | ≧2m | ≧4m |
Brightness | Indoor≧1200CD,Outdoor≧5500CD | |
Cabinet Weight | 8.5kg | |
Waterproof level | Indoor IP43/Outdoor IP65 | |
Refresh Rate | 3840Hz | |
Warranty | 3 Years | |
Life Span | ≧100000hours |
