5x3m Led Video Wall System Indoor P2.6mm Led Screen 16.4x9.84ft Led Display 1

5x3m Led Video Wall System Indoor P2.6mm Led Screen 16.4x9.84ft Led Display 2

5x3m Led Video Wall System Indoor P2.6mm Led Screen 16.4x9.84ft Led Display 3

5x3m Led Video Wall System Indoor P2.6mm Led Screen 16.4x9.84ft Led Display 4

5x3m Led Video Wall System Indoor P2.6mm Led Screen 16.4x9.84ft Led Display 5

5x3m Led Video Wall System Indoor P2.6mm Led Screen 16.4x9.84ft Led Display

✔ 500*500*500*1000mm thickness80mm LED Display Cabinet
✔ Lightweight and Thin
✔ Perfect Structure
✔ Support Right Angle Installation (Optional)
✔ Detachable Back Cover
✔ Front & Rear Maintenance
✔ IP65 Waterproof
✔ Curved Installation (Optional)

price:

price

Inquiry

Write a Review

LED Video Wall System

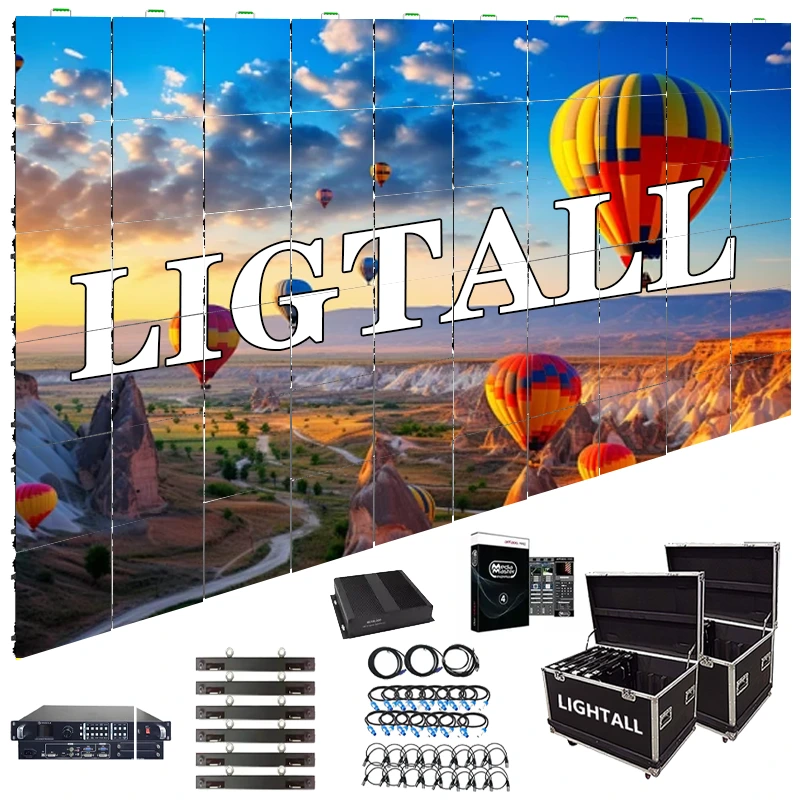

Turnkey led video wall system, including led panels+fight case+hanging beam +all cables+control box/video processor +software

What's included :

Led video panels; Led video processor; Rigging Bar; Power cables; Power interconnect cables; Signal cables; Signal interconnect cables; Flight Case

5x3m Led Video Wall System Indoor P2.6mm Led Screen 16.4x9.84ft Led Display 7

ONE -STOP SUPPLY

We also provide the ground support, truss, power distribution box and truss, please feel free to contact us if you need.

5x3m Led Video Wall System Indoor P2.6mm Led Screen 16.4x9.84ft Led Display 8

MI XED SPLICING

500x500mm and 500x 1000mm cabinets can be easily spliced up and down, greatly satisfying different needs of assembling.

5x3m Led Video Wall System Indoor P2.6mm Led Screen 16.4x9.84ft Led Display 9

Multiple Installation Methods

Hanging and stacking installation solutions are both available to easily cope with the diverse requirements of the site environment.

Moreover, holes have been reserved for tying nylon ties to support the installation of square tube trusses, saving more labor and material costs.

Parameter

Item	P1.56	P1.953	P 2.5	P2.604	P2.976	P3.91	P4.81
Pixel pitch	P1.56mm	1.953mm	2.5mm	2.604mm	2.976mm	3.91mm	4.81mm
Cabinet size(mm)	500x500/500x1000	500x500/500x1000	500x500/500x1000	500x500/500x1000	500x500/500x1000	500x500/500x1000	500x500/500x1000
Cabinet resolution(dots)	*320320/320640*	*256256/256512*	*200200/200400*	*192192/192384*	*168168/168336*	*128128/128256*	*104104/104208*
Best view distance	≥1.5m	≥1.5m	≥2m	≥2m	≥2.5m	≥3m	≥4m
Pixel Density	409600dots/㎡	262144dots/㎡	160000dots/㎡	147456dots/㎡	112896dots/㎡	65410dots/㎡	43264dots/㎡
Brightness	Indoor ≥1000cd, Outdoor ≥4500cd
Cabinet Weight	500x500mm panel 8.5kg / 500x1000mm panel 13kg
Waterproof level	IP65
Refresh Rate	3840-7680Hz
Warranty	3 Years
Life Span	≧100000hours
Working Voltage	100-240V, 60Hz
Humidity-operating	10%～90%
Operating temperature	-30ºC~65ºC

APPLICATION

5x3m Led Video Wall System Indoor P2.6mm Led Screen 16.4x9.84ft Led Display 11

5x3m Led Video Wall System Indoor P2.6mm Led Screen 16.4x9.84ft Led Display 12

Get in touch with us

Just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs!
