LIGHTALL- Focus On LED Screen Field For More Than 10 Years.
Custom hd led video wall factory Manufacturer | LIGHTALL
Over the years, LIGHTALL has been offering customers high-quality products and efficient after-sales services with the aim of bringing unlimited benefits for them. hd led video wall LIGHTALL is a comprehensive manufacturer and supplier of high-quality products and one-stop service. We will, as always, actively provide prompt services such. For more details about our hd led video wall and other products, just let us know.During the development of LIGHTALL hd led video wall, the interface with the device issue is taken into consideration with the purpose of reducing the tiny air gaps between the component and the product.
Customize Pixel P1.2/P1.5/P1.8 Indoor hd video wall manufacturer LED Display LED Screen manufacturers - LIGHTALL
Unleash the power of customization with our In Stock LED Display Panel! With options to tailor-fit the specifications of P2.9, P3.9, and P4.8 Rental Indoor Led Display Event Outdoor Stage Led Screen for Concert according to your precise requirements, you can confidently create captivating visual experiences that leave a lasting impression. Elevate your LED module game today and set new standards in the industry!

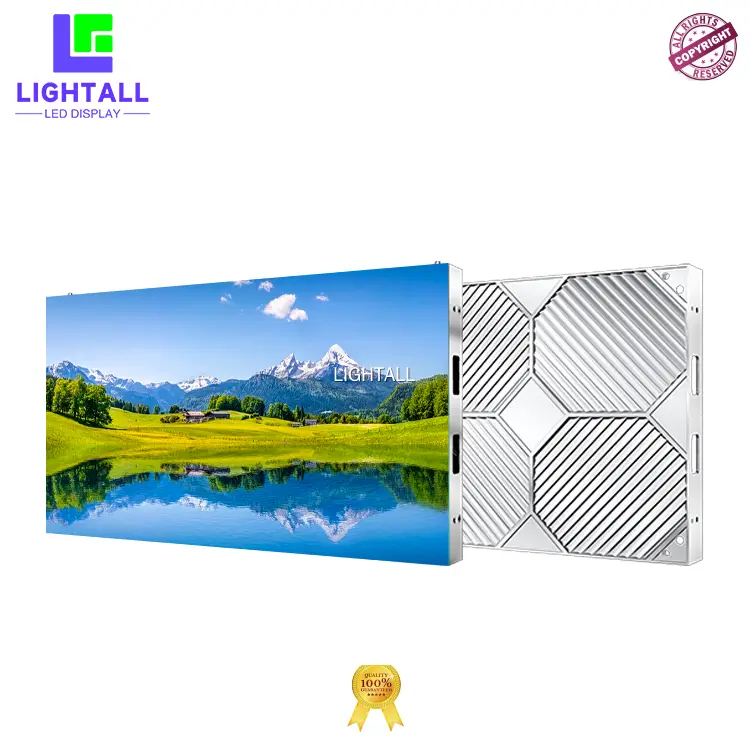

3rd generation Cabinet
● Full front access service
● Ultra-thin thickness (Only 48mm)
● Ultra-light weight(Only 7.0kg/Cabinet)
● Fast Installation
Treat the customer base
Keep improving to make products
● CNC high precision
● HDR Wide color gamut, support HDR
● High refresh rate
● Fanless design
● Multiple instllation ways is available
High gray scale levels and contrast ratios at low brightness levels.
Dynamic, energy saving
WIDE viewing angles
HIGH DYNAMIC RANGE(HDR)
Installation method
Product specifications
| Pixel Pitch | P0.78125 | P0.9375 | P1.25 | P1.5625 | P1.875 |
| LED Type | Mini 4-in-1 | Mini 4-in-1 | SMD1010 | SMD1010/1212 | SMD1010/ SMD1515 |
| Physical Density (dots/㎡) | 1638400 | 1137778 | 640000 | 409600 | 284444 |
| Module Resolution | 192 x 216 | 320X 180 | 240X 135 | 192X 108 | 160X90 |
| Module Size (WxH) | 150X 168.75 | 300X 168.75 | 300X 168.75 | 300X 168.75 | 300X 168.75 |
| Cabinet Size(mm) | 600X337.5X48 | 600X337.5X48 | 600X337.5X48 | 600X337.5X48 | 600X337.5X48 |
| Cabinet Resolution | 768X512 | 640X360 | 480X270 | 384X216 | 320X 180 |
| Module QTY /Cabinet (WxH) | 4X2 | 2X 2 | 2X2 | 2X2 | 2X2 |
| Drive Mode | Static, 1/48 Scan | Static, 1/46 Scan | Static, 1/45 Scan | Static, 1/48 Scan | Static, 1/45 Scan |
| Cabinet Weight(kg) | 7.0 | ||||
| Maintenance Mode | Front access | ||||
| Cabinet Material | Die-casting Aluminum | ||||
| LED brightness correction | Yes | ||||
| Brightness | ≥600 | ||||
| Color Temperature(K) | 1000-18500 Adjustable | ||||
| Grey Level | 16 bit | ||||
| Viewing Angle(HM) | 170*/170° | ||||
| Brightness/Color Uniformity | ≥99.8% | ||||
| Contrast Ratio | 10000:1 | ||||
| Frame Frequency | 50/60 | ||||
| Refresh Rate (Hz) | 3840 | ||||
Max Power Consumption(W/m2) | 420 | ||||
| Average Power Consumption(W/m2) | 100 | ||||
| IP Grade | IP 31 | ||||
| Input Power | AC90-264V, 47-63 Hz | ||||
| Working Temperature/Humidity (°C/RH) | -20~60°C / 10%~85% | ||||
| Storage Temperature/Humidity (°C/RH)| | -20~60°C / 10%~85% | ||||
| Cert. | CCC/CE / RoHS/FCC /CB/ TUV / IEC | ||||
Established in 2013, Shenzhen Lightall Optoelectronic Technology Co. Ltd. Is a Professional LED Display Manufacturer, Who Is Integrated in R&d, Manufacture, Marketing and After-Sale Service.
