Quality New Generation of 640x480 series
✔ 640×480mm Size Cabinet, 320×160mm Module
✔ LED Module Without Bottom Shell
✔ Hard Connection with Cable-free Design
✔ LED Module Without Bottom Shell
✔ Hard Connection with Cable-free Design
✔ Fix Properly with Screws
✔ Soft Connection
✔ SMD 3 in 1 LED Encapsulation Technology
✔ Frontal Service Design for Easy Installation
✔ CE, RoHS, FCC Approved
✔ Soft Connection
✔ SMD 3 in 1 LED Encapsulation Technology
✔ Frontal Service Design for Easy Installation
✔ CE, RoHS, FCC Approved
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

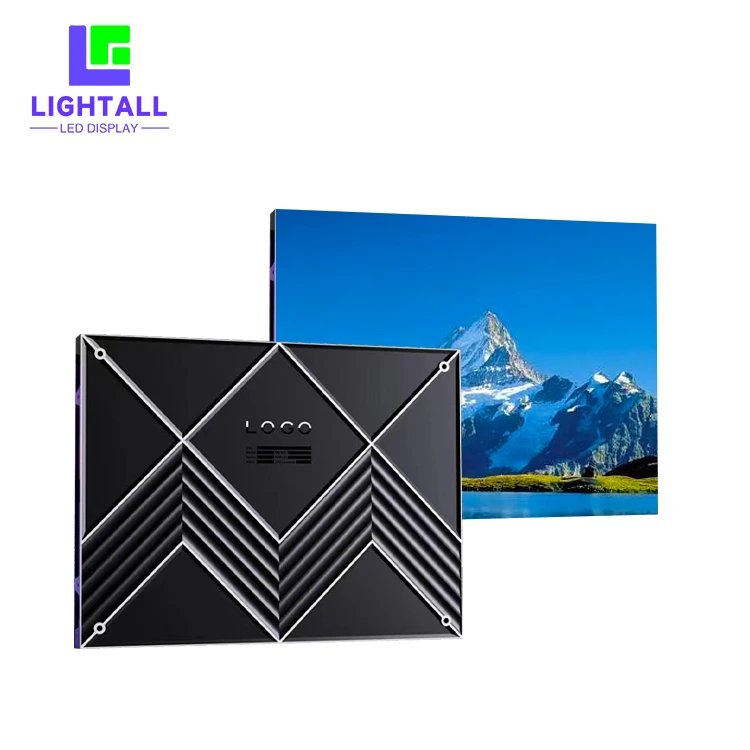

lndoor High-definition LED Display
A kind of LED display that can be installed on the wall, and the module, power supply and system cards can be fully maintained from the front.
Product Specifications
Cabinet size: 640*480*49mm
16:9 Golden Ratio
FHD/4K Pixel to Pixel Resolutions
Cable-free connection
Main advantages of the new Product
1 Hard connection with HUB Board, easy and fast for installation
2 Full front maintenance design, easy and convenient for maintenance
3 Ultra thin and light
2 Full front maintenance design, easy and convenient for maintenance
3 Ultra thin and light
4 Ultra high quality images with high resolution; high refresh rate and high contrast
Parameters
| Model | P1.2 | P1.5 | P1.6 | P1.86 | P2.0 | P2.5 | P3.07 |
| Pixel pitch | 1.25mm | 1.53mm | 1.667mm | 1.86mm | 2mm | 2.5mm | 3.076mm |
| Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Module resolution | 256x128 | 208x104 | 192x96 | 172x86 | 160x80 | 128x64 | 104x52 |
| Physical density | 640000 dots/㎡ | 422754 dots/㎡ | 359856 dots/㎡ | 289053 dots/㎡ | 250000 dots/㎡ | 160000 dots/㎡ | 105688 dots/㎡ |
| LED type | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Cabinet size | 640*480*49mm | 640*480*49mm | 640*480*49mm | 640*480*49mm | 640*480*49mm | 640*480*49mm | 640*480*49mm |
| Cabinet resolution | 512*384 | 416*312 | 384*288 | 344*258 | 320*240 | 256*192 | 208*156 |
| Cabinet weight | 7kgs | 7kgs | 7kgs | 7kgs | 7kgs | 7kgs | 7kgs |
| Cabinet material |
Die casting aluminum |
Die casting aluminum |
Die casting aluminum |
Die casting aluminum |
Die casting aluminum |
Die casting aluminum |
Die casting aluminum |
| Maintenance way | Front | Front | Front | Front | Front | Front | Front |
|
Best viewing distance |
1m | 1.5m | 1.6m | 1.8m | 2m | 2.5m | 3m |
| Best viewing angle | H: 160%; V:160° | H: 160%; V:160° | H: 160%; V:160° | H: 160%; V:160° | H: 160%; V:160° | H: 160%; V:160° | H: 160%; V:160° |
|
Driving method (Constant Current) |
1/64 Scan | 1/52 Scan | 1/48 Scan | 1/43 Scan | 1/40 Scan | 1/32 Scan | 1/26 Scan |
| Video frame rate | 260 Hz | 260 Hz | 260 Hz | 260 Hz | 260 Hz | 260 Hz | 260 Hz |
| Refresh rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Brightness | 800nits | 800nits | 800nits | 800nits | 800nits | 800nits | 800nits |
| Grey Level | 12-16bit | 12-16bit | 12-16bit | 12-16bit | 12-16bit | 12-16bit | 12-16bit |
| Ingress protection | IP43 | IP43 | IP43 | IP43 | IP43 | IP43 | IP43 |
| Life Time | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours |
| The rate | <0.0002 | <0.0002 | <0.0002 | <0.0002 | <0.0002 | <0.0002 | <0.0002 |
