Over the years, LIGHTALL has been offering customers high-quality products and efficient after-sales services with the aim of bringing unlimited benefits for them. indoor led display panel We promise that we provide every customer with high-quality products including indoor led display panel and comprehensive services. If you want to know more details, we are glad to tell you.The production of LIGHTALL consists of two parts, making processing such as extrusion, die casting, and stamping, as well as the deep process such as drilling, milling, and welding.

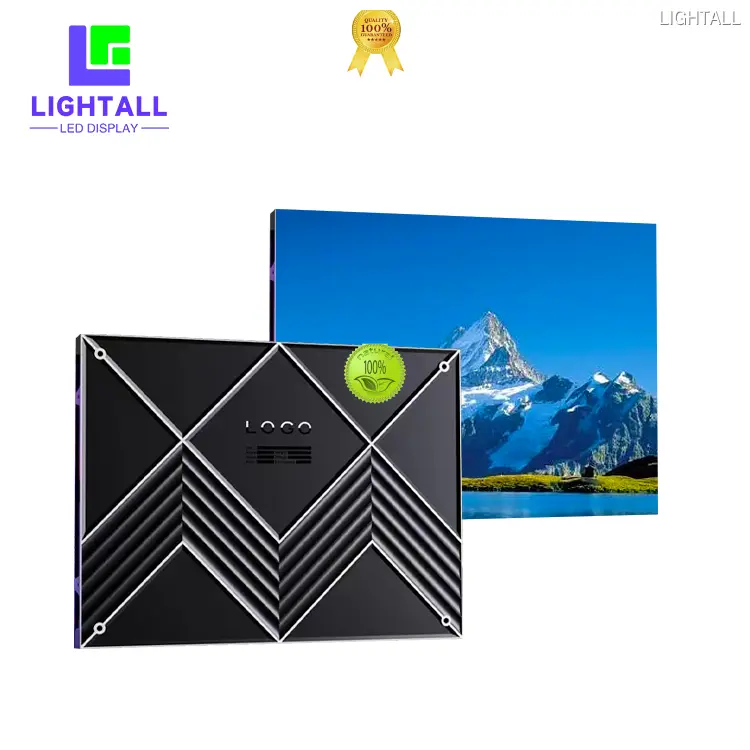

A kind of LED display that can be installed on the wall, and the module, power supply and
system cards can be fully maintained from the front.
WE ARE MORE PROFESSIONAL
Product Specifications
Cabinet size: 640*480*49mm
16:9 Golden Ratio
FHD/4K Pixel to Pixel Resolutions
1. Hard connection with HUB Board, easy
and fast for installation.
2. Ultra thin and light.
3. Ultra high quality images with high resolution
high refresh rate and high contrast.
Front Maintenance Design
*Vacuum tool is recommend for maintenance.
*LED Modules are pasted by strong magnet. It is complete front service.
Shareable HUB & power supply and same panel
design, easy to renew or upgrade your old screen
after long time usage，always keep your screenn
ewest technology and better display effects.
Seamless Splicing forc loser viewing
Fine die-casting aluminum cabinet, HD
Seamless Display, eliminate the visual seam,
and enjoy the big, complete display effect.
Support up to 10* arc splicing connection
Stacking installation
PERFECT DISPLAY PERFORMANCE
High brightness, high refresh rate,high gray scale
APPLICATION
Parameters
| Model | KP1.2 | KP1.5 | KP1.6 | KP1.8 | KP2.0 | KP2.5 | KP3.07 |
| Pixel pitch | 1.25mm | 1.53mm | 1.667mm | 1.68mm | 2mm | 2.5mm | 3.076mm |
| Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Module resolution | 256x128 | 208x104 | 192x96 | 172x86 | 160x80 | 128x64 | 104x52 |
| Physical density | 640000 dots/㎡ | 422754 dots/㎡ | m359856 dots/㎡ | 28905 dots/㎡ | 250000 dots/㎡ | 160000 dots/㎡ | 105688 dots/㎡ |
| LED type | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Cabinet size | 640*480*49mm | 640*480*49mm | 640*480*49mm | 640*480*49mm | 640*480*49mm | 640*480*49mm | 640*480*49mm |
| Cabinet resolution | 512*384 | 416*312 | 384*288 | 344*258 | 320*240 | 256*192 | 208156 |
| Cabinet weight | 7kgs | 7kgs | 7kgs | 7kgs | 7kgs | 7kgs | 7kgs |
| Cabinet material | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum |
| Maintenance way | Front | Front | Front | Front | Front | Front | Front |
Best viewing distance | 1m | 1.5m | 1.6m | 1.8m | 2m | 2.5m | 3m |
| Best viewing angle | H: 160%; V:160° | H: 160%; V:160° | H: 160%; V:160° | H: 160%; V:160° | H: 160%; V:160° | H: 160%; V:160° | H: 160%; V:160° |
Driving method (Constant Current) | 1/64 Scan | 1/52 Scan | 1/48 Scan | 1/43 Scan | 1/40 Scan | 1/32 Scan | 1/26 Scan |
| Video frame rate | 260 Hz | 260 Hz | 260 Hz | 260 Hz | 260 Hz | 260 Hz | 260 Hz |
| Refresh rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Brightness | 800nits | 800nits | 800nits | 800nits | 800nits | 800nits | 800nits |
| Grey Level | 12-16bit | 12-16bit | 12-16bit | 12-16bit | 12-16bit | 12-16bit | 12-16bit |
| Ingress protection | IP43 | IP43 | IP43 | IP43 | IP43 | IP43 | IP43 |
| Life Time | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours |
| The rate | <0.0002 | <0.0002 | <0.0002 | <0.0002 | <0.0002 | <0.0002 | <0.0002 |
