leading solutions outdoor led screen hire supplier | LIGHTALL

Always striving toward excellence, LIGHTALL has developed to be a market-driven and customer-oriented enterprise. We focus on strengthening the capabilities of scientific research and completing service businesses. We have set up a customer service department to better provide customers with prompt services including order tracking notice. outdoor led screen hire Having devoted a lot to product development and service quality improvement, we have established a high reputation in the markets. We promise to provide every customer throughout the world with prompt and professional service covering the pre-sales, sales, and after-sales services. No matter where you are or what business you are engaged in, we'd love to help you deal with any issue. If you want to know more details about our new product outdoor led screen hire or our company, feel free to contact us.The product is excellent in heat dissipation. Usually constructed from copper or aluminum which has a very high thermal conductivity, the product also features a high rate of heat transfer.

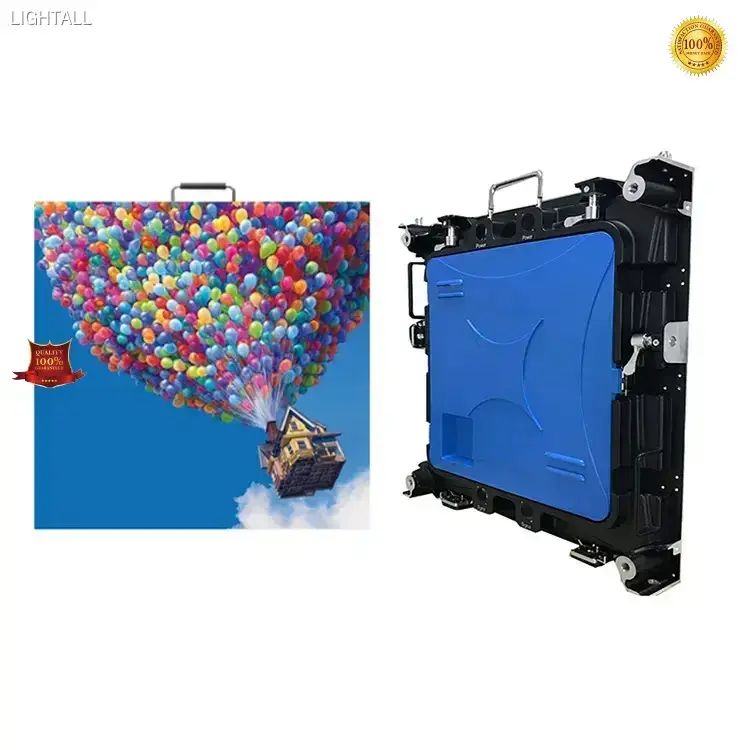

Panel Details

Panel measure: 512mm(W)*512mm(H)*85(T)mm

Panel thickness: Die casting aluminum cabinet, high strength, high tenacity,high precision, not easy to deform, thickness only for 85mm.

Weight: 8.5kg/cabinet,one person can carry,saving time and effort.

Flat: flatness error ≦0.2mm, effectively eliminate mosaic phenomenon.

Fast Installation: cabinet use fast lock, two seconds locked adjacent cabinets, air plug wiring connect more fast.

Easy maintenance: magnetic modular design, any position breakdown can easy to front service and install ation.

Compatibility design: indoor and outdoor use, allow various pixel pitch.

High gray, high refresh, gray 13 bit, refresh rate 3840Hz.

Perfect LED Display

Perfor mance

Corner Protection For LED Panel

There are four protectionequipments for LEDcabinet corners,

protectthe LED from damageduring transportationand installation

LED Cabinet Size

Haning & Stacking lnstallation

Oudoor Application

Indoor Application

Parameters

Products series	P2	P4	P8
Pixel pitch	2mm	4mm	8mm
Cabinet size	512x512x85mm	512x512x85mm	512x512x85mm
Cabinet resolution	256x256dots	128x128dots	64x64dots
Best view distance	≧2m	≧4m	≧8m
Pixel Density	250000dots/㎡	62500dots/㎡	15625dots/㎡
Best view distance	≧2m	≧4m	≧8m
Brightness	Indoor≧1200CD,Outdoor≧5500CD
Cabinet Weight	8.5kg
Waterproof level	Indoor IP43/Outdoor IP65
Refresh Rate	3840Hz
Warranty	3 Years
Life Span	≧100000hours

---
