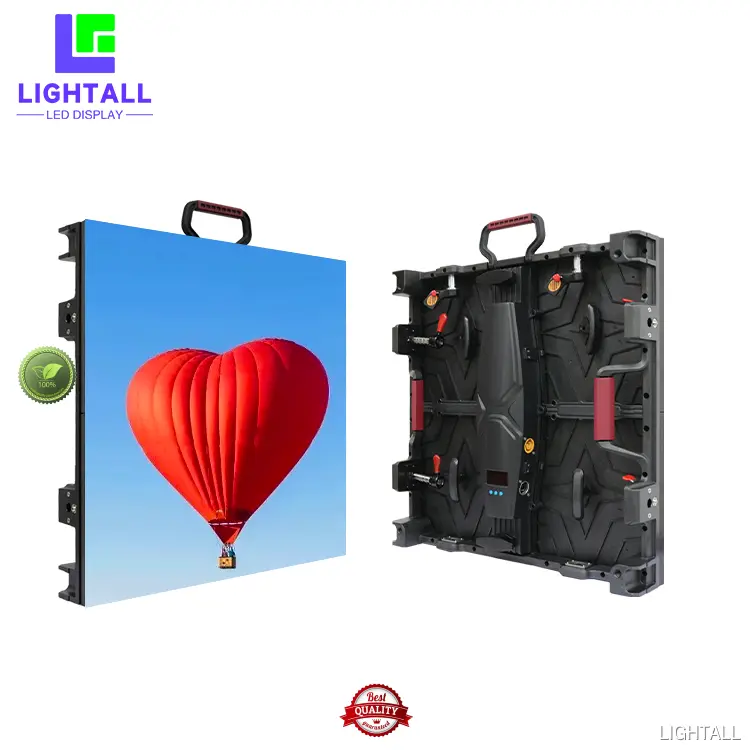

LIGHTALL | new-arrival 3d led screen outdoor factory
LIGHTALL has developed to be a professional manufacturer and reliable supplier of high-quality products. Throughout the whole production process, we strictly implement the ISO quality management system control. Since established, we always adhere to independent innovation, scientific management, and continuous improvement, and provide high-quality services to meet and even exceed customers' requirements. We guarantee our new product 3d led screen outdoor will bring you a lot of benefits. We are always standby to receive your inquiry. 3d led screen outdoor We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product 3d led screen outdoor or our company.It has the advantage of quick heat transfer capacity. The thermal interface material is applied to the base of the product so as to fill gaps and offer more dissipation paths for the heat.
CURVED | QUICK | SOLID
Adivancedl gluing technology,with a certain thickness and strength, anti-scratch,anti-skidding
WE ARE MORE PROFESSIONAL
Not only for indoor and outdoor event use, pitch 2.6mm LED panel is 1/16 scan with 7680Hz high refresh rate, high contrast ratio and wide color gamut, suitable for XR stage and vitual production studio. The LED panel can be spliced to 90° to meet the needs of different application.
Support Cuved lnstallation
Product Usage
Adjustable brigtness for indoor and ouldoor use Such as movie production, aviation show, experience paviion,exhibition of linearts,muscum of art, science museum
Front Maintenance Design
*Vacuum tool is recommend for maintenance.
*LED Modules are pasted by strong magnet. It is complete front service.
*Magnets module support front service. The panel back cover can be
opened from the back side for rear service purpose as well
PERFECT DISPLAY PERFORMANCE
High brightness, high refresh rate,high gray scale
STACKING AND HANGING
SYSTEM OPTIONAL
parameter
| Pixel Pitch | P1.95 | P2.315 | P2.604 |
| LED Type | SMD1515 | SMD1515 | SMD1515 |
| Physical Density(dots/m2) | 262144 | 186624 | 147456 |
| Module Resolution | 128×128 | 108×108 | 96×96 |
| Module Size (WxH) | 250×250 | 250×250 | 250×250 |
| cabinet Size | 500×500×84.5 | 500×500×84.5 | 500×500×84.5 |
| Cabinet Resolution | 256×256 | 216×216 | 192×192 |
| Module QTY /Cabinet (WxH) | 2×2 | 2×2 | 2×2 |
| Cabinet Weight(kg) | 8 | 8 | 8 |
| Maintenance Mode | Front/Back maintenance | Front/Back maintenance | Front/Back maintenance |
| cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Brightness | ≥1500 | ≥1500 | ≥1500 |
| Viewing Angle(H/V) | 160°/160° | 160°/160° | 160°/160° |
| The best viewing distance | 2-50m | 3-50m | 3-50m |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 |
| Frame Frequency | 60/120 | 60/120 | 60/120 |
| Drive Mode | Static,1/8 Scan | Static,1/9 Scan | Static,1/8 Scan |
| Refresh Rate(Hz) | 7680 | 7680 | 7680 |
| Grey Level | 16 bit | 16 bit | 16 bit |
| lP Grade | IP 31 | IP 31 | IP 31 |
| Max Power Consumption(W/m2) | 920 | 920 | 920 |
| Average Power Consumption(W/m2) | 200-300 | 200-300 | 200-300 |
| lnput Power | AC90-264V,47-63Hz | ||
| Working Temperature/Humidity(°C/RH) | -20~60°C / 10%~85% | ||
| Storage Temperature/Humidity(C/RH) | -20~60°C / 10%~85% | ||
| Cert. | CCC / CE/ RoHS / FCC / CB /TUV / IEC | ||
