Product Detail

LTH-E Series Features

● Energy Saving with common cathode

● Flame Resistance

● IP68 Protection Level

● High refresh and high brightness(≥10,000NITS)

● All Aluminum Module Design

● Front and Rear Maintenance

● Working Temperature up to 70°C

● High Humidity Salt proof

LTH-E Series Advantages

Low Power Consumption

and Energy Saving

IP68 Protection Level

Fully closed die-casting aluminum back shell, protect the components one by one, make the screen bodyresistant tohigh temperature, low temperature, corrosion, strong environmental adaptability, outdoor all-weather work, ultra stableand high protection.

The aluminum back shell adopts the fully closed design, equipped with a three in one waterproof plug,and the lamp footadopts the double liquid glue flling technology, with full waterproof IP68.

Various Sizes Available

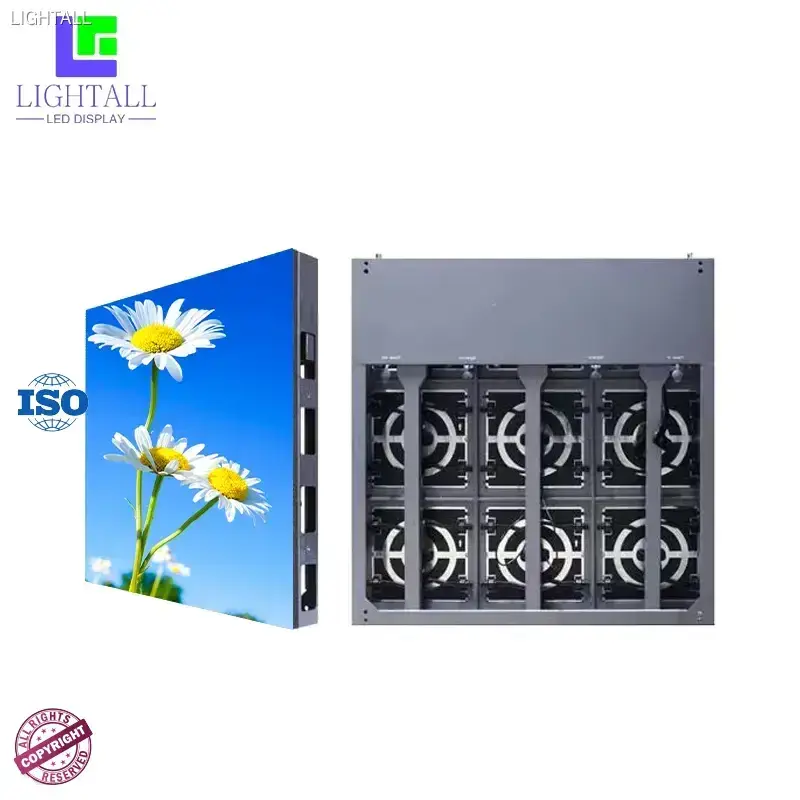

Aluminum cabinet body

Use aluminum. It's lighter, more

environmentally and more stable

Rear maintenance

Parameters

Parameters

LED	LED type		Wavelength (nm)	Brightness (mcd)	Test Condition
Red(R)	SMD2727		620-625nm	440-572mcd	25°C,20mA
Green ( G)			521.5-524.5nm	1050-1365mcd	25°C,20mA
Blue (B)			465.5-468.5nm	252-327mcd	25℃,20mA
lteme	Parameter	Parameter	Parameter
Parameter:	8mm	6.67mm	10mm
Pixe1 Configuration	1R1G1B	1R1G1B	1R1G1B
LED Lamp	Full color	Full color	Full color
Densitye	15625 Dot/sqm	22477 Dot/sqm	10000 Dot/sqm
Module Sizee	320*320mm	320*320mm	320*320mm
Module Pixel	32*32-2304 Pixel	48*48-2304 Pixel	32*32-2304 Pixel
Module Thicknesse	17mm	17mm	17mm
Module Weight	1550g	1550g	1550g
Module Power	≤70.98w	≤70.98w	≤70.98w
Drive Voltagee	DC4.2V	DC4.2V	DC4.2V
Drive Current	16.9A	16.9A	16.9A
Module Porte	HUB-75	HUB-75	HUB-75
Screen Parameter
Item	Parameter
Standard Cabinet	960x960mm
Brightness/Adjustment	5500cd/m2 adjustable, Level 16-Automatic / Leve1 100-Manua1operation
View Angle	≥140°( Horizonta1), ≥120° ( vertica1)
Best View Distance	10-100 M
Grey Scale	Within 65536 Step
Color Temperature	11944K
Frame Frequency	≥60Hz
Refresh Frequency	≥780Hz
Input SignalContro1 Method	Video, VGA/Computer control, Synchronous Video, Rea1-timedisplaye
Scan Mode	1/6 Scan
Drive IC	SUM2028
Module Qty/sqm	9.7
Display Color	16777216 colors
Continuous Working Time	>24 《 Hrs )
Screen Lifespan	>100.000 ( Hrs)
MTBF	>5000 ( Hrs )
Max. power consumption	690w/m2
Ave. power consumption	230w/m2
Out of control pixel rate	<3/10,000(discrete distribution)
Control Distance	100M(Ethernet)500M( Multi-fiber )10KM( Sigle-fiber )
Flatness	Screen Surface<0.5mm,Pixe1 Pitch≤0.3mm
Operation Temperature	-10C~-+50C
Operation Humidity	10%~98%RH
Storage Temperature	-40°C+85°C
Software Connection	Standard Computer Connection,Compatiable With Windows、Unix、Novell
Protection System	Over-temperature/Over-1oad/power/Image compensation/Nonlinearcorrection
Working Voltage	200~-240 v
Dielectric Strength	50HZ/1500v《AC RMS)/1min
Temperature Rise	Metal≤40K, Insulation≤65K,After Heat Balance
IP Degree	IP67
Computer display mode	1024*768
Media Player	LED Professiona1 Media Player

---
