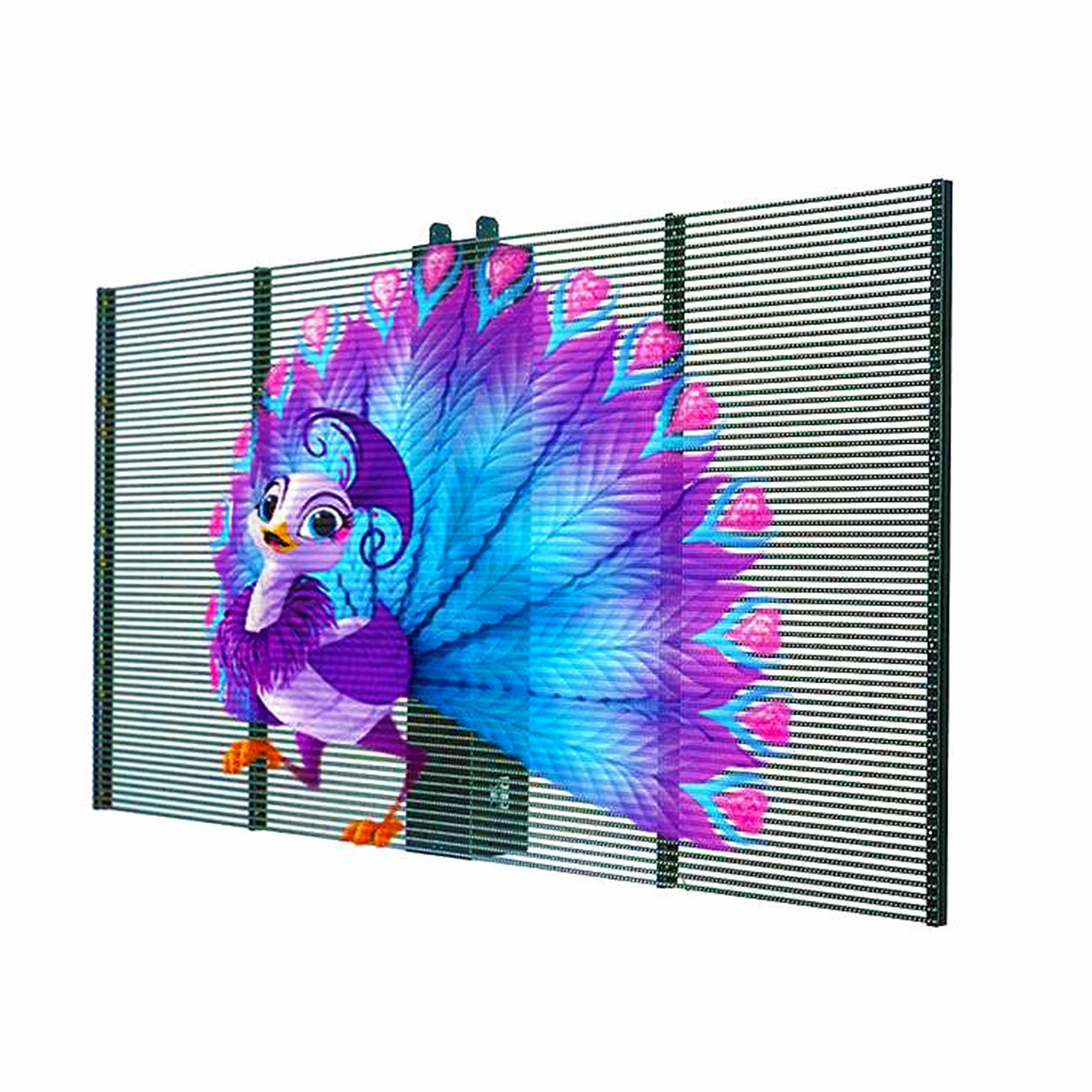

Best Clear Transparent LED Display Video TV Wall P3.91mm Interior LED Signage For Business - LIGHTALL
Clear Transparent LED Display compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.LIGHTALL summarizes the defects of past products, and continuously improves them. The specifications of Clear Transparent LED Display can be customized according to your needs.
Product Introduction
Transparent LED screen essential parts are : LED modules, receiving cards, HUB Boards, power supplies, profile materials, power cables, signal cables, screws, etc. Transparent LED screen is completed by several modular cabinets or modules, easily to splice into a big transparent screen.
Indoor Transparent LED Screen Series
Transparent Display/ No change for the outlook of buildings/ Fast Installation
Indoor Transparent LED Screen Series
Product advantages
Fast Installation
Modular design, easy to assemble and install the cabinet
Easy Maintenance
Simple operation, modules can be replaced individually,lower maintenance costs.
High Stability
Brand new structure meets the requirements of hanging and vertical installation,indoor and outdooor use.
Diversified Control Ways
Remote group control, easy to command one or more LED screens.
Product advantages
Slim and light
Cabinet thickness is 7cm,product weight is 7kg per sqm.
High Transparency
High Tranparency brings little influence on the dayli ghting of glass curtain wall.
Modular Design
Brand new structure,meeting the requirments of haning, vertical installation, indoor and outdoor use.
Wide Viewing Angle
160°viewing angle, could wactch LED screen from different positions
Product advantages
Fast Installation
Modular design is easy for cabinets assembling and installation.
Easy Maintenance
Simple operation, modules can be replaced individually,lower maintenance costs.
High Stability
Brand new structure,meeting the requirments of haning, vertical installation, indoor and outdoor use.
Diversified Control Ways
Remote group control, easy to command one or more LED screens.
Installation Ways
Case Presentation
Indoor Transparent LED Screen Series
|
Product Type |
P2.8-5.6 |
P2.976-6.25 |
P3.91-7.81 |
|
LED Lamp |
SMD 2020/1921 |
SMD 2020/1921 |
SMD 2020/1921 |
|
Pixel Pitch |
2.8*5.6mm |
2.976*6.25mm |
3.91*7.81mm |
| Unit Size | 1000*500mm |
1000*500mm |
1000*500mm |
| Resolution |
352*176 dots/㎡ |
336*160 dots/㎡ |
256*128 dots/㎡ |
| Frame-changing frequency |
60fps |
60fps |
60fps |
| Refresh Rate | ＞1920HZ |
＞1920HZ |
＞1920HZ |
| Square Meter Pixel Resolutio | 61952 dots/㎡ | 53760 dots/㎡ |
32768 dots/㎡ |
| Gray Scale |
16bit |
16bit |
16bit |
| Transparency |
≥35％ |
≥60％ |
≥80％ |
| Brightness | 1000-4500cd/㎡ |
1000-3000cd/㎡ |
1000-4500cd/㎡ |
| Scren Weight |
7kg/㎡ |
7kg/㎡ |
7kg/㎡ |
| Power Consumption (Maximum/Average) |
800/280W/㎡ |
800/280W/㎡ |
800/280W/㎡ |
| Input Voltage |
AC 86-264V/60Hz |
AC 86-264V/60Hz |
AC 86-264V/60Hz |
| Viewing Angle |
level 120°，perpendicular/vertical 120° |
level 120°，perpendicular/vertical 120° |
level 120°，perpendicular/vertical 120° |
| Protection Rate |
IP30 |
IP30 |
IP30 |
|
Best Watching Distance |
≥3m |
≥3m |
≥4m |
