LIGHTALL- Focus On LED Screen Field For More Than 10 Years.

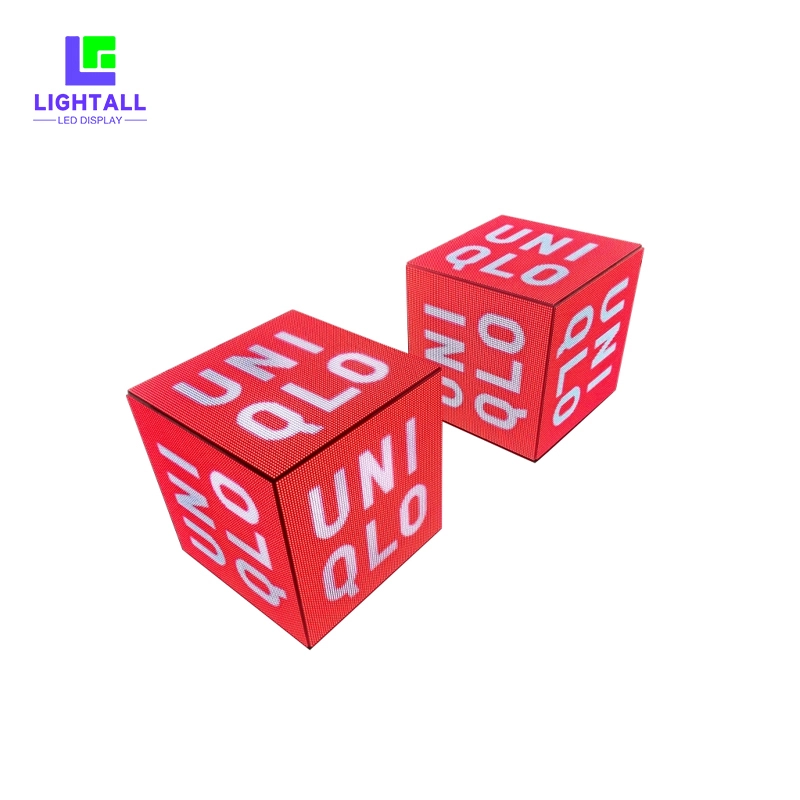

Indoor LED Cubes Display
✔ 90 installation
✔ Column Installation
✔ IP65 Waterproof Design
✔ 360-degree viewing angle playback
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
90° Corner lnstallation
Four panel structures
For more right-angle splicing projects
For more right-angle splicing projects

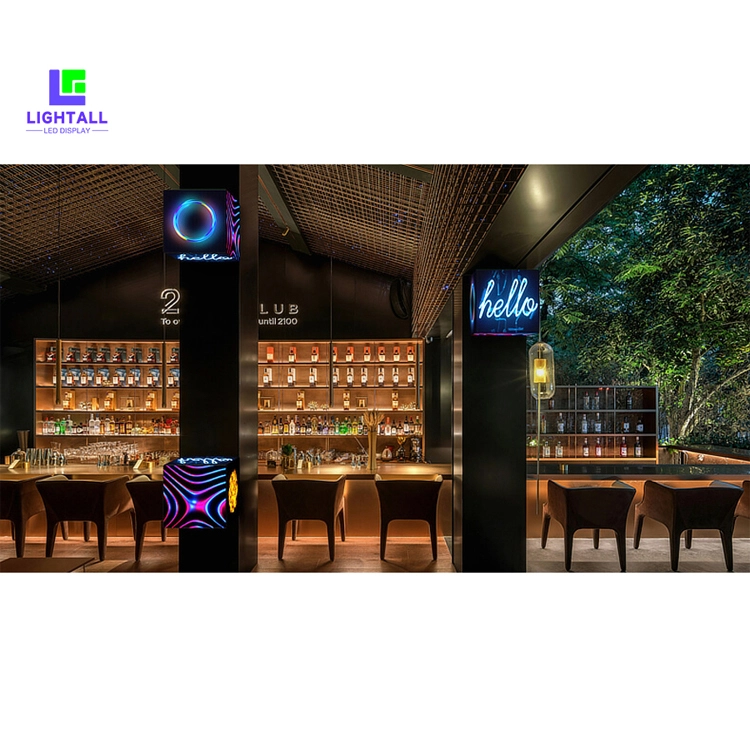

Column Installation
Fixed and Rental LED Display
For more column design in stage, shopping mall, enterprise, etc.
High Refresh Rate & High Grayscale
Air Suction Front Maintenance Tool
Specification
| Item | P3.91 | Chip | Epstar |
| Chip size | Red 9 mil, Green 12. Blue 12mil | Light type | SMD |
| Pixel Pitch | 3.91mm | Size | 500mm*500mm |
| Resolution | 128*128 pixel | Density of pixel | 65410 pixels/sqm |
| Pixel configuration | 1R1G1B | Red wavelength | 625±2nm |
| Green wavelength | 525±2nm | Blue wavelength | 470±2nm |
| Colors | 16777216 | Best viewing distance | ≥3m |
| viewing angle | 120°/90° | Maximum power consumption | 20W |
| Brightness | >1200 cd/sqm | Gray scale | 16bits per color |
| Color temperature | 6500k | Control method | Synchronization or Asynchronization |
| Driving method | 1/16 scanning | Frame frequency | 60Hz |
| Refresh frequency | ≥600Hz | Working Voltage | DC5V |
| IP grade | IP54 | Warranty | 3 years |
| Life Span | 100,000hours | Certificate | CCC, FCC, ROHOS, CE |
