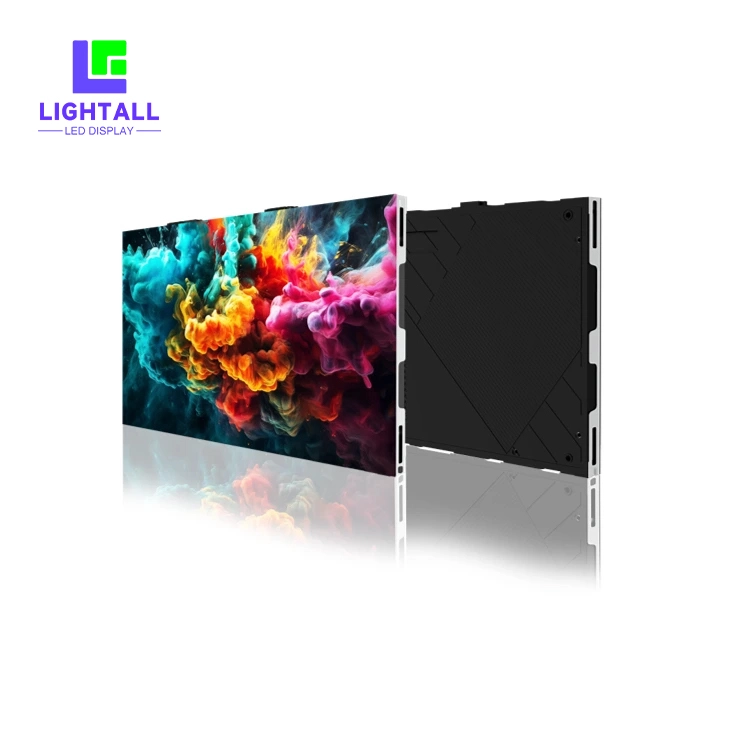

COB Ultrathin SERIES-LIGHTALL
✔ 600×337.5*27.5mm Size Cabinet
✔ 3840HZ High Refresh Rate
✔ Frontal Service Design for Easy Installation
✔ High-end Indoor LED Display
✔ CE, CCC, FCC Approved
✔ 3840HZ High Refresh Rate
✔ Frontal Service Design for Easy Installation
✔ High-end Indoor LED Display
✔ CE, CCC, FCC Approved
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Lightweight and Thin
Portable and good stability with a weight of 4.5kg and thickness of 27.5mm. The feature of lightweight makes the LED display easy to carry,
transport and install, saving a good amount of money on your labor costs.
transport and install, saving a good amount of money on your labor costs.
Front maintenance
Can be applied to different installation environments
Dual card dual electric
Configurable dual backup version to ensure uninterrupted power supply。
Signal not lost, more stable and reliable。
Seamless Splicing
Die-casting Alumium Cabinet sctructure with CNC high-precision processing (Flatness of Cabinet≤0.1mm)
Screwless design for faster and more secure installation Super silent fanless design
Installation mode
Wall mounted/embedded installation/lifting
Floor mounted/curved mounted
Parameter
| Pixel Pitch | P0.78125 | P0.9375 | P1.25 | P1.5625 | P1.875 | P2.5 |
|---|---|---|---|---|---|---|
| LED Type | Mini4-in-1 | Mini4-in-1 | SMD1010 | SMD1010/1212 | SMD1010/1515 | SMD1515 |
| Physical density(Dot/sqm) | 1638400 | 1137778 | 640000 | 409600 | 284444 | 160000 |
| Module resolution | 192X216 | 320X180 | 240X135 | 192X108 | 160X90 | 160X135 |
| Module size(mm) | 150X168.75 | 300X168.75 | 300X168.75 | 300X168.75 | 300X168.75 | 300X168.75 |
| Panel Resolution | 768X432 | 640X360 | 480X270 | 384X216 | 320X180 | 240X135 |
| Module QTY(WXH) | 4X2 | 2X2 | 2X2 | 2X2 | 2X2 | 4X1 |
| Drive mode | 1/48 scan | 1/46 scan | 1/45 scan | 1/48 scan | 1/45 scan | 1/30 scan |
| Panel Dimension (WXHXD/mm) | 600X337.5X27.5 | |||||
| Panel weight(kg) | 4.5 | |||||
| Maintenance Mode | Front maintenance | |||||
| Cabinet Material | Die-casting aluminum | |||||
| Brightness Carlibration | Have | |||||
| Brightness(Nits) | ≥600 | |||||
| Color temperature(K) | 1000-18500 Optional | |||||
| Viewing angle(V/H) | 170°/170° | |||||
| Brightness/Color uniformity | ≥99.8% | |||||
| Contrast ratio | 10000 : 1 | |||||
| Frame frequency | 50/60 | |||||
| Grey level | 16bit | |||||
| Refresh rate(Hz) | 3840 | |||||
| Max. power consumption(W/sqm) | 350 | |||||
| Avg. power consumption(W/sqm) | 100 | |||||
| Protection level | IP31 | |||||
| Power input | AC90-264V,47-63Hz | |||||
| Wroking temperature/humidity(℃/RH) | -20~60℃/10%~85% | |||||
| Storage temperature/humidity(℃/RH) | -20~60℃/10%~85% | |||||
| Certificatiom | CCC/CE/RoHS/FCC/CB/TUV/IEC | |||||
