LIGHTALL- Focus On LED Screen Field For More Than 13 Years.

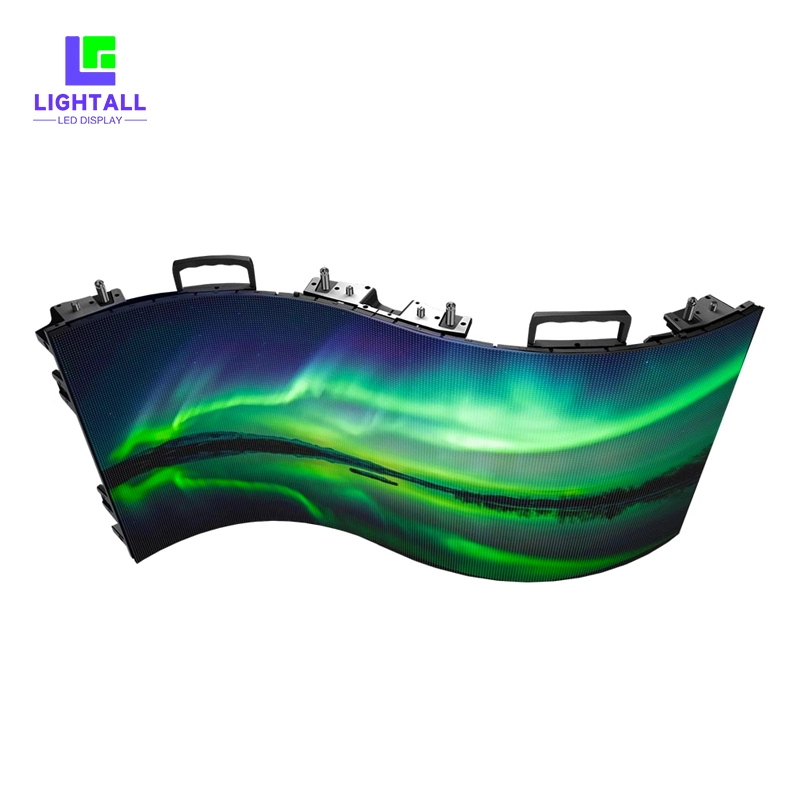

Customized P3.91 P4 P4.81 Curved LED Screen 1

Customized P3.91 P4 P4.81 Curved LED Screen 2

Customized P3.91 P4 P4.81 Curved LED Screen 3

Customized P3.91 P4 P4.81 Curved LED Screen 4

Customized P3.91 P4 P4.81 Curved LED Screen 5

Customized P3.91 P4 P4.81 Curved LED Screen 6

Customized P3.91 P4 P4.81 Curved LED Screen

Name: Customized P3.91 P4 P4.81 Curved LED Screen
Uploaded: 2025-01-16T20:11:40+08:00
Description: LIGHTALL Customized P3.91 P4 P4.81 Curved LED Screen Connection Indoor Small Pixel Pitch Curved LED Video Wall Screen Display manufacturers From China | LIGHTALL

✔ Integrated Power Supply, Receiving Card, and HUB Board

✔ Hard Connection for Easier Installation

✔ Magnetic Installation

✔ Refresh Rate ≥3840Hz, Frame Rate: 50 & 60Hz

✔ Built-in Temperature and Voltage Monitoring

Inquiry

Write a Review

lndoor/Outdoor Full Color Curved LED Display

High precision cast aluminum cabinet ultra-thin and light weight
500 x 500 < 7.5KG/cabinet with a thickness of only 85.5mm

Customized P3.91 P4 P4.81 Curved LED Screen 7

Perfect Structure

LIGHTALL has the domestic top design team, and the design innovation has its own unique philosophy, with a number of core technologies.
Innovative structural design, and avant-garde body lines, give you an extraordinary experience.

Customized P3.91 P4 P4.81 Curved LED Screen 8

Cabinet detail

1. Fast-lock and position pin design,easy and quick installation
2. The radian can be adjusted, allowing for various creative designs.
3. Corner protection design, protecting the modules during transportation and disassembly

Customized P3.91 P4 P4.81 Curved LED Screen 9

The adjustable angle of the LED box is 15° for the outer arc and 15° for the inner arc,
Supports 90° right angle LED display installation to meet some special buildings and applications.
which can meet the lighting needs of different scenes and provide more flexible and personalized needs.

Customized P3.91 P4 P4.81 Curved LED Screen 10

Multiple Installation Methods

Hanging and stacking installation solutions are both available to easily cope with the diverse requirements of the site environment.

Moreover, holes have been reserved for tying nylon ties to support the installation of square tube trusses, saving more labor and material costs.

Customized P3.91 P4 P4.81 Curved LED Screen 11

Parameter

Item	Parameter
Model Number	KP-P3.91-16s
Module size	*250mm250mm**
Physical pitch	3.91mm
Physical Density	65410 dots/㎡
Pixelconfiguration	1R1G1B
Package mode	SMD 3IN1-1921
Module Resolution	*64dots(W)64dots(H)**
Max Power	32W
Module thickness	15mm
Module Weight	180g
Drive type	Constant drive
Scan mode	1/16scan
Port type	Port type HUB75
Best Viewing Angle	H:120°;V:120°
Recommended Viewing Distance	≥4m
Rate Refresh	3840Hz
Bending Arc	Center bend arc≤120
Input Voltage	110-220V;AC±10%
Operating Temperature/Humidity	-20℃~+60℃
Average Power Consumption	260w/㎡
Max. Power Consumption	800w/㎡
Life Time	>100000 hours
The Rate	<0.0001

APPLICATION

Customized P3.91 P4 P4.81 Curved LED Screen 12

Customized P3.91 P4 P4.81 Curved LED Screen 13
